Thanks for your assistance Right Hand Drive.



lol...Charming CC....Now, we're not getting unfriendly, are we?



I'm never unfriendly. Take Bimmer for instance; I was friendly with him right up until he ran to the end of his rope.

PS: Check to see how much rope you have left...



I did check the voltage with the key on, engine off and in each gear selector.

I pulled the NSS off the transmission and opened it up. It was funky to say the least. One of my rotating arm contacts was stuck in. I cleaned it up really well, used emory cloth on the contacts, and applied a new small amount of dielectric grease in the NSS. Now my backup lights work perfectly. I assume that will fix that issue completely.

I also stopped at the parts store and pulled the codes again. I got P1698 (No CCD Message from TCM), P0700 (Transmission Control System MIL Request), P0758 (Shift Solenoid B Electrical), and P0705 (Transmission Range Sensor Circuit PRNDL Input). I cleared the codes and they came back on my way to the shop (before I cleaned the NSS). I didn't have a chance to stop and clear/recheck the codes when I left my shop as the wife was in a hurry to get to the grocery. I assume cleaning the NSS fixed the P0705 code.

I ordered the shift solenoids from O'Reilly. They had a kit that has both A & B solenoids in it. They will be here on Wednesday. I'm going to drop the pan and change them out then. Hopefully that fixes my shifting issue.



Now that's funny right there.



Good work. The solenoids should do the job. But check the resistance on solenoid B at the solenoid before replacing it to make sure its the solenoid at fault and not the circuit wiring.



I will. I'd hate to spend the $165 on the solenoids and not need them because it is a wiring problem.

I will follow up on Wednesday when I get the pan off.

Thanks for the help.



Aaah, good mate. For a split second I thought I might have grieved you with my post in the style of, let's say, your kinda flavor...
And that would be a shame, because I like you. Don't know why, but I do, lol.

Oh,and that rope: mate no worries, I practically máke the rope...it takes a little bit more than a tickle to get me to the end of it
Comes with my daily (and nightly) job, to deal with all kinds of 'personalities'....but I guess the toilet lady can say the same

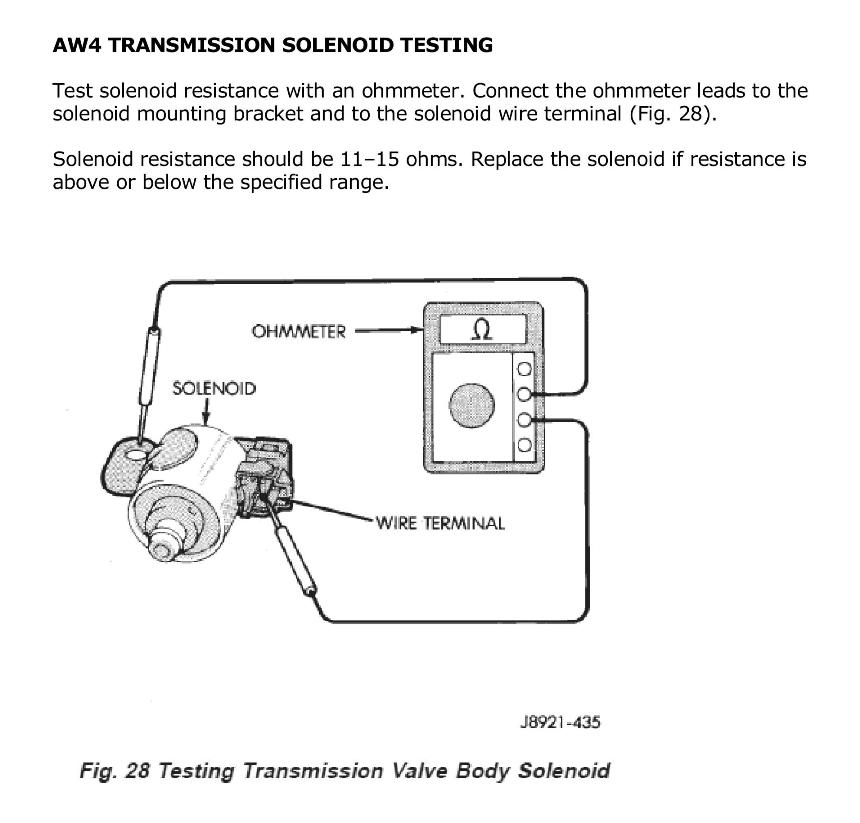

So as not to leave any stone unturned, here's the FSM procedure for checking a solenoid:



Thanks. I'll have the pan off on Wednesday to check/replace the A & B solenoids. The kit I ordered comes with 2 so if 1 is bad I'll replace them both.



go for it and let us know how it went



Would the bad shift B solenoid cause the torque converter not to lock?

I drove the Jeep out of town today and got it up to speed and the torque converter never locked. Any idea what would cause this?



Solenoid C is the TC lock-up solenoid.

TCM connector pin cav 11.

Did you replace the other two solenoids?



I have not replaced the other 2 solenoids yet. I'm waiting on all 3 of them to get here.

I was just curious if the bad shift B solenoid would cause the torque converter to not lock.



There are occasions where the switch contacts in the brake lamp switch (for the TCM) are defective and prevent TC lock-up.

You can check the switch contacts from the TCM connector. Refer to previous pinout of the connector and diagram below.

Using an Ohmmeter, probe pin cav 23 on the TCM connector (+) and (-) to a good chassis ground (instrument panel).

You should see continuity (5 Ohm max), depress the brake pedal, and now you should see a clean Open in the circuit, release the brake pedal and the circuit should return to continuity.

If this doesn't happen, replace the brake lamp switch.

Switch circuit:



I tested the brake switch to the TCM plug and didn't get the results that it should have gotten. I replaced the switch and still the torque converter will not lock.

I drove to town to have the codes read and cleared. I got a Shift Solenoid B code like before. I cleared the codes and left. As I was driving down the road, it locked for about 30 feet then it unlocked and set a CEL for the "Shift Solenoid B". Now the only time I can get it to lock is if I stop, put the transmission in P, turn the Jeep off, start the Jeep, shift up through the gears to D. Then it will lock again for about 30-40 feet and unlock.
