Antenna wire hook up

Thread Tools

Search this Thread

Old Dec 12, 2012 | 08:33 AM
  #1
Cherokeekid4x4's Avatar
Thread Starter
CF Veteran

Joined: Feb 2012
Posts: 2,652
Likes: 2
From: Kansas
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Default Antenna wire hook up

Ever since I got my jeep. The radio has barely ever worked and I figured out its the antenna wire itself, is that easy to change? Any tips?
Reply
Old Dec 12, 2012 | 09:11 AM
  #2
rand4x4's Avatar
Member

Joined: Feb 2011
Posts: 201
Likes: 0
From: Corpus Christi
Year: 1995
Model: Cherokee
Default

You know there is a bottom connection,The plastic side bottom on passanger side by where the feet would be. Unscrew it and you will see cable. disconnect and there will be a spring inside. Take it out and put back together and see how it works.
Reply
Old Dec 12, 2012 | 09:14 AM
  #3
Cherokeekid4x4's Avatar
Thread Starter
CF Veteran

Joined: Feb 2012
Posts: 2,652
Likes: 2
From: Kansas
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Default

Originally Posted by rand4x4
You know there is a bottom connection,The plastic side bottom on passanger side by where the feet would be. Unscrew it and you will see cable. disconnect and there will be a spring inside. Take it out and put back together and see how it works.
The wire that hooked into the radio is disconnected. Right now I just stuck in aware inside of it. So I'd have to put that back together and I hate taking that dash apart it feels like its gonna break every time so I wanna just do this once. But I will try it if no one can tell me just how to replace the whole wire.
Reply
Old Dec 12, 2012 | 02:05 PM
  #4
Firestorm500's Avatar
CF Veteran

Joined: Apr 2009
Posts: 4,734
Likes: 12
Year: 2015, 2012
Model: Grand Cherokee (WK2)
Engine: 3.6L
Default

Either way, you're going to have to get to the backside of the radio.

The wire comes with the antenna. I don't think it is available separately.
Reply
Old Dec 12, 2012 | 03:33 PM
  #5
Cherokeekid4x4's Avatar
Thread Starter
CF Veteran

Joined: Feb 2012
Posts: 2,652
Likes: 2
From: Kansas
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Default

Originally Posted by Firestorm500
Either way, you're going to have to get to the backside of the radio.

The wire comes with the antenna. I don't think it is available separately.
They do. I picked up something that I will try. I'll post a pic of it
Reply
Old Dec 12, 2012 | 04:28 PM
  #6
Cherokeekid4x4's Avatar
Thread Starter
CF Veteran

Joined: Feb 2012
Posts: 2,652
Likes: 2
From: Kansas
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Default

Anyone know how to change the wire
Reply
Old Dec 12, 2012 | 04:30 PM
  #7
Diesel's Avatar
CF Veteran

Joined: Aug 2010
Posts: 2,112
Likes: 4
From: Wantage, NJ
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

Run it?

What exactly are you asking, having trouble near the quarter panel?
Reply
Old Dec 12, 2012 | 04:37 PM
  #8
Cherokeekid4x4's Avatar
Thread Starter
CF Veteran

Joined: Feb 2012
Posts: 2,652
Likes: 2
From: Kansas
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Default

Originally Posted by Diesel
Run it?

What exactly are you asking, having trouble near the quarter panel?
The whole thing. from where the wire goes into the radio. its missing the hook in thing or something. its just a black wire with copper wire surronding a plastic tube and i just need to replace it all. the antenna, wire. just it all so how do i do that! i keep searching but cant even find a freaking wire to even buy let alone how to replace one.
Reply
Old Dec 12, 2012 | 04:38 PM
  #9
kennzz05's Avatar
Senior Member

Joined: Jul 2012
Posts: 860
Likes: 0
From: middleburg fl
Year: 1998
Model: Cherokee
Engine: 4.0
Default

more info, what exactly are you asking?
theres two pieces one from antenna to inside the cabin, than from there to the radio, seperate the wire found down at the floor on passenger side kick panel and fish thru dash to radio
Reply
Old Dec 12, 2012 | 04:40 PM
  #10
Diesel's Avatar
CF Veteran

Joined: Aug 2010
Posts: 2,112
Likes: 4
From: Wantage, NJ
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

Sounds like they sent you an unterminated cable.

Before you ask, google how to terminate a copper cable
Reply
Old Dec 12, 2012 | 04:41 PM
  #11
Cherokeekid4x4's Avatar
Thread Starter
CF Veteran

Joined: Feb 2012
Posts: 2,652
Likes: 2
From: Kansas
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Default

Originally Posted by kennzz05
more info, what exactly are you asking?
theres two pieces one from antenna to inside the cabin, than from there to the radio, seperate the wire found down at the floor on passenger side kick panel and fish thru dash to radio
so there is no way that the part thats bad is the wire that goes thru the fender to the antenna baase to the antenna???? and i cant hook up the original wire to the back of the radio because theres nothing its just a cut wire. lemme snag some pics
Reply
Old Dec 12, 2012 | 04:45 PM
  #12
Diesel's Avatar
CF Veteran

Joined: Aug 2010
Posts: 2,112
Likes: 4
From: Wantage, NJ
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by Diesel
Sounds like they sent you an unterminated cable.

Before you ask, google how to terminate a copper cable
Originally Posted by Cherokeekid4x4
so there is no way that the part thats bad is the wire that goes thru the fender to the antenna baase to the antenna???? and i cant hook up the original wire to the back of the radio because theres nothing its just a cut wire. lemme snag some pics

..We know


Reply
Old Dec 12, 2012 | 04:46 PM
  #13
Cherokeekid4x4's Avatar
Thread Starter
CF Veteran

Joined: Feb 2012
Posts: 2,652
Likes: 2
From: Kansas
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Default

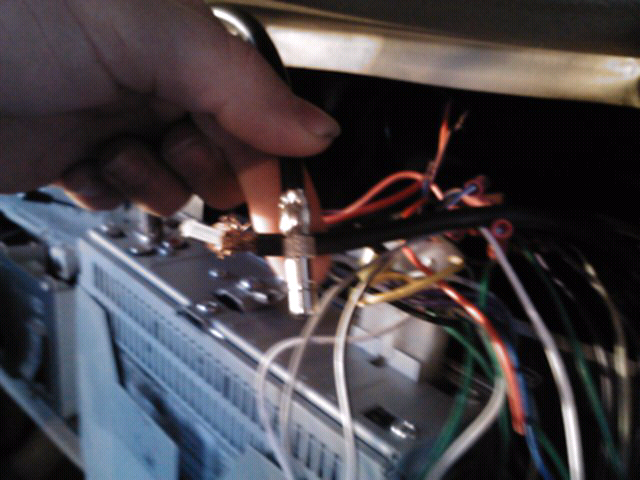

That's my problem. No way to connect the wire to the freaking radio cause some badword guy couldn't keep it on there appearantly
Attached Thumbnails Antenna wire hook up-forumrunner_20121212_164516.jpg   Antenna wire hook up-forumrunner_20121212_164524.jpg   Antenna wire hook up-forumrunner_20121212_164534.jpg
Reply
Old Dec 12, 2012 | 04:49 PM
  #14
Cherokeekid4x4's Avatar
Thread Starter
CF Veteran

Joined: Feb 2012
Posts: 2,652
Likes: 2
From: Kansas
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Default

Originally Posted by Diesel
Sounds like they sent you an unterminated cable.

Before you ask, google how to terminate a copper cable
no one sent me anything man. its just how it is but that picture you have is exactly what the wire looks like and i googled it but theres many things. i clicked on a website that shows how to strip and terminate an electric wire?
Reply
Old Dec 12, 2012 | 04:50 PM
  #15
Cherokeekid4x4's Avatar
Thread Starter
CF Veteran

Joined: Feb 2012
Posts: 2,652
Likes: 2
From: Kansas
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Default

Originally Posted by Diesel
..We know


So how to i connect that to the back of the radio? just shove it down in there? because it never worked then haha
Reply
