98 jeep Cherokee classic ac
I recently tried to recharge my ac (I've done this once before) and it didn't work this time. When I did it before the ac compressor kicked right on but this time on the gauge it was red indicating a mechanical problem. Anyone have suggestions?
#3
Newbie
Thread Starter
Join Date: Jun 2016
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#4
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Your system is probably too low to close the contact in the low pressure switch.
Try jumping the low pressure switch connector (see pic) with a small paper clip when charging the system. It should engage the compressor clutch.
Try jumping the low pressure switch connector (see pic) with a small paper clip when charging the system. It should engage the compressor clutch.
Trending Topics
#8
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
^^^^
Or the Comp Clutch is defective.

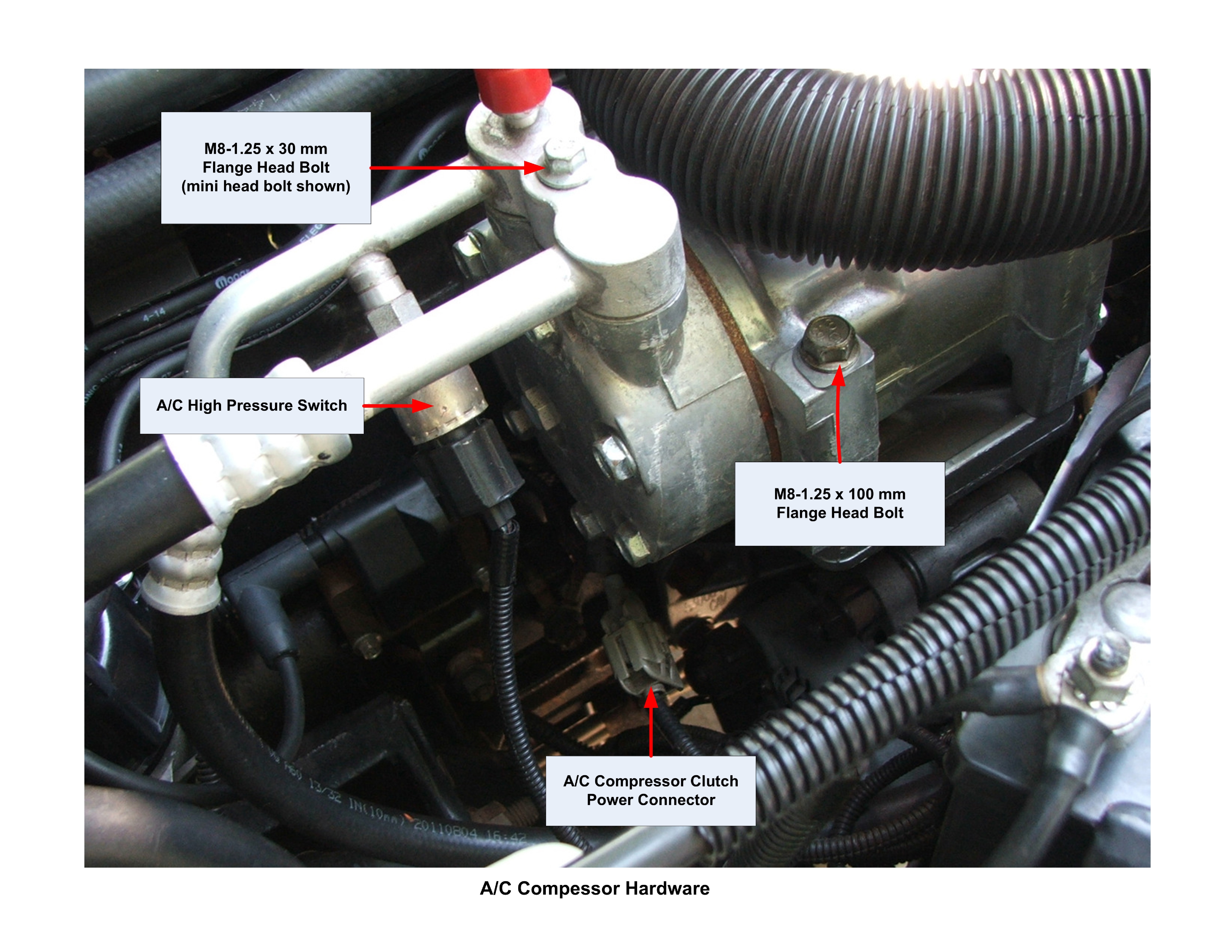

You could try jumping the High Pressure Cutoff Switch while the Low Pressure Switch is jumped. See pic.

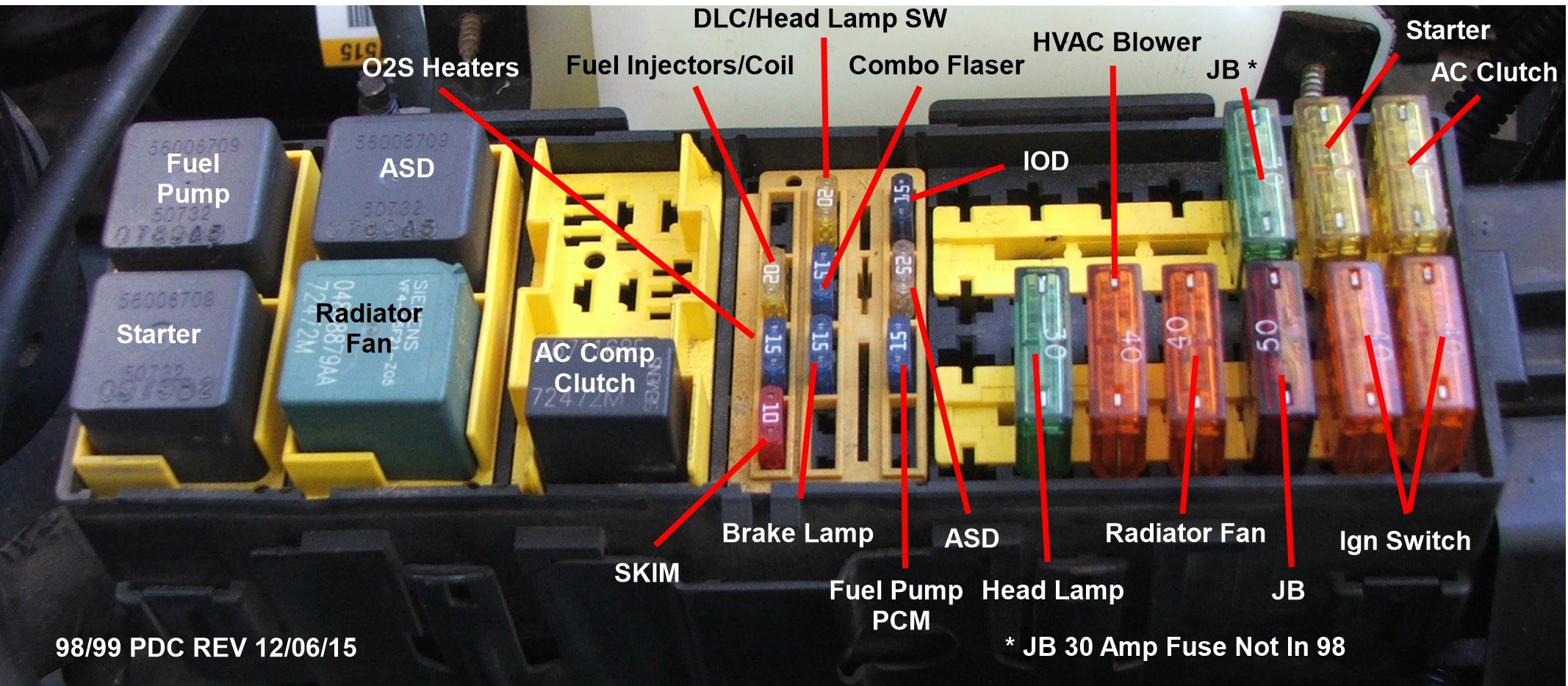

You could try uncoupling the Comp Clutch connector, and using a voltmeter, look for battery voltage at the connector with the engine running and AC selected. No voltage may indicate a bad relay (if the fuse is okay) and both switch connectors are jumped. If you do get battery voltage the clutch may be defective.
Or the Comp Clutch is defective.
You could try jumping the High Pressure Cutoff Switch while the Low Pressure Switch is jumped. See pic.
You could try uncoupling the Comp Clutch connector, and using a voltmeter, look for battery voltage at the connector with the engine running and AC selected. No voltage may indicate a bad relay (if the fuse is okay) and both switch connectors are jumped. If you do get battery voltage the clutch may be defective.
