98 4.0 No Start
I just purchased a 98 4.0 and it has a no start issue. Here are some of my observations:
The fuel pump is not priming when the ignition is turned on
The Fuel level and Volt Meter Gauges are not moving when the ignition is on
The engine turns over just fine and the battery is brand new
All fuses are intact
The CPS is brand new and was just replaced
I'm new to Jeeps and don't know where I should start. What do you guys/gals think?
The fuel pump is not priming when the ignition is turned on
The Fuel level and Volt Meter Gauges are not moving when the ignition is on
The engine turns over just fine and the battery is brand new
All fuses are intact
The CPS is brand new and was just replaced
I'm new to Jeeps and don't know where I should start. What do you guys/gals think?
#2
CF Veteran
Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
When you say the pump isn't priming, do you mean that you just don't hear it?
you may want to get under there with a voltmeter and be sure that you're getting power to the pump. If yes, then proceed with pressure test. The pump can prime without you being able to hear it. My '98 factory fuel pump was silent at around 161k miles. I replaced it because of the fuel gauge not working.
you may want to get under there with a voltmeter and be sure that you're getting power to the pump. If yes, then proceed with pressure test. The pump can prime without you being able to hear it. My '98 factory fuel pump was silent at around 161k miles. I replaced it because of the fuel gauge not working.
#3
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Which fuses did you check? PDC in the engine bay and Junction Block in the passenger footwell?
I just purchased a 98 4.0 and it has a no start issue. Here are some of my observations:
The fuel pump is not priming when the ignition is turned on
The Fuel level and Volt Meter Gauges are not moving when the ignition is on
The engine turns over just fine and the battery is brand new
All fuses are intact
The CPS is brand new and was just replaced
I'm new to Jeeps and don't know where I should start. What do you guys/gals think?
The fuel pump is not priming when the ignition is turned on
The Fuel level and Volt Meter Gauges are not moving when the ignition is on
The engine turns over just fine and the battery is brand new
All fuses are intact
The CPS is brand new and was just replaced
I'm new to Jeeps and don't know where I should start. What do you guys/gals think?
#4
Newbie
Thread Starter
Join Date: Jun 2010
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I'm used to being able to hear fuel pumps prime when the ignition is turned on in other cars, but maybe it is quieter in these cars. I can get the pump to run when I jump it at the relay. I will check the fuel pressure and see where its at.
The fuses in the engine bay as well as the passenger foot well have been checked.
I also just looked into replacing the cam position sensor, and it seems that the entire distributor needs to be replaced in this case. Anybody have a different experience? and any recommendations on a distributor to go with?
The fuses in the engine bay as well as the passenger foot well have been checked.
I also just looked into replacing the cam position sensor, and it seems that the entire distributor needs to be replaced in this case. Anybody have a different experience? and any recommendations on a distributor to go with?
#5
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Sometimes fuses can fool you and you're better off to just replace it/them.

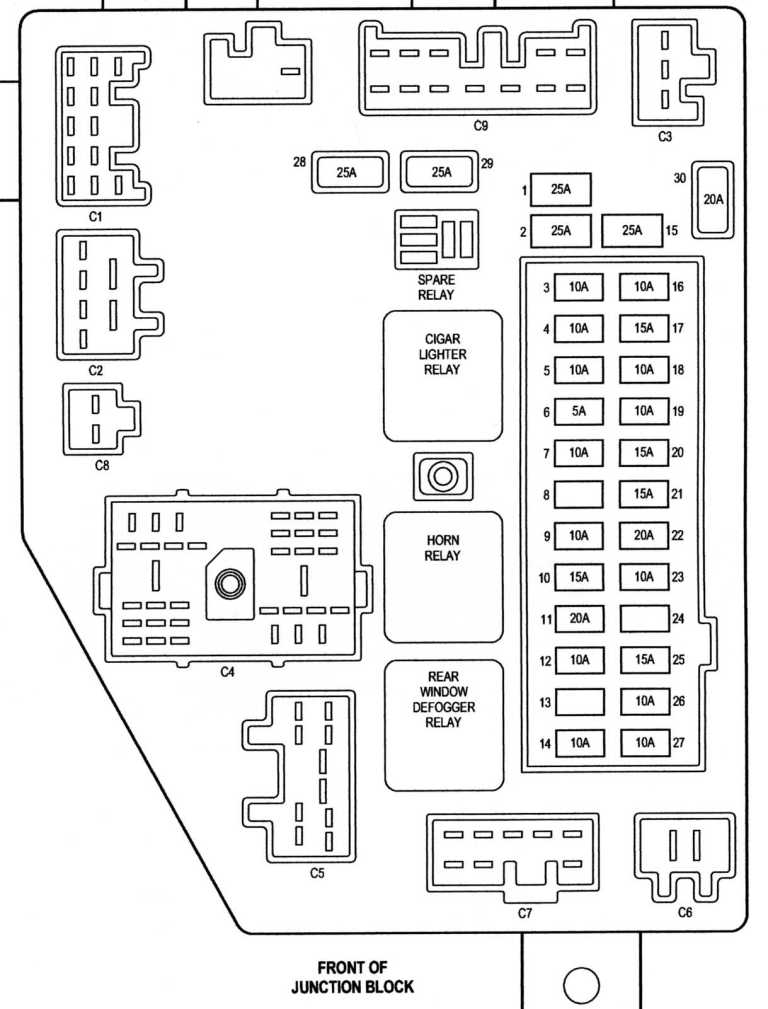

Fuse #11 in the JB powers the relay control coil for the Fuel Pump relay, the ASD relay, and powers the PCM and TCM. If this fuse blows the engine won't start and the PCM will go stupid.
You may want to just replace this fuseand see if it helps.
Fuse #11 in the JB powers the relay control coil for the Fuel Pump relay, the ASD relay, and powers the PCM and TCM. If this fuse blows the engine won't start and the PCM will go stupid.
You may want to just replace this fuseand see if it helps.
#6
Newbie
Thread Starter
Join Date: Jun 2010
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Sometimes fuses can fool you and you're better off to just replace it/them.
Fuse #11 in the JB powers the relay control coil for the Fuel Pump relay, the ASD relay, and powers the PCM and TCM. If this fuse blows the engine won't start and the PCM will go stupid.
You may want to just replace this fuseand see if it helps.
Fuse #11 in the JB powers the relay control coil for the Fuel Pump relay, the ASD relay, and powers the PCM and TCM. If this fuse blows the engine won't start and the PCM will go stupid.
You may want to just replace this fuseand see if it helps.
