stezza777

hi guys i have a question that i need help with,i have an Australian 97 4.0L cherokee that i broke the (single pin) oil sender of when changing the oil filter,so i bought another but its the later 97 (two pin) oil sender,so i fitted the oil sender on the of chance that it would work but no go,does anybody know if the 2 pin sender can be used
eg : is the second pin a groud any help would be appreciated

Demonoid369

97' only had one style, you sure you didn't get a 98' sender? 98' was when they change the style of connectors

CCKen

Do you have a full gauge instrument cluster or do you have the idiot light cluster?

The 97 oil pressure gauge sending unit will have a two pin configuration and, I think, that if you only have idiot lights, it may be a single pin switch, not a gauge sending unit.

Demonoid369

Nope, 97' sensors are all bi-signals. They work for the idiot lights and working gauges. Just like the 98'+

stezza777

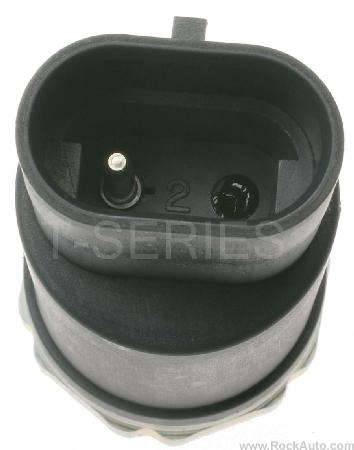

i have the gauge cluster and the connectors are identical exept the one that came of the car has one pin and the one i bought has 2 pins ,i got it of fleabay so it could be a 98 sender sold as a 97 , anybody have a link to a 98 cherokee wiring diagram for the oil senders, cheers

freegdr

Autozone has a double and a single version. Had this issue with friends late 96 4.0 if I remember the Canadian version was one wire.

stezza777

thaks for the replies much appreciated

EdZ

It appears your question didn't get answered... Often times the single pin type use the threads as the negative connection... The dual pin uses wire for the ground... Ya just need to figure out which pin is used for the ground and which is for signal... Connect the signal to your wire and the other pin to a ground...

freegdr

Apparently yours is equipped with a 96 switch....

EdZ

After doing a bit of research I came up with the 1995's had single pin and the 96 is when they went to two pin... Seems odd that you would have a 1997 jeep with a 1995 wiring harness in it...
