87 4.0l electrical issue
#1
Junior Member
Thread Starter
Join Date: Apr 2015
Location: Virginia
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: Renix 4.0
87 4.0l electrical issue
My jeep has started something I can not figure out. While driving my dash lights will dim, radio starts crackling. And sometimes the radio even cuts off and wipers won't work. I've checked grounds and all seems fine. Hard to test cause it only happens while driving. Happens day or night pretty speratic. Anyone have an idea?
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,523 Likes
on
1,235 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
How are you "checking" grounds?
And which ones?

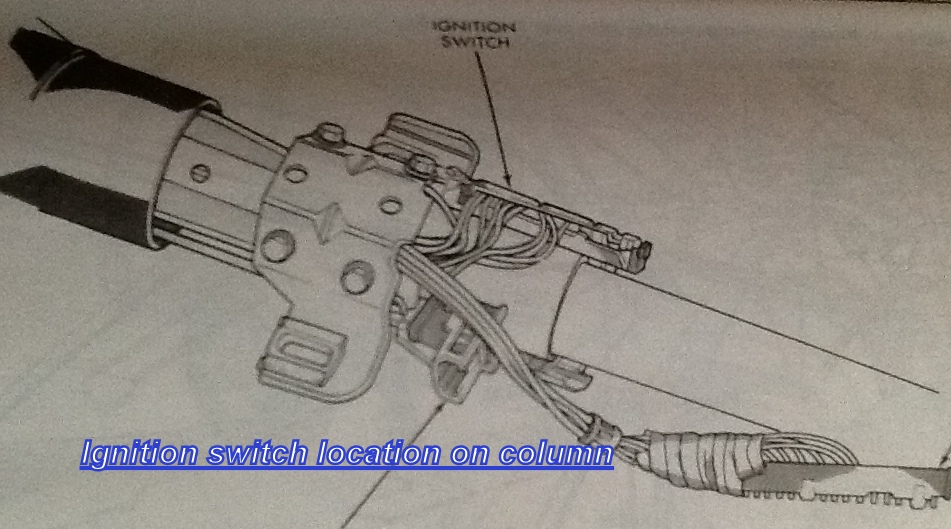

Could very possibly the brown wire at the ignition switch is burning up.
Turn signals and blower motor work when this happens?
I'm gonna give you a few things to do.
Tips 1, 3 and 18.
http://cruiser54.com/
And which ones?
Could very possibly the brown wire at the ignition switch is burning up.
Turn signals and blower motor work when this happens?
I'm gonna give you a few things to do.
Tips 1, 3 and 18.
http://cruiser54.com/
#5
Senior Member
My jeep has started something I can not figure out. While driving my dash lights will dim, radio starts crackling. And sometimes the radio even cuts off and wipers won't work. I've checked grounds and all seems fine. Hard to test cause it only happens while driving. Happens day or night pretty speratic. Anyone have an idea?
#6
Junior Member
Thread Starter
Join Date: Apr 2015
Location: Virginia
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: Renix 4.0
Sorry it has take so long to get back. School has had me pretty busy.
Cruiser54 I will work on that today and see what happens
Freedgr. Yes. The dealer changed my ignition switch because you could turn the the jeep on without a key
67 GMC it happens with or without lights on. During the day the radio will turn off by itself and turn back on.
Cruiser54 I will work on that today and see what happens
Freedgr. Yes. The dealer changed my ignition switch because you could turn the the jeep on without a key
67 GMC it happens with or without lights on. During the day the radio will turn off by itself and turn back on.
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,523 Likes
on
1,235 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Sorry it has take so long to get back. School has had me pretty busy.
Cruiser54 I will work on that today and see what happens
Freedgr. Yes. The dealer changed my ignition switch because you could turn the the jeep on without a key
67 GMC it happens with or without lights on. During the day the radio will turn off by itself and turn back on.
Cruiser54 I will work on that today and see what happens
Freedgr. Yes. The dealer changed my ignition switch because you could turn the the jeep on without a key
67 GMC it happens with or without lights on. During the day the radio will turn off by itself and turn back on.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Apr 2015
Location: Virginia
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: Renix 4.0
Cruiser54,
I cannot find my fuel pump ballast resistor. I think I have some kind of relay where the ballast should be?
I cannot find my fuel pump ballast resistor. I think I have some kind of relay where the ballast should be?
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,523 Likes
on
1,235 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#10
Junior Member
Thread Starter
Join Date: Apr 2015
Location: Virginia
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: Renix 4.0
Thanks Cruiser,
I checked 1, 3, and 18, which 3 I couldnt do. I'll see how it does.
By the way, I removed that plug like you suggested, and it did run a lot better. Now just dealing with this stalling intermittently.
I checked 1, 3, and 18, which 3 I couldnt do. I'll see how it does.
By the way, I removed that plug like you suggested, and it did run a lot better. Now just dealing with this stalling intermittently.
#11
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 951 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
That string of characters makes no sense. Well, it makes sense in English, but I'm pretty sure what you said is not what you meant, because that would not make sense.
What you said is that you could not do those 3 things.
Did you mean to say you could not do #3?
What you said is that you could not do those 3 things.
Did you mean to say you could not do #3?
#12
Senior Member
That was good work replacing the C101 connector (very tedious I'm sure). I would also suggest tip#5 since that helps you find other grounding issues that the sensors see. It's probably a lot better already with the C101 and Dipstick grounds fixed. I put a ground cable to the fire wall from the dipstick stud (I think that's in Cruiser's tips too). In a way, working on the Renix system is not that bad. It doesn't throw codes but you can do a lot with a multi-meter and this forum!
Keep at it.
Keep at it.
#13
Junior Member
Thread Starter
Join Date: Apr 2015
Location: Virginia
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: Renix 4.0
I figured out the issue. I think it was 3 different things.
First, I found where the radio was grounding out, fixed it. Radio not cutting off or dash lights dimming anymore.
Second, I replaced wiper motor and they work fine now.
Third, I saw a wetness around the return fuel line connector under the air filter. I removed it and since they is no replacement part, I ran hose fuel line with clamps. The stalling stopped. I'm guessing air was getting in fuel line.
I thought all three were related since they happened at the same time, but those issues are fixed now,. On to the next one.
First, I found where the radio was grounding out, fixed it. Radio not cutting off or dash lights dimming anymore.
Second, I replaced wiper motor and they work fine now.
Third, I saw a wetness around the return fuel line connector under the air filter. I removed it and since they is no replacement part, I ran hose fuel line with clamps. The stalling stopped. I'm guessing air was getting in fuel line.
I thought all three were related since they happened at the same time, but those issues are fixed now,. On to the next one.
#14
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,523 Likes
on
1,235 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Thanks for the update, but mostly congrats for sticking with it.
#15
Member
Join Date: May 2016
Location: Campo
Posts: 125
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
And having an 87 there will be a next one!!! How do i know... But Taylor, luckily for us there is this Renix God named Cruiser!!! OK so im kissn a bit. But hey no one can argue that Cruiser knows his sh..!!!
Happy trails to all!!!
Happy trails to all!!!
