1999 Cruise Control Install - Harness too short?
#1
Newbie
Thread Starter
Join Date: Mar 2018
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee(XJ)
1999 Cruise Control Install - Harness too short?

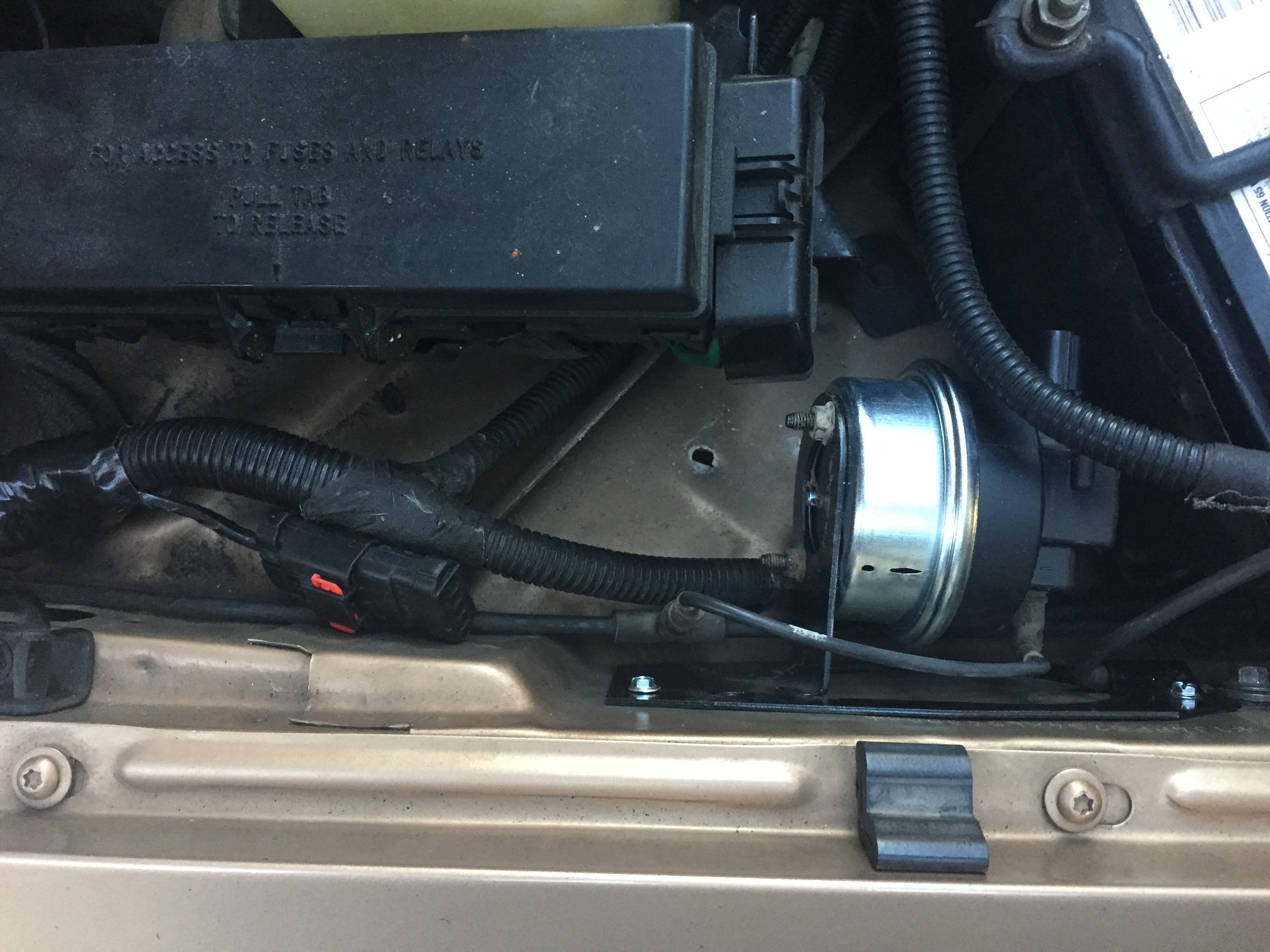

New member here hoping to find an answer that I've not been able to find anywhere else. I'm installing factory cruise components into a 99 XJ that did not have cruise from the factory. All the interior switches and installation went perfect, had the right switches, no issues there. However, I've got the bracket mounted under the hood and the factory connector is way too short to reach the servo. It is almost like it was a factory defect or I need some kind of jumper.
I had the loom undone and the wires go in two different directions at the "T" so I can't undo anything to bring it down the harness closer to the servo.My next step is to hack the end off one one in a junkyard long enough so I can solder the harness on with only one connection per wire. Any ideas?
**On a side note, the cable I had was broken so that is why it isn't installed yet. The lights on the dash do turn on and off indicating the cruise is working electrical wise.
I had the loom undone and the wires go in two different directions at the "T" so I can't undo anything to bring it down the harness closer to the servo.My next step is to hack the end off one one in a junkyard long enough so I can solder the harness on with only one connection per wire. Any ideas?
**On a side note, the cable I had was broken so that is why it isn't installed yet. The lights on the dash do turn on and off indicating the cruise is working electrical wise.
#2
CF Veteran
Join Date: Oct 2015
Posts: 7,362
Likes: 0
Received 1,533 Likes
on
1,175 Posts
Year: 2000
Model: Cherokee (XJ)

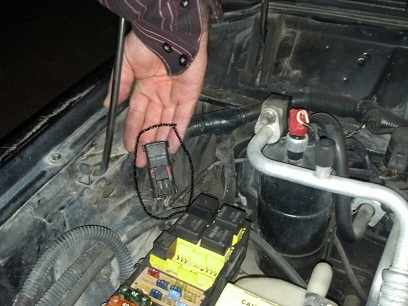

First thing. Where on earth did you find a cruise control unit that is so shiny? So jealous. LOL. I would have to go look to be sure, it is still dark out, but could sworn that my connector was more under the battery when I installed cruise in my '00 that did not come with it. Could that be the daylight running connector that I have read that some Jeeps have?
#3
Newbie
Thread Starter
Join Date: Mar 2018
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee(XJ)
First thing. Where on earth did you find a cruise control unit that is so shiny? So jealous. LOL. I would have to go look to be sure, it is still dark out, but could sworn that my connector was more under the battery when I installed cruise in my '00 that did not come with it. Could that be the daylight running connector that I have read that some Jeeps have?
Thanks for the help!
#4
CF Veteran
Join Date: Oct 2015
Posts: 7,362
Likes: 0
Received 1,533 Likes
on
1,175 Posts
Year: 2000
Model: Cherokee (XJ)
This is actually my buddy's XJ and he got a little carried away on Rock Auto so he got a used one and then also bought a brand new module and bracket haha. As for the harness I think you have the answer. Oddly enough, if you remove that plug for the DRL connector it plugs right into the cruise control module. I guess Jeep was standardizing their connectors haha
Thanks for the help!
Thanks for the help!
