1995 XJ Country hose help

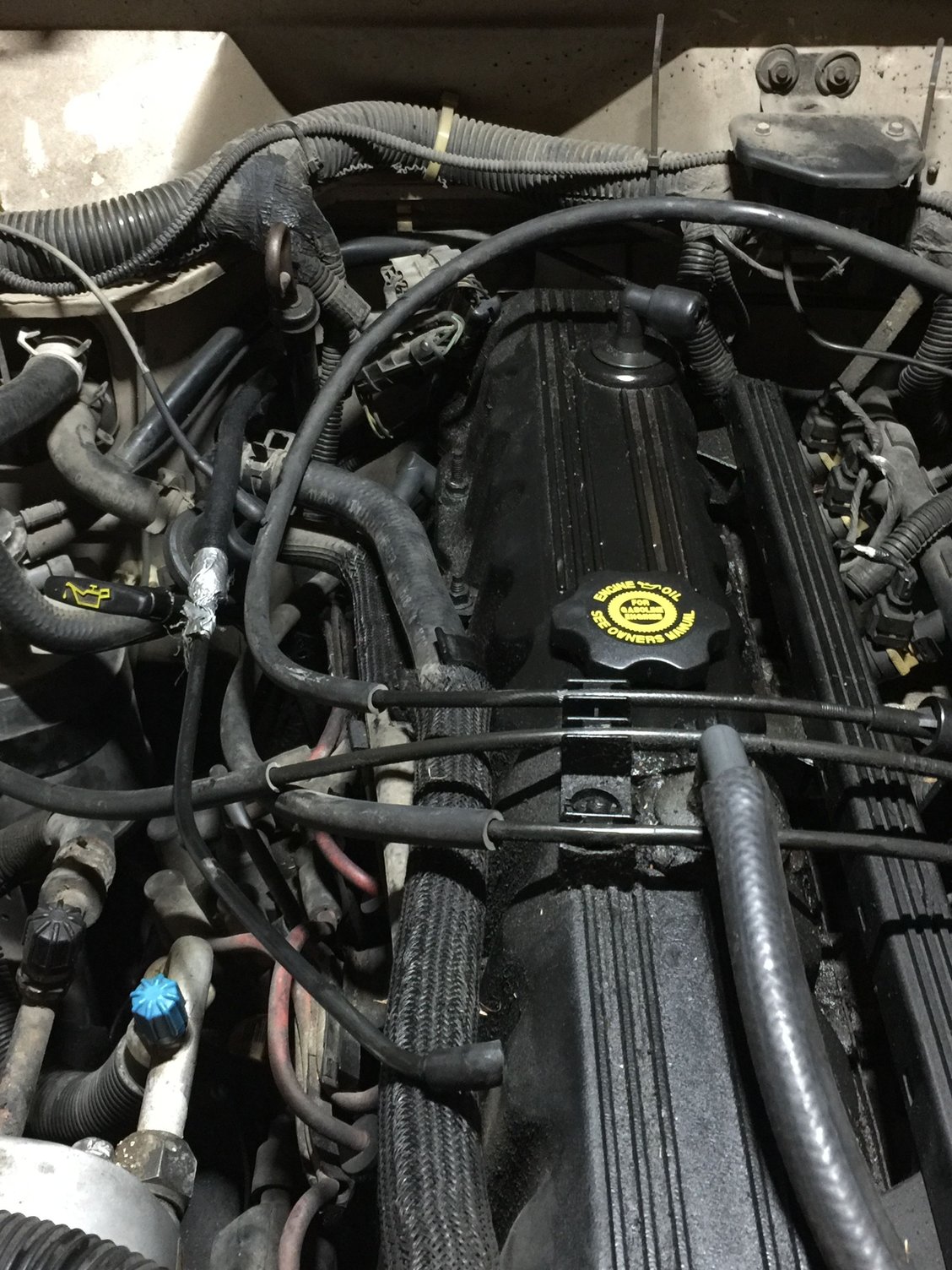

Hey guys--I just got a 1995 XJ Country for super cheap as a project vehicle and need a bit of direction as I am admittedly less than mechanically inclined. I see two separate hoses that are attached to nothing, and I am wondering if you guys can point me in the right direction for a fix. Here is a look under the hood:

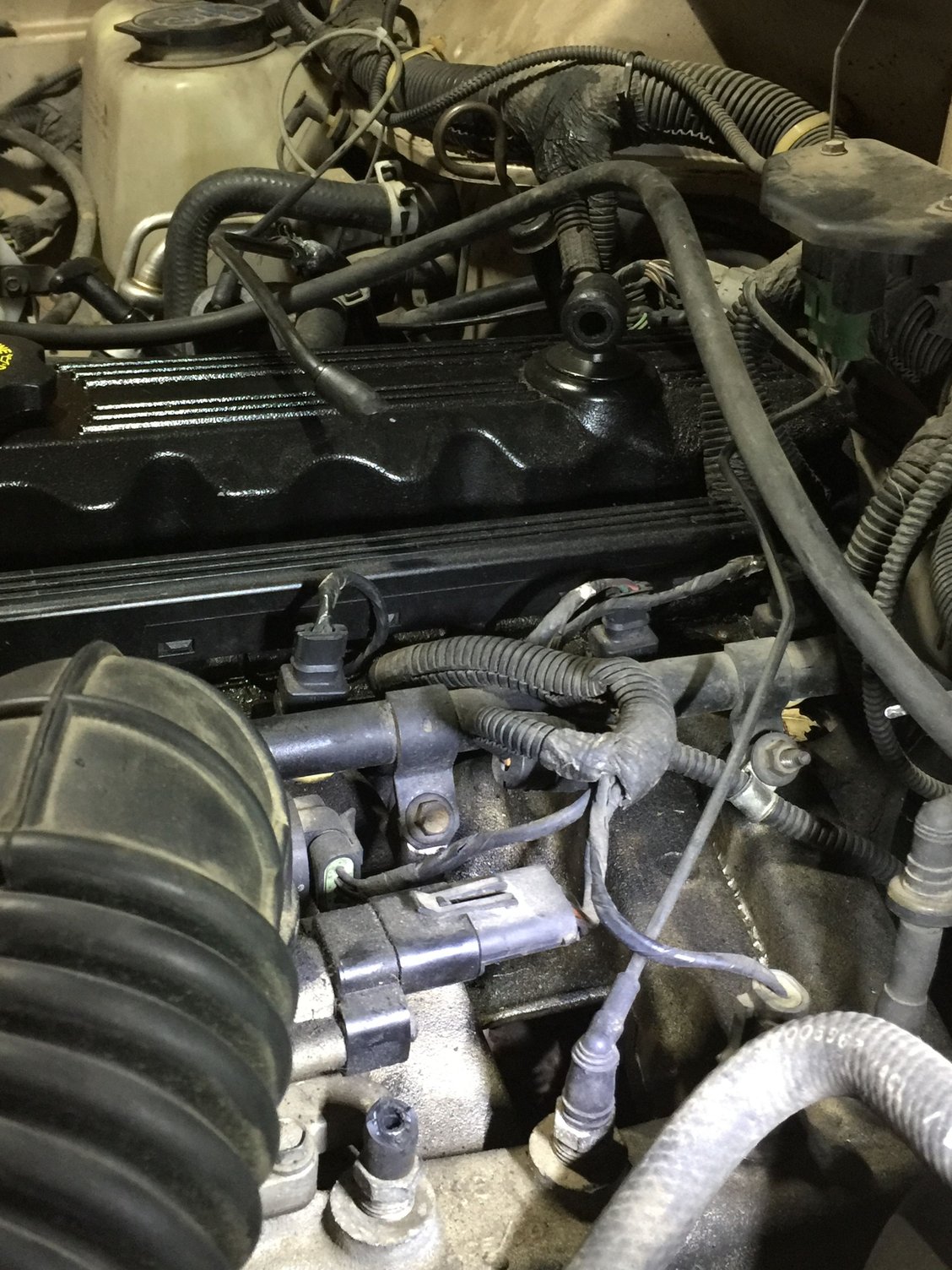

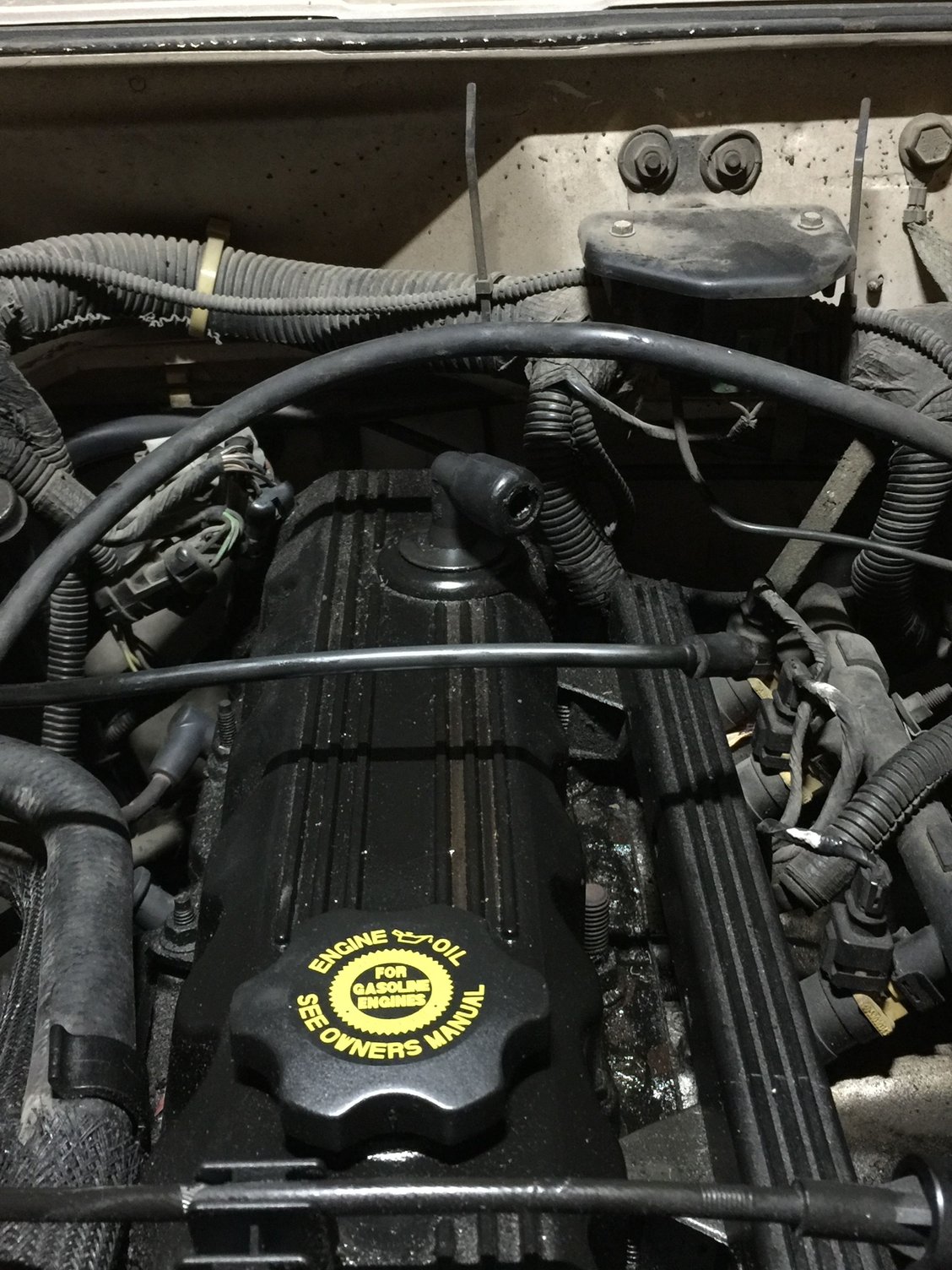

I believe the ??CCV valve?? at the top is supposed to go somewhere into the intake manifold, but not sure where. Here is a shot of the intake manifold:
Here you can see where a hose was previously attached but is now broken off. I am not sure if the hose on the left (which looks like it is the right length and the right match for the broken hose) goes here or if the missing hose from the CCV valve is supposed to go here. Here is another picture of the mystery hose:
It is identifiable on the left by the duct tape on it. I'm not yet sure where it starts, but it looks like it could attach to the intake manifold:
So which one attaches to that site on the intake manifold? And where does the other one go? If any of you guys could help me figure out which hose goes where and what the name of the replacement hose I need is called, that would be hugely appreciated. I'm kind of new to all of this but hoping to learn. Thanks in advance!
I believe the ??CCV valve?? at the top is supposed to go somewhere into the intake manifold, but not sure where. Here is a shot of the intake manifold:
Here you can see where a hose was previously attached but is now broken off. I am not sure if the hose on the left (which looks like it is the right length and the right match for the broken hose) goes here or if the missing hose from the CCV valve is supposed to go here. Here is another picture of the mystery hose:
It is identifiable on the left by the duct tape on it. I'm not yet sure where it starts, but it looks like it could attach to the intake manifold:
So which one attaches to that site on the intake manifold? And where does the other one go? If any of you guys could help me figure out which hose goes where and what the name of the replacement hose I need is called, that would be hugely appreciated. I'm kind of new to all of this but hoping to learn. Thanks in advance!
#2
CF Veteran
Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
The plastic piece you are holding in the last picture goes between the elbow on the valve cover and the opening on the intake. I don't know what hose it is taped to now.
#3
Newbie
Thread Starter
Join Date: Aug 2015
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Thanks, toasterknight
That makes sense. The guy I got this Jeep from was an idiot. I didn't mention that I had to cut away a knotted rag in order to get to the duct taped hose! Now to figure out the other hose...
#4
CF Veteran
Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
I have a feeling the duct taped hose may be the breather for the trans or transfer case. Follow it to the end and if it is you can just trim it shorter and add a filter.
#5
Newbie
Thread Starter
Join Date: Aug 2015
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I am laying in the middle of the vehicle, looking to the rear. The hose in question is the lighter colored one below the fuel filter. So I just need to add a filter to the dead end of the hose? Is that right?
#7
Newbie
Thread Starter
Join Date: Aug 2015
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Top left of the fuel tank
Top right of the fuel tank
Does that make better sense?
Trending Topics
#8
Newbie
Thread Starter
Join Date: Aug 2015
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Think I figured it out. Looks like those hoses connect to the fuel tank rollover check valves, and the other end of the hose is supposed to connect to the charcoal canister. I actually found a spot on the canister where it appears the hose came off. Thanks so much for your help!
