The B. Lee's Offroad Crossover Steering Upgrade
03-22-2015, 09:04 AM
#1
Former Sponsor
Thread Starter
Join Date: Apr 2014
Posts: 295
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
This has been highly requested and now it's here. Crossover steering for your XJ, MJ, TJ, ZJ, and LJ. This kit replaces the stock McDonald's straw steering with beef components. We offer 2 options:
The standard kit uses .120 wall DOM
The HD kit uses .25" wall DOM

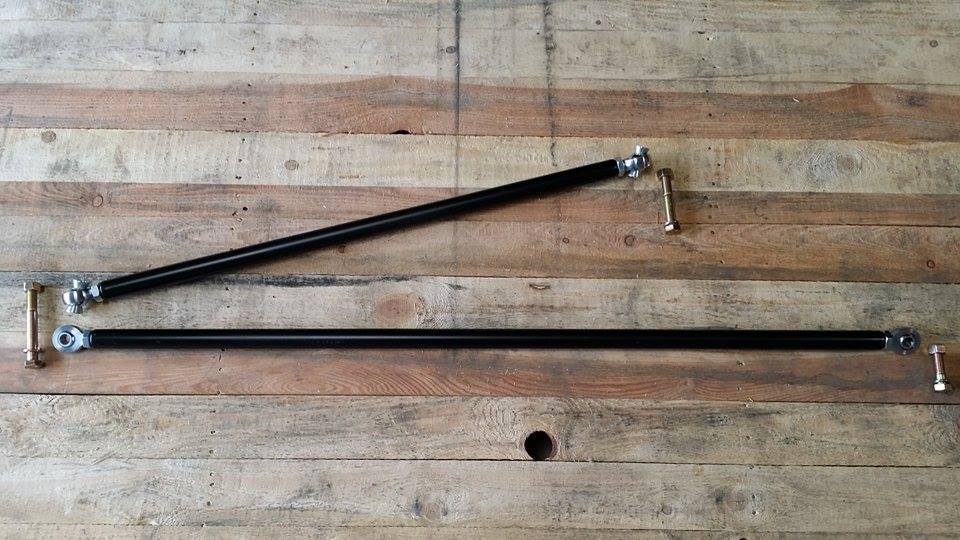

Both kits include the drag link and tie rod and require that you drill your knuckles and pitman arm to accept the larger 5/8" bolt.
This kit can be ran UTK or OTK. If you plan on running OTK we highly recommend you modify your track bar to an over the axle mount. We do plan on offering a full blown OTK kit with a track bar and OTA mount in the very near future.
$179.99 for the standard kit
$229.99 for the HD kit.
$30 flat shipping to your doorstep.
The standard kit uses .120 wall DOM
The HD kit uses .25" wall DOM
Both kits include the drag link and tie rod and require that you drill your knuckles and pitman arm to accept the larger 5/8" bolt.
This kit can be ran UTK or OTK. If you plan on running OTK we highly recommend you modify your track bar to an over the axle mount. We do plan on offering a full blown OTK kit with a track bar and OTA mount in the very near future.
$179.99 for the standard kit
$229.99 for the HD kit.
$30 flat shipping to your doorstep.
Last edited by Dave @ B. Lee's Offroad; 03-30-2015 at 08:34 PM.
03-23-2015, 02:40 PM
#5
CF Veteran
Join Date: Feb 2011
Location: Henderson, NV
Posts: 1,944
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Engine: 4.0L
Do you guys have any installed pictures both OTK and UTK? What kind of heim joints? Are they Teflon lined?
Last edited by Photojared; 03-23-2015 at 02:46 PM.
03-23-2015, 06:32 PM
#6
Former Sponsor
Thread Starter
Join Date: Apr 2014
Posts: 295
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

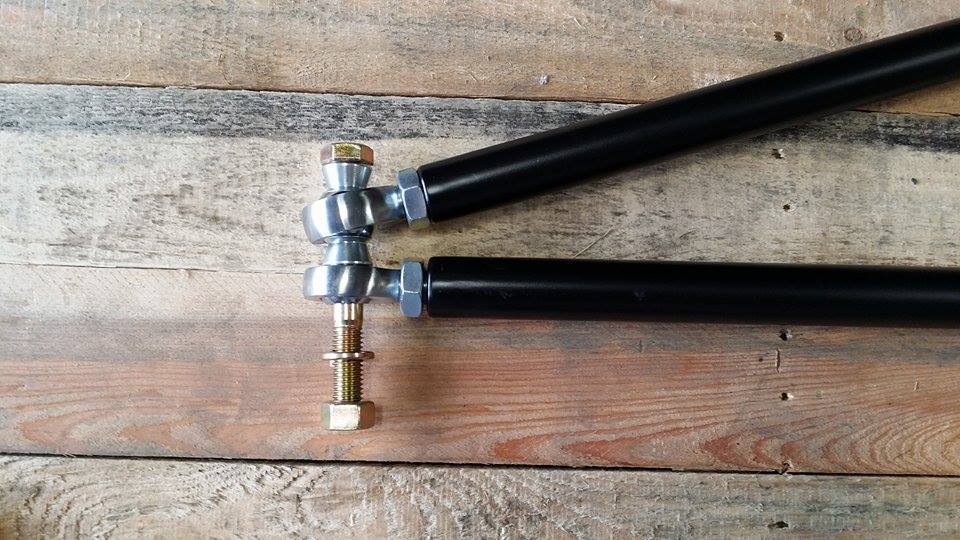

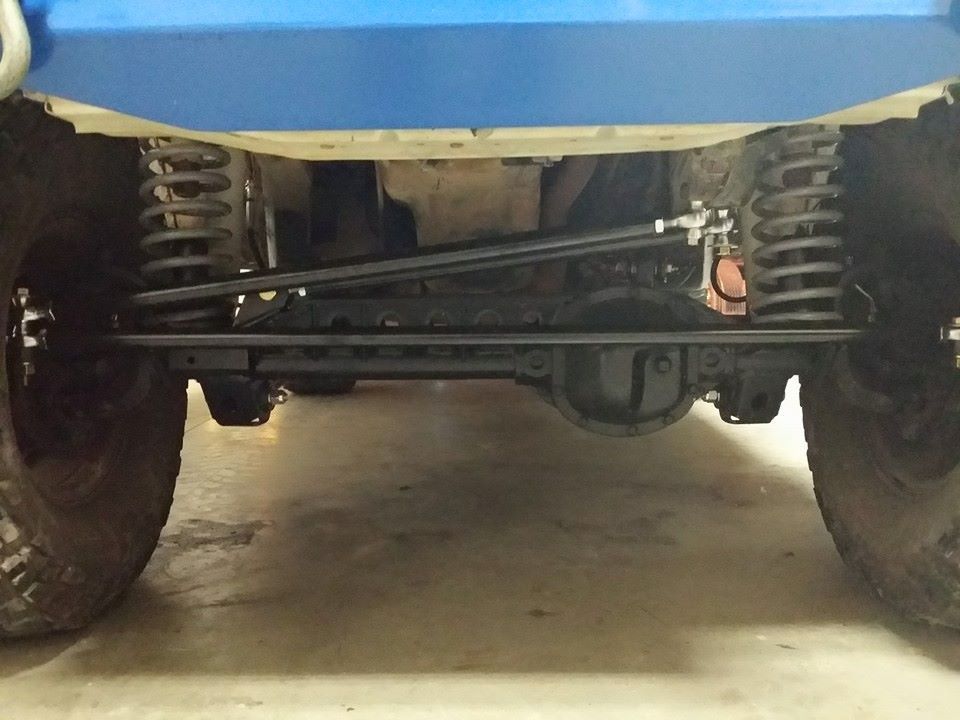

They are heat treated chromoly Heims, ill get you some installed pics of Brians Xj...its OTK with an OTK Track bar. Not sure if any customers have ran UTK yet....Brian did for a very short time when he first built the kit but went OTK very quick.
Last edited by Dave @ B. Lee's Offroad; 03-30-2015 at 08:33 PM.
Trending Topics
03-23-2015, 11:45 PM
#12
Senior Member
Join Date: Dec 2009
Location: Gilbert, AZ
Posts: 542
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0L
Damnit. I just replaced all my tie rod ends and tie rod at napa two days ago.
Spent almost as much as the bombproof kit.
Really wish i knew of this option two days ago.
Spent almost as much as the bombproof kit.
Really wish i knew of this option two days ago.
03-24-2015, 08:18 AM
#13
CF Veteran
Join Date: Dec 2010
Location: Rocket Country MI
Posts: 1,240
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I already have an hd tb with a frame side drop bracket, how would that mesh with the otk setup? Also, any provision for a steering stabilizer, or is that deleted?
Last edited by Sideways99; 03-24-2015 at 08:19 AM. Reason: moar questions
