?s about aw4 kickdown for 4x4swap

Old 03-02-2014, 08:42 PM
  #1
Junior Member
Thread Starter

RusNorthID's Avatar

Join Date: Feb 2014
Location: Hayden ID
Posts: 62
Year: 1992
Model: Cherokee
Engine: 4.0L
Default ?s about aw4 kickdown for 4x4swap

Ok I've done some research and i still cant find what im asking lol so here it is. I'm swapping a aw4/242 from a 90xj 4.0 into my 88mj 4.0 aw4. What i need to know is why the mj doesn't have the vacuum/kickdown control.on the firewall like all my xjs have. And do i need this for my swap?
Attached Thumbnails ?s about aw4 kickdown for 4x4swap-img_20140226_170159_636.jpg
RusNorthID is offline
Old 03-03-2014, 09:12 AM
  #2
Member

Bobolink's Avatar

Join Date: Feb 2014
Location: north of the Rio Grande, south of the Red, east of the Pecos, west of the Sabine
Posts: 172
Year: 1990
Model: Comanche
Engine: 4.0
Default

The picture you're showing is the cruise control actuator.....has nothing to do with the tranny. The transmission line pressure is controlled by a cable that runs from a bracket at the top rear of the throttle body. It has a "D" shaped box (as seen from above) about 3/4" across, with a push button on top to make correct adjustments to the cable. That cable is attached to the same bell crank on the throttle body that your throttle actuator rod is connected to. I've used your picture to show you the cable. The cable controls line pressure according to throttle position, and may help facilitate kickdown, which is also controlled in some situations by signals from the TPS to the TCU. There are no vacuum lines to the transmission.


The cruise control cable that runs from the actuator runs down behind and below the throttle body and pulls up on a bell crank on a bracket attached to the intake manifold where your accelerator cable (and the other end of the throttle actuator rod) also connects.


To answer your last question, if your MJ doesn't have cruise, you wont need this.
Attached Thumbnails ?s about aw4 kickdown for 4x4swap-233462d1393814379t-s-about-aw4-kickdown-4x4swap-img_20140226_170159_636.jpg

Last edited by Bobolink; 03-03-2014 at 11:01 AM. Reason: add picture
Bobolink is offline
Old 03-03-2014, 10:51 AM
  #3
Junior Member
Thread Starter

RusNorthID's Avatar

Join Date: Feb 2014
Location: Hayden ID
Posts: 62
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

Perfect THANK YOU i just got some bad info then lol. That explains a lot. The mj doesnt have cruise and thats why its laking this part
RusNorthID is offline
Old 03-03-2014, 11:47 AM
  #4
kjc
CF Veteran

kjc's Avatar

Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 1,024
Year: 1993
Model: Grand Cherokee
Engine: 4.0L Laredo
Default

What he said.. You'll no doubt need to adjust the TV cable.. if you're not familiar with it, it's really simple. Press "D-shaped" button and push cable housing back into the adjuster. Release button and twist the throttle to wide open position. You'll hear the adjuster ratchet into position as you do this. (engine off of course) And that's it.. simple, but important as the tranny can be damaged if the adjustment is off too much. (early or late shifting) Here's a pic
Attached Thumbnails ?s about aw4 kickdown for 4x4swap-tv-cable-adj2.jpg
kjc is offline
Old 03-03-2014, 05:56 PM
  #5
Junior Member
Thread Starter

RusNorthID's Avatar

Join Date: Feb 2014
Location: Hayden ID
Posts: 62
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

Ya i read up on that but it seems like how you just described it was much simpler thanks cant wait to have this mj grabbing at all four corners
RusNorthID is offline
Old 04-05-2014, 07:54 AM
  #6
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,733
Year: 1990
Model: Comanche
Engine: 4.0
Default

Originally Posted by RusNorthID View Post
Ya i read up on that but it seems like how you just described it was much simpler thanks cant wait to have this mj grabbing at all four corners
Are you done yet?
cruiser54 is offline
Old 04-06-2014, 08:56 AM
  #7
Junior Member
Thread Starter

RusNorthID's Avatar

Join Date: Feb 2014
Location: Hayden ID
Posts: 62
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

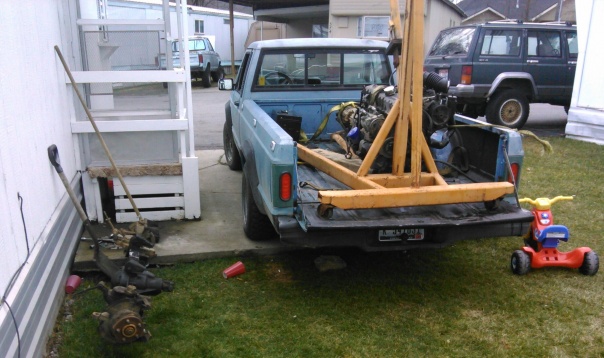

Well its getting there. I have everything stripped from my donor.now just clean everything up and find a rear d.shaft then i can put it together. Plus i had to scrap the carcass from the donor so the mj helped its organ donor to its final resting place
Attached Thumbnails ?s about aw4 kickdown for 4x4swap-img_20140328_122913_752-1.jpg   ?s about aw4 kickdown for 4x4swap-img_20140403_123142_035.jpg
RusNorthID is offline
