Welded on bumpstops. Upgading to ACOS spacers.
12-31-2013, 07:47 PM
#1
CF Veteran
Thread Starter
Join Date: Sep 2013
Location: California
Posts: 1,552
Likes: 0
Received 7 Likes
on
7 Posts
Year: 91
Model: Cherokee
Engine: 4.0
Welded on bumpstops. Upgading to ACOS spacers.

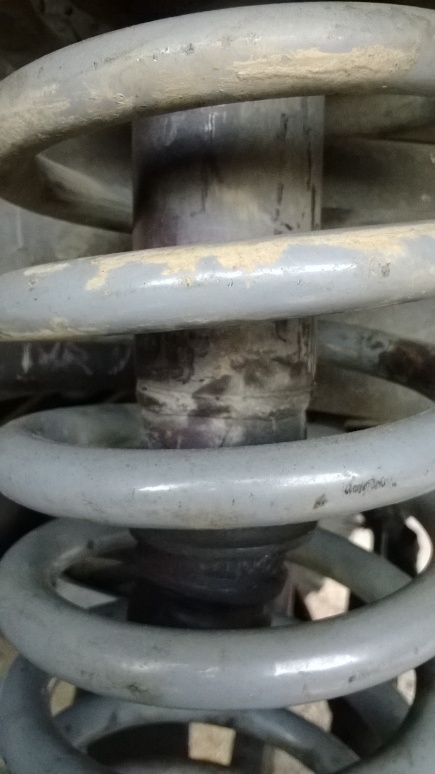

I'm about to install some ACOS spacers. My bump stops are welded on. Need to cut, drill and tap. Has anybody done this before that might have any suggestions? Saw zaw? Grinder? Both? Doing this in my apartment complex parking lot so I need to be fast and efficient.
12-31-2013, 09:09 PM
#3
CF Veteran
Thread Starter
Join Date: Sep 2013
Location: California
Posts: 1,552
Likes: 0
Received 7 Likes
on
7 Posts
Year: 91
Model: Cherokee
Engine: 4.0
Can I get a drill in there? Or do I have to drop the axle? How deep do I need to drill? If its not that deep I will cut the drill bit down.
01-01-2014, 03:35 AM
#4
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Gotta remove spring anyway...Sawz All......http://www.quadratec.com/Assets/Installation/18382.pdf
Last edited by freegdr; 01-01-2014 at 03:56 AM.
01-01-2014, 09:22 AM
#5
CF Veteran
Thread Starter
Join Date: Sep 2013
Location: California
Posts: 1,552
Likes: 0
Received 7 Likes
on
7 Posts
Year: 91
Model: Cherokee
Engine: 4.0

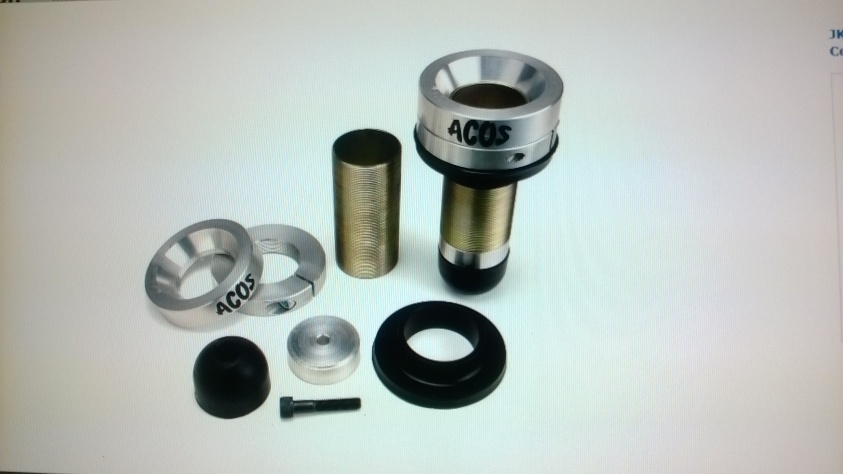

My bad. Should have been more informative. I need to remove my coil springs to install some ACOS spacers that I purchased from My own supplier. Probably the same ones that everybody is buying. Will post a picture just in case there is some confusion. ANAYWAYS here are the questions....
After I remove the welded in bump stops.....(please refer to quote or previous posts) Any information helps and is greatly appreciated. Happy New Year everybody....
Can I get a drill in there? Or do I have to drop the axle? How deep do I need to drill? If its not that deep I will cut the drill bit down.
After I remove the welded in bump stops.....(please refer to quote or previous posts) Any information helps and is greatly appreciated. Happy New Year everybody....Can I get a drill in there? Or do I have to drop the axle? How deep do I need to drill? If its not that deep I will cut the drill bit down.
01-02-2014, 08:39 PM
#7
Junior Member
Join Date: Sep 2011
Location: Macomb,MI
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
There easy to install, remember to disconnect swaybar, makes it easier drop the axle one side at a time. Cut the bump metal shell off with a cut off wheel. The hole in bottom only needs to be enlarged to the new size, its about 3/16" thick, so you can cut a drill down if you have to. Thats it, install and adjust
Trending Topics
01-02-2014, 09:15 PM
#8
CF Veteran
Thread Starter
Join Date: Sep 2013
Location: California
Posts: 1,552
Likes: 0
Received 7 Likes
on
7 Posts
Year: 91
Model: Cherokee
Engine: 4.0
There easy to install, remember to disconnect swaybar, makes it easier drop the axle one side at a time. Cut the bump metal shell off with a cut off wheel. The hole in bottom only needs to be enlarged to the new size, its about 3/16" thick, so you can cut a drill down if you have to. Thats it, install and adjust
