Default trimming help

ok so i am currently running roughly 2.5"s of lift and 33s but i rub in the back whenever i try to flex is there anyway i can trim past the line where the metal bent out to mount the fender flares? ill post pics once i figure out how

Last edited by arizonacc; Nov 6, 2013 at 12:46 PM.
Reply
Old Nov 6, 2013 | 12:49 PM
  #2
arizonacc's Avatar
Thread Starter
Member

Joined: Dec 2012
Posts: 141
Likes: 0
From: Moundridge KS
Year: 1994
Model: Cherokee
Engine: 4.0
Default

trimming help-image.jpg
heres how its sitting now and ive trimmed the back as far as i know i can go but id like to be able to trim more when i trim the front more
Reply
Old Nov 6, 2013 | 12:52 PM
  #3
DieselDaze's Avatar
Senior Member

Joined: Aug 2009
Posts: 838
Likes: 0
From: Tulsa,Oklahoma
Year: 97
Model: Cherokee
Engine: 4.0
Default

you can trim and fold the back quarter panel in and its a clean mod.. maybe someone will post a link or you can use your search fu... lazy today myself
Reply
Old Nov 6, 2013 | 01:48 PM
  #4
helmut's Avatar
CF Veteran

Joined: Dec 2010
Posts: 1,385
Likes: 1
From: Frankfort IL
Year: 2000
Model: Cherokee
Engine: 4.0
Default

If you cut past the pinchseam you will separate the body. So if you do that it will enlarge the wheel well but will require you to weld the gap back together. You will still rub with those 33s anyways unless bumpstopped properly. You should get/make correct bumpstops.
Reply
Old Nov 6, 2013 | 01:50 PM
  #5
arizonacc's Avatar
Thread Starter
Member

Joined: Dec 2012
Posts: 141
Likes: 0
From: Moundridge KS
Year: 1994
Model: Cherokee
Engine: 4.0
Default

so i can go as high as i want just will have to weld in new metal when i get passed the pinch seam?
Reply
Old Nov 6, 2013 | 02:00 PM
  #6
helmut's Avatar
CF Veteran

Joined: Dec 2010
Posts: 1,385
Likes: 1
From: Frankfort IL
Year: 2000
Model: Cherokee
Engine: 4.0
Default

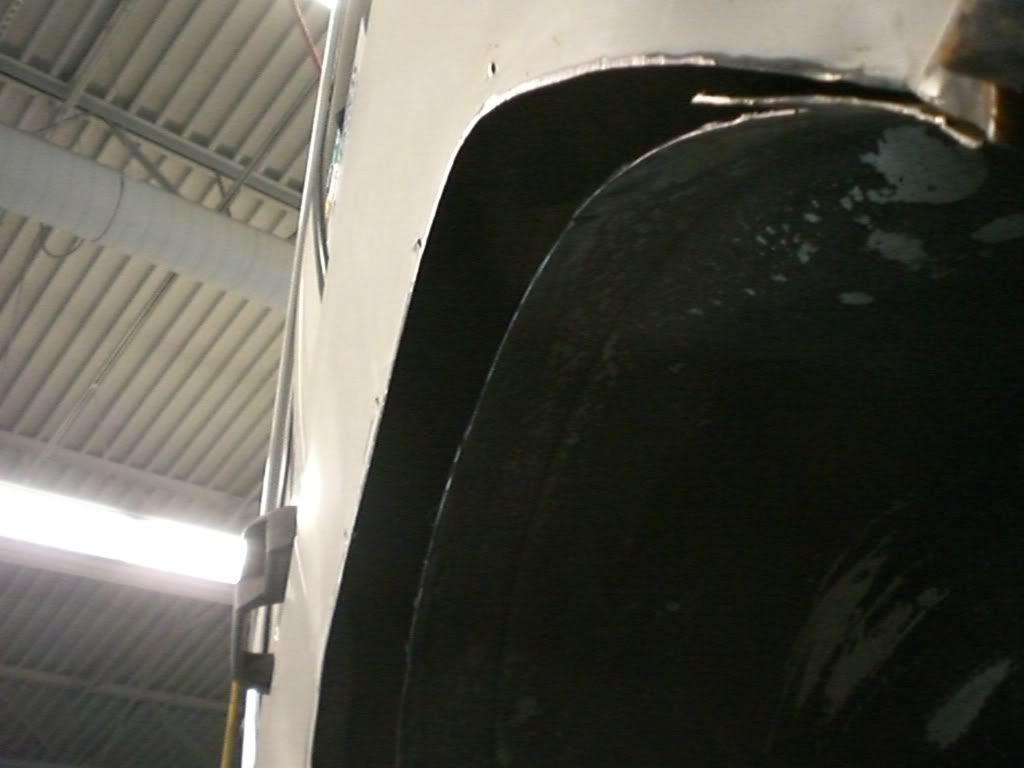

this is what it will look like. So I guess yes, You could cut it until its even with the inside fender and then weld the two back together. And obviously cant go very far because of where the door starts, but should give you about an inch I'd say.
Attached Thumbnails trimming help-fendercutting038.jpg
Reply
Old Nov 6, 2013 | 04:20 PM
  #7
arizonacc's Avatar
Thread Starter
Member

Joined: Dec 2012
Posts: 141
Likes: 0
From: Moundridge KS
Year: 1994
Model: Cherokee
Engine: 4.0
Default

How do i make bumbstops?
