Trans cooler lines
I got a trans cooler from the yard and I know I ll buy new rubber hoses.
I see there's quick discos on metal tubes to the rubber lines. How would I clamp the new hoses to it if I saw the metal ends off ? What did u guys do when u installed the trans cooler?
I see there's quick discos on metal tubes to the rubber lines. How would I clamp the new hoses to it if I saw the metal ends off ? What did u guys do when u installed the trans cooler?
#2
CF Veteran
Thread Starter
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0
Also would it be ok if I set the trans cooler vertical with the hose connections on the bottom instead of horizontal with hose connections on the side?
#3
CF Veteran
Join Date: Feb 2011
Location: Long Beach, Ca
Posts: 3,500
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
You'll need 3/8" ID rubber hose. You can mount it any way you like, I did the same thing and the fittings on the trans cooler are vertical pointing down.
#4
CF Veteran
Thread Starter
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0
What about the metal tubes coming from radiator and the transmission. They have quic disconnects and I wouldn't fit the tubes over it. I probably would have to cut the ends off but what can I do to keep the rubber hoses from slipping off? I think two clamps probably won't be enough
#6
CF Veteran
Thread Starter
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0
Should I braze a ring on the end of tube after cutting so the rubber hose would have something to slip over and then clamped to?
#7
CF Veteran
Join Date: Feb 2011
Location: Long Beach, Ca
Posts: 3,500
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6

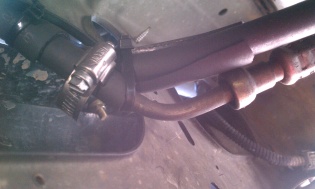

The quick disconnect line was cuz on the tubing and the other was cut back far enough to route the new hose from. I left the old tubes in place in case I ever want to run the original and aux cooler together.
Trending Topics
#9
CF Veteran
Join Date: Feb 2011
Location: Long Beach, Ca
Posts: 3,500
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
If you're concerned about the lines blowing off, you can always flare the ends and use compression fittings and barb fittings
#10
Senior Member
Join Date: Nov 2012
Location: Tx
Posts: 999
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: I-6
