Originally Posted by desertdog
I'd love to help you out as well, but apparently any tips, advice, or insight into the wide world of welding is construed to mean I think I'm the only one on the board who knows how to weld. And diesel dan is right, he definitely likes to use lots of heat. Speaking of heat, that is generated by amperage. On a typical MIG welder, when you increase the amperage, the wire speed also increases. The voltage will affect penetration. If you have too much wire and not enough voltage, the wire won't melt fast enough and it will push against the gun and generally not weld nice. If you have too much voltage, the wire will burn back and the arc won't stay continuous. I like to set my voltage/wire so that i get just enough filler to maintain the arc. Makes a flatter weld. I don't like puffy caterpillar welds. Yep, that means only I know how to set a machine and run a bead. Just ask Trev1006. Everyone knows that Canadians can't weld. And what happened to them all being nice?
Newbie
Joined: Apr 2012
Posts: 12
Likes: 0
From: Lufkin, Texas
Year: 1996
Model: Cherokee
Engine: 4.0L HO
I will try and get this back on topic!!!
If I get say the small HF welder to do floor patches, or weld small tabs, holes in sheet metal, etc,
1) Is there a general purpose wire that Lincoln makes for general auto type welding?
2) Is it ok to use an extension cord on an 110v machine?
If I get say the small HF welder to do floor patches, or weld small tabs, holes in sheet metal, etc,
1) Is there a general purpose wire that Lincoln makes for general auto type welding?
2) Is it ok to use an extension cord on an 110v machine?
CF Veteran
Joined: Jul 2011
Posts: 1,045
Likes: 1
From: Oceanside So Cal
Year: 88
Model: Cherokee (XJ)
Engine: 4.0 renix
I will try and get this back on topic!!!
If I get say the small HF welder to do floor patches, or weld small tabs, holes in sheet metal, etc,
1) Is there a general purpose wire that Lincoln makes for general auto type welding?
gas machine or flux?
2) Is it ok to use an extension cord on an 110v machine?
Yes...get as short as possible..and the heaviest guage you can get...try and use a kitchen outlet if possible...many are 20 amp rated verses your standard 15 amp.
If I get say the small HF welder to do floor patches, or weld small tabs, holes in sheet metal, etc,
1) Is there a general purpose wire that Lincoln makes for general auto type welding?
gas machine or flux?
2) Is it ok to use an extension cord on an 110v machine?
Yes...get as short as possible..and the heaviest guage you can get...try and use a kitchen outlet if possible...many are 20 amp rated verses your standard 15 amp.
Seasoned Member
Joined: Aug 2011
Posts: 349
Likes: 0
From: Tunkhannock PA
Year: 99
Model: Cherokee
Engine: 4L
Home depo has ratings on there extension cords for how long what gauge will support what amp. I got a 20 or 25 for like 35$ it also is able to run my air compressor which wouldnt run on a regular household ext cord.
Seasoned Member
Joined: Dec 2010
Posts: 275
Likes: 0
From: Castle Rock
Year: 1992
Model: Cherokee
Engine: 4.0 high output
Hey I was looking into getting a welder, and I found a 90amp flux welder, is this worth my time, I am a first time welder, an no nothin about them, thanks for your help.
BTW here is the link for the welder I found: http://www.harborfreight.com/welding...der-68887.html
BTW here is the link for the welder I found: http://www.harborfreight.com/welding...der-68887.html
Senior Member
Joined: Jan 2011
Posts: 645
Likes: 1
From: Dalton, MA
Year: 1998
Model: Cherokee
Engine: 4.0 H.O. 180K miles
Yes it's worth your time, I've been using mine for over a year now and ive built a roof rack, bumper, tire carrier, welded new rockers on, repairs holes on my floor, and a few other small projects. It is a very capable machine for the money is surprisingly reliable. Once you learn on this machine you can decide if you want cleaner mig welder, or something more powerful. Great machine for beginners.
Seasoned Member
Joined: Dec 2010
Posts: 275
Likes: 0
From: Castle Rock
Year: 1992
Model: Cherokee
Engine: 4.0 high output
Yes it's worth your time, I've been using mine for over a year now and ive built a roof rack, bumper, tire carrier, welded new rockers on, repairs holes on my floor, and a few other small projects. It is a very capable machine for the money is surprisingly reliable. Once you learn on this machine you can decide if you want cleaner mig welder, or something more powerful. Great machine for beginners.
Thanks, that is exactly what i was looking for!
Senior Member
Joined: Dec 2009
Posts: 682
Likes: 0
From: Elk River, Minnesota
Year: 1989
Model: Cherokee
Engine: 4.0

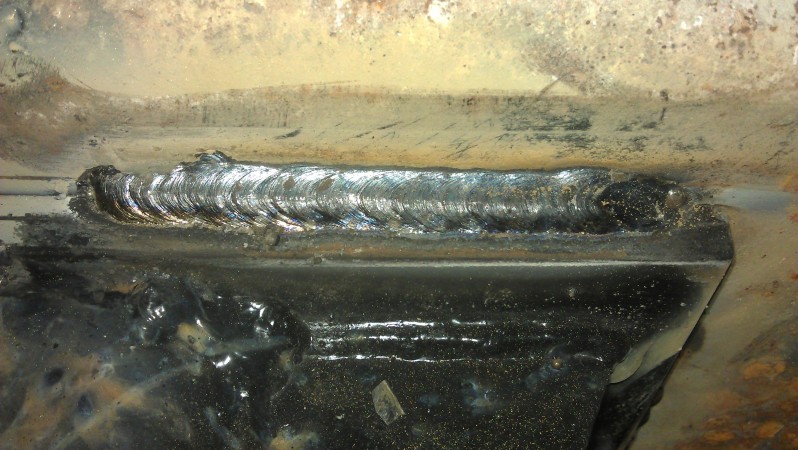

Looks good but one would really only know with an X-ray or by cutting it. I would cut it since its a practice weld and it will tell you what your welds are really like.
Seasoned Member
Joined: Aug 2011
Posts: 349
Likes: 0
From: Tunkhannock PA
Year: 99
Model: Cherokee
Engine: 4L
Yes it's worth your time, I've been using mine for over a year now and ive built a roof rack, bumper, tire carrier, welded new rockers on, repairs holes on my floor, and a few other small projects. It is a very capable machine for the money is surprisingly reliable. Once you learn on this machine you can decide if you want cleaner mig welder, or something more powerful. Great machine for beginners.
Get the black one blue are left over old models, the new one has some improvements,i love mine
