TOTM intake modifications
CF Veteran
Joined: Sep 2010
Posts: 4,968
Likes: 0
From: Salt Lake City, UT
Year: 2000
Model: Cherokee
Engine: 4.0L
CF Veteran
Joined: Jan 2011
Posts: 1,635
Likes: 0
From: Virginia
Year: 1999
Model: Cherokee
Engine: 4.0

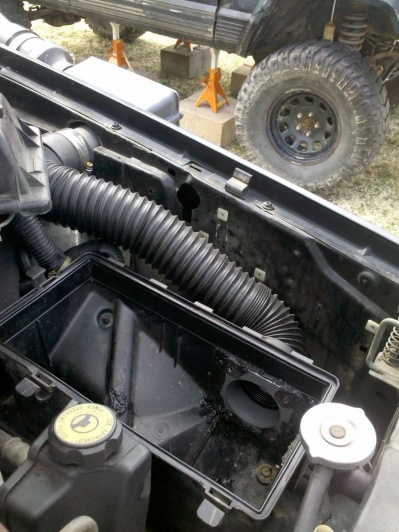

I've had my build thread up on my smorkel build for a while but I'll go ahead and post it up here for a quick reference guide.
If you want more detailed info on it click on my build thread sig.
Stock air in take box with a K&N drop in filter.
If you want more detailed info on it click on my build thread sig.
Stock air in take box with a K&N drop in filter.
Last edited by aquickmopar; Oct 20, 2011 at 10:18 AM.
CF Veteran
Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Senior Member
Joined: Mar 2011
Posts: 770
Likes: 1
From: VA
Year: 2000
Model: Cherokee (XJ)
Engine: 4L, 6 cylinder, 190 hp, 225 ft lp torque
Hey Gorillaxj, thanks for posting the link to my thread. I didn't know how to do that but have figured it out now. Another poster asked about performance increases for cold air (fresh air) intakes. I'm going to check gas mileage and will post it, but that will be awhile. The reason I did the fresh air intake was because of how hot it gets under the hood when crawling; it looks good too
. I don't do the really deep water (mud) thing, but my air intake has been raised 10 - 11 inches.
. I don't do the really deep water (mud) thing, but my air intake has been raised 10 - 11 inches.
CF Veteran
Joined: Dec 2010
Posts: 9,897
Likes: 2
From: shawnee,ks
Year: 1993
Model: Cherokee
Engine: 4.0
Forgot to ask this before, this pertains to the the guys that ditch the stock air box and don't get a cai. How do you still retain the proper function of the pcv and suck on the valve cover without them connecting to the air box?
☠ CF Sheriff ☠
Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
you would have to get a small filter for the CCV inlet. There's no way around connecting the charcoal canister tube to the intake
CF Veteran
Joined: Sep 2009
Posts: 6,322
Likes: 6
From: Summerville, Ga
Year: 1995
Model: Cherokee
Engine: 2.5 4 cyl.
o reillys sells vaccum connects for like 7 dollars. they go on the end of the the line, and a connector that goes into the tube. get a piece of 3" thin pvc and and use it, connect it to the rubber tube and put the filter on the pvc. the kit comes with hole saws made to cut the correct size holes so just cut the hole and put the grommit in. look at my cai to see what im talking about. Very easy and cheap as hell.
CF Veteran
Joined: Dec 2010
Posts: 1,234
Likes: 1
From: Finger Lakes Region NY
Year: 1990
Model: Cherokee
Engine: 4.o
CF Veteran
Joined: Jul 2011
Posts: 4,521
Likes: 1
From: JOCO
Year: 1999
Engine: 4.0 Inline 6
my cowl snorkel
its a piece of high pressure hose pipe. just cut a hole in the air box for a tight fit. silicone it, then cut a hole in the cowl.
simple, easy and it works perfect.
its a piece of high pressure hose pipe. just cut a hole in the air box for a tight fit. silicone it, then cut a hole in the cowl.
simple, easy and it works perfect.
☠ CF Sheriff ☠
Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts

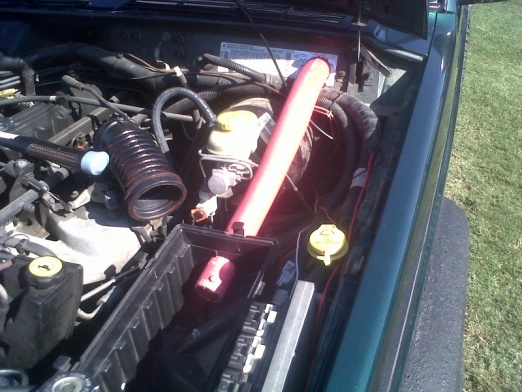

my cowl snorkel
Attachment 72878
its a piece of high pressure hose pipe. just cut a hole in the air box for a tight fit. silicone it, then cut a hole in the cowl.
Attachment 72879
simple, easy and it works perfect.
Attachment 72878
its a piece of high pressure hose pipe. just cut a hole in the air box for a tight fit. silicone it, then cut a hole in the cowl.
Attachment 72879
simple, easy and it works perfect.
CF Veteran
Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Originally Posted by dukie564
dude..that's way small. Look at the size of your stock intake hose to your new air inlet hose. You're going to seriously starve your engine for air at higher RPMs.
