Tooth pattern check

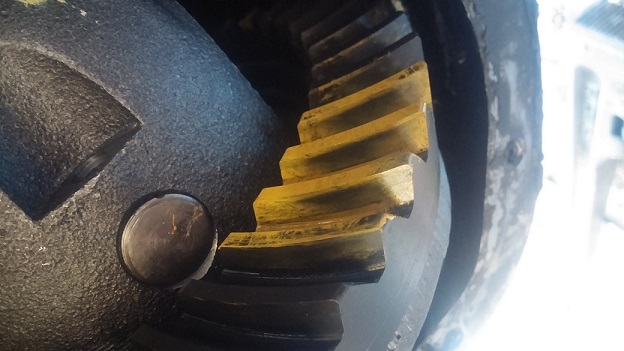

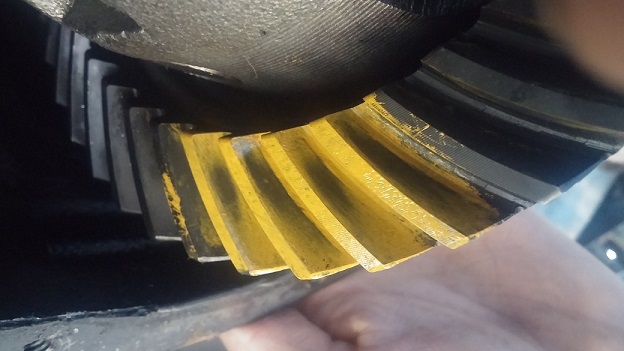

This is the new ring and pinion with factory shims.
Backlash is pretty tight at .0035
Would this be a good pattern if my backlash was more loose? Or does the pattern need to be more spread out?
Backlash is pretty tight at .0035
Would this be a good pattern if my backlash was more loose? Or does the pattern need to be more spread out?
#2
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
I think that is a pretty decent pattern. I'd run it if the BL is in spec. Just make sure your bearings are pressed on correctly and add any other shims to add carrier preload if applicable to the axle you're working on.
#3
Seasoned Member
Join Date: Apr 2011
Location: Yuma
Posts: 420
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0, APN header & 2.5" exhaust
It's been a few years since I set up gears, but isn't 0.0035 a little tight for back lash? Aren't you looking for a little more around 0.010"? Correct me if I'm wrong
#4
Member
Thread Starter
Join Date: Oct 2010
Location: Liberal, Kansas
Posts: 163
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
I believe it is 6 to 10 thousandths. This is with stock shims, but I'm waiting on a bearing before I mess with adjusting anything
