Sway bar bracket help

Thread Tools

Search this Thread

Old Nov 16, 2021 | 10:49 PM
  #1
mmp's Avatar
mmp
Thread Starter
Newbie

Joined: Nov 2017
Posts: 13
Likes: 0
From: WA
Year: 1996
Model: Cherokee(XJ)
Default Sway bar bracket help

Last December I upgraded the steering and suspension on my XJ. It had a Rough Country 4" lift on it when I bought it and I upgrade to IRO long arms. At the same time I installed a hydroassist steering system that I got from a guy that had wrecked his XJ. With the new steering system we had to cut off the sway bar brackets. I've been driving the jeep without the sway bars but would like to use them again since there is quite a bit of body roll. I have been looking at the different backets but not sure which ones will work with my set-up. I looked at stinkyfab and ruffstuff but from the pictures I couldn't tell if they would hit/interfere with the tie rod or drag link. Clayton offroad has a bracket that welds to the knuckle which looks like it would work but it's quite expensive. I'll try to post pictures of my set-up and links to the brackets.

Driver's side

Passenger side
Clayton Offroad bracket
Stinkyfab bracket

Ruffstuff bracket


Reply
Old Dec 6, 2021 | 06:52 PM
  #2
4.3L XJ's Avatar
CF Veteran

Joined: Aug 2008
Posts: 6,588
Likes: 495
From: Chico, CA
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

You are going to have to do some fabrication. The lower brackets on the axle have been cut off. I am guessing he did that when he upgraded the steering
Reply
Old Dec 6, 2021 | 07:26 PM
  #3
Very Red XJ's Avatar
Senior Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Jun 2019
Posts: 642
Likes: 183
From: Northern California
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 w/ Banks header & K&N intake
Default

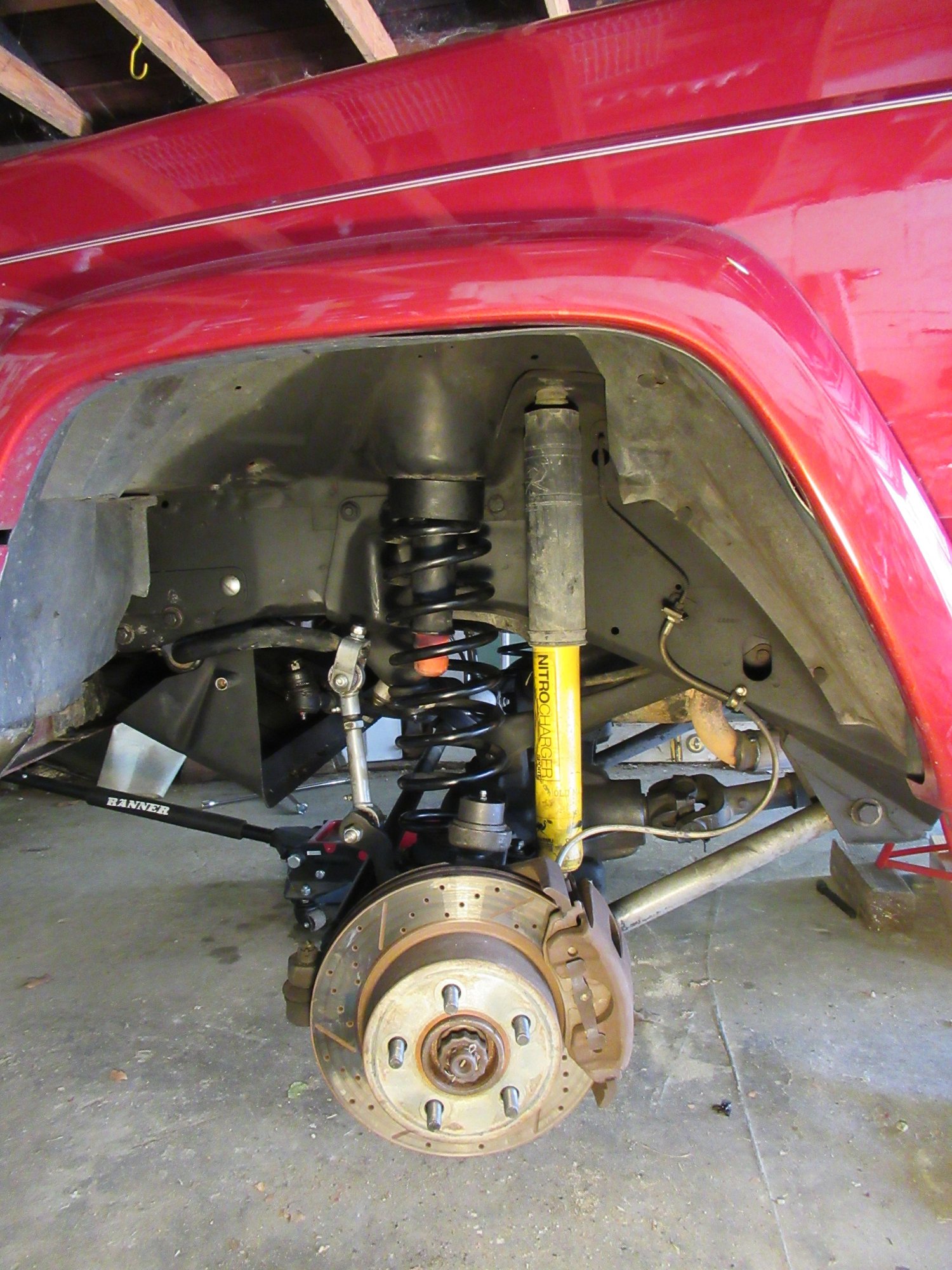

You can see the stock bracket coming up to meet the sway-bar disconnect in this image - you'll have to fabricate one that works with your steering - perhaps, a trip to a junk yard to get the stock fabrication and start working on it with more metal to grab for your fabrication. With a 4 " lift you may wish to up-grade to a Grand Cherokee sway bar as well
