Default SUPER Budget Lift

1989 XJ 4.0L I-6 Limited with tow hitch

My mechanic can get me 31"s but I need a lift first obviously. I am on a super tight budget but it is cheaper to get the 31's than new tires and replace them with bigger ones later so I need help on deciding exactly what I need for a lift for 31" tires. And we will be trimming the body also and if anyone has done a super budget lift using even JY parts I would love to hear how you did it. Thanks!!
Old 01-11-2016, 12:25 PM
  #2
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes on 14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Spend $438 now on a Rustys 3" full leaf/coil/shock/hardware budget lift or.......Plan on spending a lot more along the way going the route your looking at, like the man says pay me now or pay me later a lot more!


If those are 31x10:50 you will need new wheels also so the tires won't hit the frame or LCA's a 15x8" with 3.75-4" of BS.

Last edited by Fred/N0AZZ; 01-11-2016 at 12:28 PM.
Old 01-11-2016, 12:35 PM
  #3
Senior Member
Thread Starter

LiamLikeNeeson's Avatar

Join Date: Nov 2014
Location: Los Angeles, CA
Posts: 766
Likes: 0
Received 5 Likes on 4 Posts
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

Originally Posted by Fred/N0AZZ
Spend $438 now on a Rustys 3" full leaf/coil/shock/hardware budget lift or.......Plan on spending a lot more along the way going the route your looking at, like the man says pay me now or pay me later a lot more!


If those are 31x10:50 you will need new wheels also so the tires won't hit the frame or LCA's a 15x8" with 3.75-4" of BS.
So it's not a good idea to do the Bastard Pack leafs with the ZJ front coils? And then buy the rest of the stuff new?
Old 01-11-2016, 02:44 PM
  #4
CF Veteran

toasterknight's Avatar

Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes on 4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by LiamLikeNeeson
So it's not a good idea to do the Bastard Pack leafs with the ZJ front coils? And then buy the rest of the stuff new?
That is an option, but you end up replacing it all later anyways. Spend the money once and cry once.
Old 01-11-2016, 02:47 PM
  #5
Senior Member
Thread Starter

LiamLikeNeeson's Avatar

Join Date: Nov 2014
Location: Los Angeles, CA
Posts: 766
Likes: 0
Received 5 Likes on 4 Posts
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

Originally Posted by toasterknight
That is an option, but you end up replacing it all later anyways. Spend the money once and cry once.
Ok. I saw a lift kit online for $250 with shocks, coils, leaf springs and the u joints and all so I'll look into that
Old 01-11-2016, 11:46 PM
  #6
Senior Member

Tsaani97xj's Avatar

Join Date: May 2013
Location: Maryland
Posts: 681
Likes: 0
Received 28 Likes on 23 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

$250 with all of that is going to be an AAL (add a leaf) not new complete packs. Xj springs are too soft for using AAL and will warp or sag in a short amount of time.

A bastard pack (s10/XJ), new coils, JK Rubicon takeoff shocks and an adjustable track bar is what I would suggest on a tight budget for a starter lift and reasonable ride.

To go even cheaper but not as good. XJ/XJ bastard pack, two inch coil spacers, JK Rubicon takeoffs, redrilled stock track bar and fender trim will let you run the 31s. Also washers on the steering stops to stop the tires rubbing the lower control arms at full lock.

Seriously though cheap always ends up more expensive than quality over time.
Old 01-12-2016, 12:17 AM
  #7
Senior Member
Thread Starter

LiamLikeNeeson's Avatar

Join Date: Nov 2014
Location: Los Angeles, CA
Posts: 766
Likes: 0
Received 5 Likes on 4 Posts
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

The kit I saw had 4 shocks and 2 coils along with the AAL I believe. But I think I might get a set of 4 Rough Country shocks and maybe do an AAL with the adjustable shackles and try to find some 3" lift coils off of a Cherokee that was scrapped (or just spacers I the current springs or would that limit travel length?)
Old 01-12-2016, 06:44 AM
  #8
CF Veteran

jay_sco's Avatar

Join Date: Dec 2011
Location: IE (SoCal)
Posts: 1,080
Likes: 0
Received 6 Likes on 5 Posts
Year: 1994 SE
Model: Cherokee
Engine: 4.0
Default

C'mon Liam, you've been here long enough to know better. I have to ask, what's this smoking deal on 31s? It must be great for you to want to throw together a subpar lift super quick. And you still haven't addressed the wheel issue, 7" rim, 5" backspace, rubbing LCAs.
If you MUST get bigger tires, and MUST lift it NOW! Why not go with 30x9.5 and a BB? The BB may be just a couple bucks more than a JY lift, but would be a lot easier than rebuilding a leaf pack, removing coils in the dirt, and having a questionable ride. http://www.rustysoffroad.com/rustys-...r-shackle.html
With a BB you should be able to retain the stock track bar, maybe just relocate brake lines, use your shocks for the time being, etc.
Old 01-12-2016, 09:19 AM
  #9
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes on 14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

The Rustys kit is the cheapest kit with quality full leaf and coils made in NA NOT CHINA and that kit isn't junk as you should know also! All you will need extra as with ANY 3" kit is an Adj. Track Bar so plan on one of those. Then with trimming you can run 33x12:50's easy.
Old 01-12-2016, 10:14 AM
  #10
Senior Member
Thread Starter

LiamLikeNeeson's Avatar

Join Date: Nov 2014
Location: Los Angeles, CA
Posts: 766
Likes: 0
Received 5 Likes on 4 Posts
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

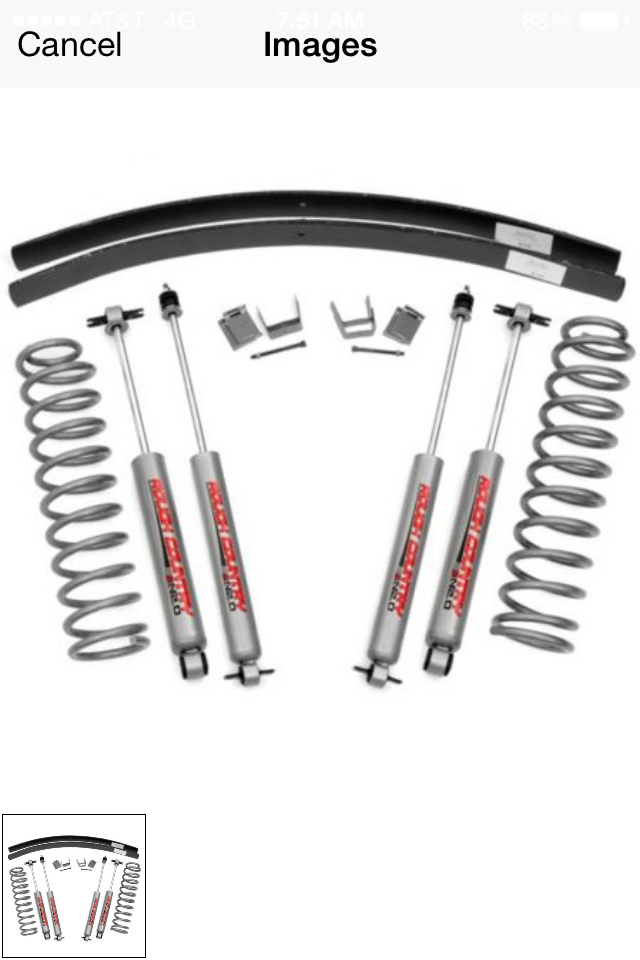

This is the Rough Country 3" lift. I know it's AAL but I will get the rest of the leafs replaced once I have the funds. This kit replaces the parts that I need as soon as I can because my shocks are going out.
Attached Thumbnails SUPER Budget Lift-photo4294966912.jpg
Old 01-12-2016, 10:44 AM
  #11
CF Veteran

jay_sco's Avatar

Join Date: Dec 2011
Location: IE (SoCal)
Posts: 1,080
Likes: 0
Received 6 Likes on 5 Posts
Year: 1994 SE
Model: Cherokee
Engine: 4.0
Default

I just gave away 4 good shocks and 4 good tires. I posted here, nobody local seemed interested. Just stock stuff but would have held you over for long enough to save some cash.
I'm still waiting to hear of this grand deal on 31s that has you so eager to choose the cheapest lift possible just to fit them. If it's not a deal then why not just browse CL for some take-off wheels/tires, or a local used tire shop?
Old 01-12-2016, 10:50 AM
  #12
Senior Member
Thread Starter

LiamLikeNeeson's Avatar

Join Date: Nov 2014
Location: Los Angeles, CA
Posts: 766
Likes: 0
Received 5 Likes on 4 Posts
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

Originally Posted by jay_sco
I just gave away 4 good shocks and 4 good tires. I posted here, nobody local seemed interested. Just stock stuff but would have held you over for long enough to save some cash.
I'm still waiting to hear of this grand deal on 31s that has you so eager to choose the cheapest lift possible just to fit them. If it's not a deal then why not just browse CL for some take-off wheels/tires, or a local used tire shop?
They are take-off wheels. They are currently on a TJ that my mechanic is lifting and the guy will be buying new bigger tires so my mechanic is going to try to have him sell them to me. They will be cheaper than buying basic GoodYear Wrangler Radials
Old 01-12-2016, 11:32 AM
  #13
CF Veteran

jay_sco's Avatar

Join Date: Dec 2011
Location: IE (SoCal)
Posts: 1,080
Likes: 0
Received 6 Likes on 5 Posts
Year: 1994 SE
Model: Cherokee
Engine: 4.0
Default

You asked for opinions, and this is what you got...

Originally Posted by Fred/N0AZZ
like the man says pay me now or pay me later a lot more!
.
Originally Posted by toasterknight
Spend the money once and cry once.
Originally Posted by Tsaani97xj
Seriously though cheap always ends up more expensive than quality over time.
...and insist on going your own way. Do what you gotta do.

Geaneraly, in life, you can have it:
A) cheap
B) now
C) right

...pick 2.
Old 01-12-2016, 11:41 AM
  #14
Senior Member
Thread Starter

LiamLikeNeeson's Avatar

Join Date: Nov 2014
Location: Los Angeles, CA
Posts: 766
Likes: 0
Received 5 Likes on 4 Posts
Year: 1989 Limited
Model: Cherokee(XJ)
Engine: I-6 4.0L AMC Renix
Default

Ok. Thanks guys. Going to follow up on this writing job for a Tire and wheel selling business for social media and forums. Hopefully I can get the extra income to do the lift as soon as possible.
Old 01-12-2016, 12:42 PM
  #15
CF Veteran

PurpleToxin505's Avatar

Join Date: Sep 2013
Location: Albuquerque, NM
Posts: 2,820
Likes: 0
Received 4 Likes on 4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Why dont you just trim, and adjust your turning stops for now so you can run the 31s stock. then save up for a nice lift, like RE, MetalCLoak, OME, ect..
