Still having CB troubles...
Good evening y'all. Today I switched out my Wilson fiberglass antenna for the radioshack 102" whip and their heavy duty spring. I heard some skip on 6 but it was so faint it could not be understood. The mount is just above the taillight so there is more than 2/3 of the antenna above the roof. I dunno if it makes a difference but I'm running the stud, lock washer, spring, lock washer, antenna. Also, when ever I have the FM radio on, I am picking up a whole lot of static. Any suggestions on what to do here?
#2
CF Veteran
Join Date: Oct 2011
Location: Warrenton MO
Posts: 1,467
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.7L I6
where is your power wire connected?
spend the money and get the ball mount. gotta drill holes in quarter but it works great!!!
whats your SWR meter read at 1 40 and 20? dont forget to calibrate it at 20
spend the money and get the ball mount. gotta drill holes in quarter but it works great!!!
whats your SWR meter read at 1 40 and 20? dont forget to calibrate it at 20
#3
CF Veteran
Thread Starter
Join Date: Aug 2010
Location: The Florida State University
Posts: 8,387
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: I-6 4.0 L
The mount I have is grounded and works fine. Power wire is run to the battery however, I still hear engine noise that is easily squelched out. And SWR meter... haven't gotten on nor tested this new setup. But, since the 1/4 of a wave is 108" and this set up is about 106", no tuning SHOULD be necessary.
#4
CF Veteran
Join Date: Oct 2011
Location: Warrenton MO
Posts: 1,467
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.7L I6
right but you gotta make sure everythings right.
i have a 102 and thought everything was right but i had a sliver of metal toushing the power on the base and thats what it was.
i have a 102 and thought everything was right but i had a sliver of metal toushing the power on the base and thats what it was.
#7
Seasoned Member
Join Date: Dec 2011
Location: Alabama
Posts: 256
Likes: 0
Received 1 Like
on
1 Post
Year: 1988
Model: Cherokee
Engine: 4.0
You always have to set the SWR. If you have it set up right on that vehicle and swap it to another vehicle using all the exactly same components from the previous vehicle, the SWR still has to be tuned. Each vehicle/setup is differant.
Look at some CB forums and youtube if you havent already
Look at some CB forums and youtube if you havent already
Trending Topics
#8
Junior Member
Join Date: Nov 2011
Location: Tulsa OK
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
OK so your vehicle is the ground. Picture this. If the antenna is in the center it has a better ground plane. Also provide better heat shielding. Make sure there is no metal contact with any thing sept the ground for the antenna and the ground wire. Make sure all including the coax are not near any wires coming from the engine. Funny fact. If you have a bad wire on the alt or spark plug wire you will never get rid of engine noise. Bunch the extra coax in a non electrical area and make sure its just crammed in there not coiled. use the full 20' coax not the short stuff. The most important thing about a good CB system is a good ground.
#10
Seasoned Member
Join Date: Dec 2011
Location: Alabama
Posts: 256
Likes: 0
Received 1 Like
on
1 Post
Year: 1988
Model: Cherokee
Engine: 4.0
Make sure you have the plastic bushing on the antenna mount where the antenna screws in. That is there to make sure you dont ground out the "hot" side of the antenna. It will work without it but you might get squeeling when you key up. Although you might not hear it others will.
#11
CF Veteran
Thread Starter
Join Date: Aug 2010
Location: The Florida State University
Posts: 8,387
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: I-6 4.0 L
Originally Posted by UJSLOST
Make sure you have the plastic bushing on the antenna mount where the antenna screws in. That is there to make sure you dont ground out the "hot" side of the antenna. It will work without it but you might get squeeling when you key up. Although you might not hear it others will.
#14
CF Veteran
Thread Starter
Join Date: Aug 2010
Location: The Florida State University
Posts: 8,387
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: I-6 4.0 L
Originally Posted by ol'DixieJeep
where is your ground.
and yea 18ft is actually the most desirable length and dont coil it.
mines wired to my ingnition wire under the dash.
and yea 18ft is actually the most desirable length and dont coil it.
mines wired to my ingnition wire under the dash.
#15
CF Veteran
Join Date: Oct 2011
Location: Warrenton MO
Posts: 1,467
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.7L I6
ok. that sounds good. id switch it to the body. i did mine to the floor on the trans tunnel.
where is the coax wire grounded to? you need a really really good ground for these things. wire to bracket to paint isnt enough usually.

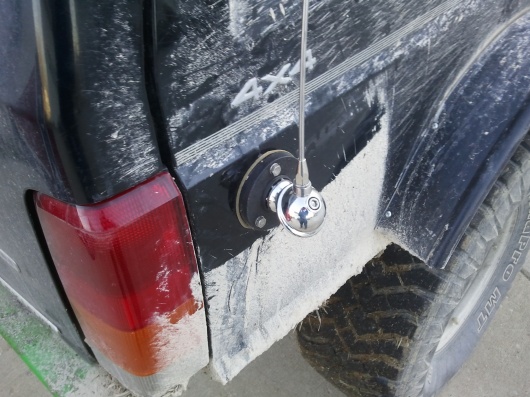

heres how i did mine. isolated power so you cant accidentally ground the antenna out and grounded to the body twice.
where is the coax wire grounded to? you need a really really good ground for these things. wire to bracket to paint isnt enough usually.
heres how i did mine. isolated power so you cant accidentally ground the antenna out and grounded to the body twice.
