Steering Setup Problems
I bought the Serious Offroad 1 Ton UTK setup and put it on. Well getting rid of that steering stabilizer has made all my problems come up. Anyway after the install I had an episode of DW going about 55. My heim joint for the track bar on the uni body side is a lil loose now, and the bushings for the quick discos on my sway bar got busted. Im trying to replace this stuff but I'm not sure which track bar to get and Im not sure how to tell which setup this is for parts. Steering is a lil sketchy. Already replaced both hub bearings

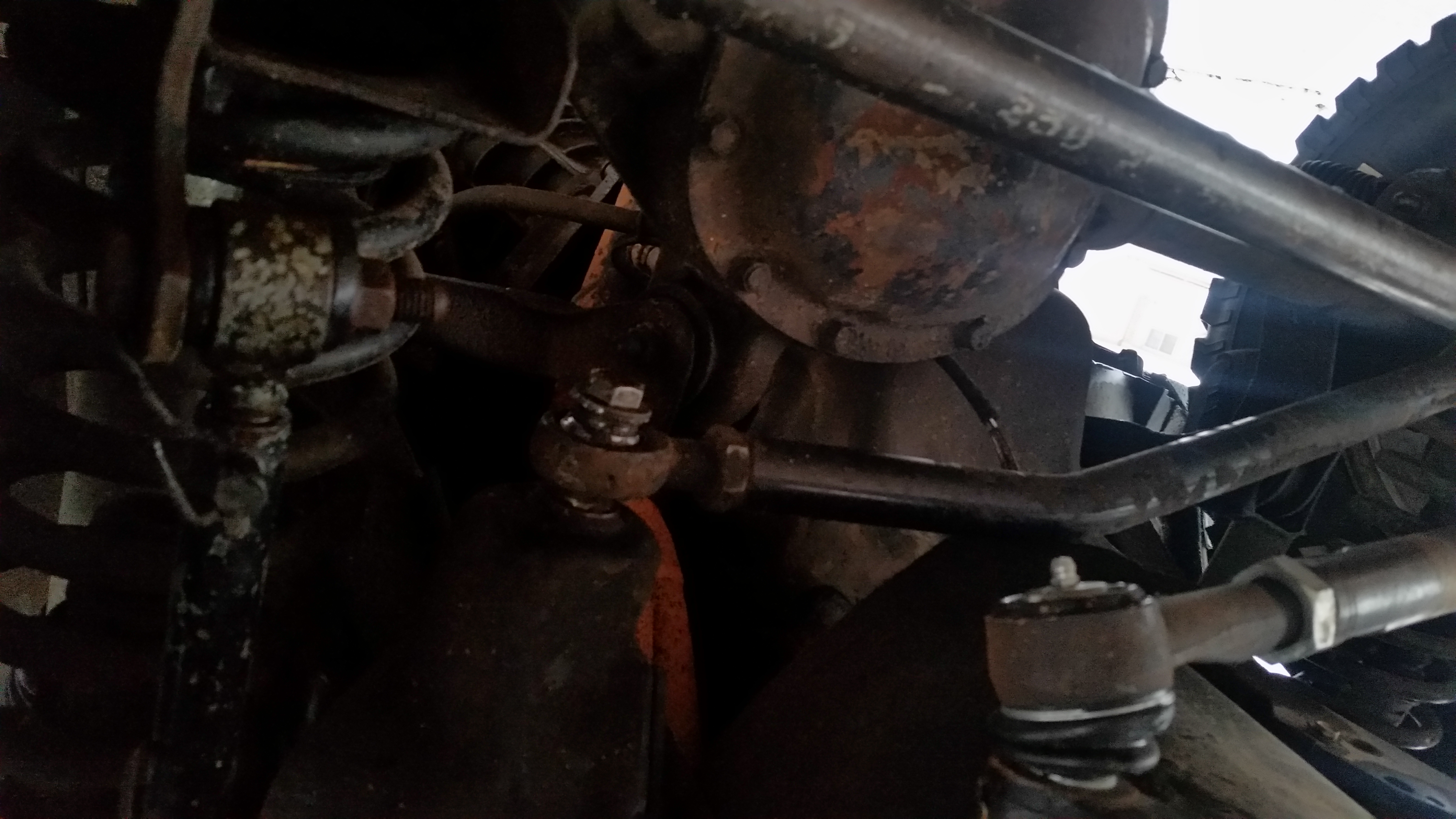

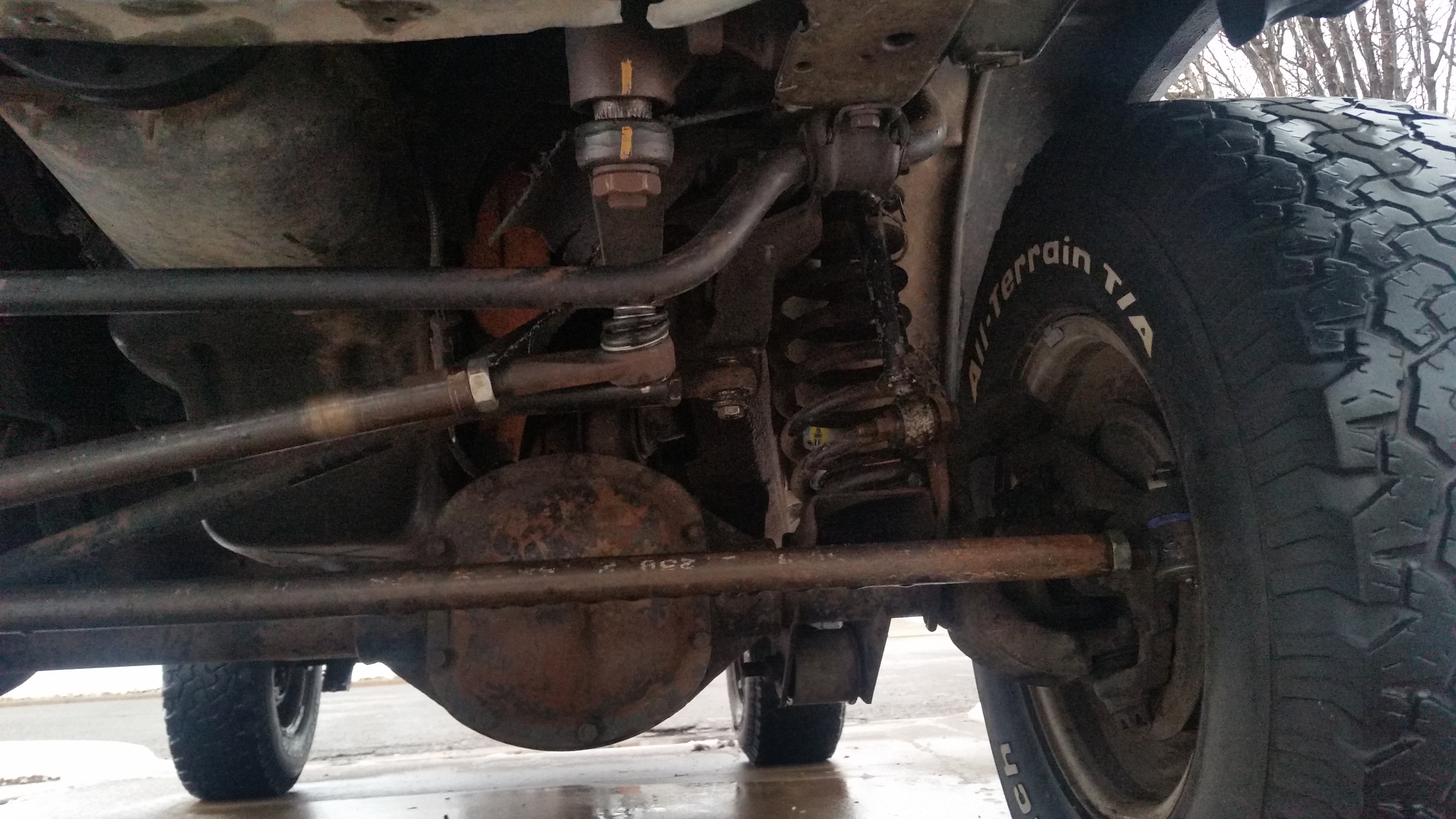

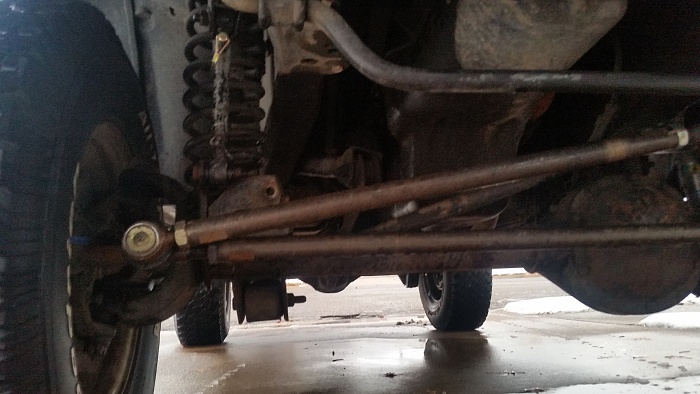

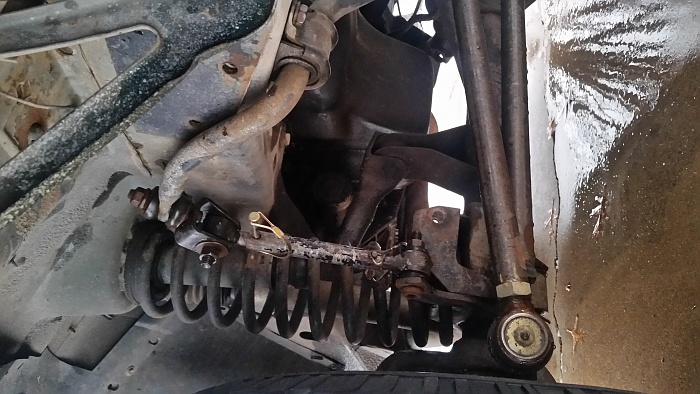

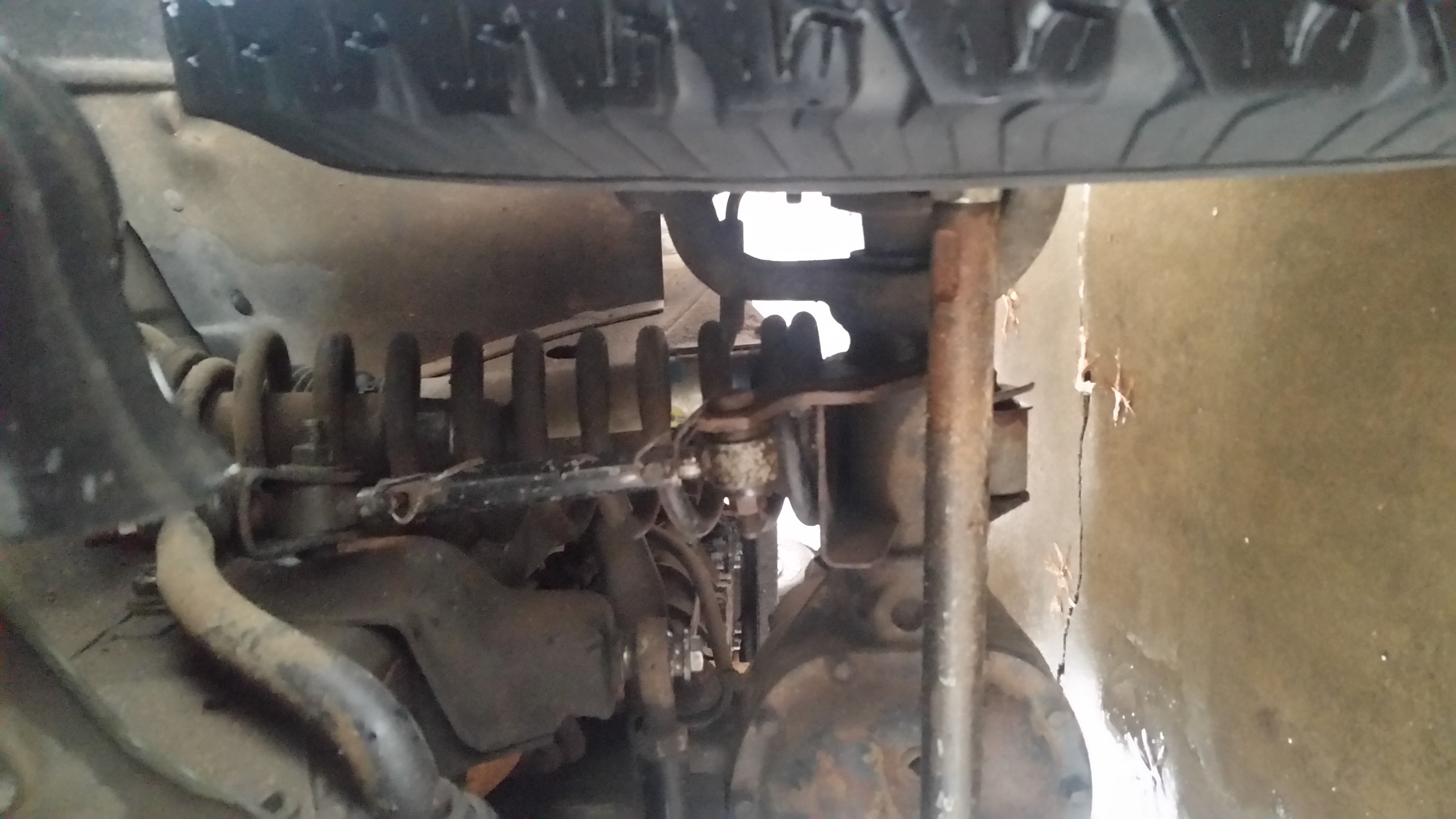

Anyone know what this track bar and sway bar is? Does my steering seem setup right as far as yall can tell from the pics? Sorry for the goofy perspective pics I can't turn em on my app
#2
CF Veteran
Join Date: Feb 2013
Location: Belton S.C.
Posts: 1,286
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
First thing I'd do is scrap that track bar and replace it with a IRO double shear bar and new bracket, then either cut those discos down to the proper legenth or buy new ones.
When was the last time you had it aligned?
How old are your ball joints?
When was the last time you had it aligned?
How old are your ball joints?
#3
Seasoned Member
Thread Starter
Join Date: Aug 2012
Location: Amarillo, Texas
Posts: 288
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0I
All my ball joints are new except for the ones on the knuckles but their in good shape. Latest alignment was after the hub bearing install. So by cut em down you mean the metal bars that have the holes for the pins correct? Is that top bushing setup coming from the sway bar supposed to be flat and not angled? They won't spin at all so I dunno if that rubber is seized and tight or what but I guess it's not supposed to be that way?
#5
CF Veteran
Join Date: Feb 2013
Location: Belton S.C.
Posts: 1,286
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
All my ball joints are new except for the ones on the knuckles but their in good shape. Latest alignment was after the hub bearing install. So by cut em down you mean the metal bars that have the holes for the pins correct? Is that top bushing setup coming from the sway bar supposed to be flat and not angled? They won't spin at all so I dunno if that rubber is seized and tight or what but I guess it's not supposed to be that way?
#6
Seasoned Member
Thread Starter
Join Date: Aug 2012
Location: Amarillo, Texas
Posts: 288
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0I
The sway bar should be at a slight angle, no where near as much as yours. You can cut and redrill the center tube to make them shorter. Unless you know how old the ball joints are, change them. A new set of Spicer joints cost less than $100 and only take a few hours to change. Just because they "look and feel good" doesn't mean that they are. BTW you only have 4 ball joints, two on each side of the axle holding the knuckle on. The rest are tie rod ends.
