Shackle bolt clearance problem

Old 03-15-2019, 05:59 PM
  #1
Junior Member
Thread Starter

windlover's Avatar

Join Date: Nov 2011
Location: Coarsegold, CA
Posts: 79
Year: 1998
Model: Cherokee
Engine: 4.0
Default Shackle bolt clearance problem

I should have titled this "Leaf Spring bolt clearance problem", can't change it now.

I am replacing all of the bushings on my leaf springs. One of them was totally trashed.

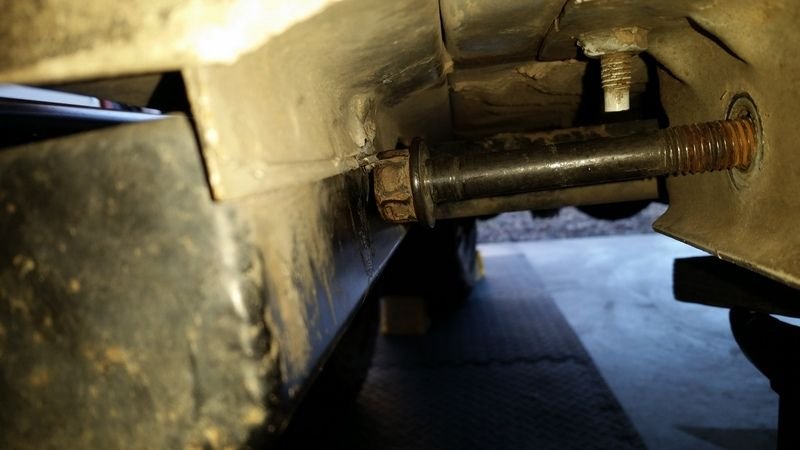

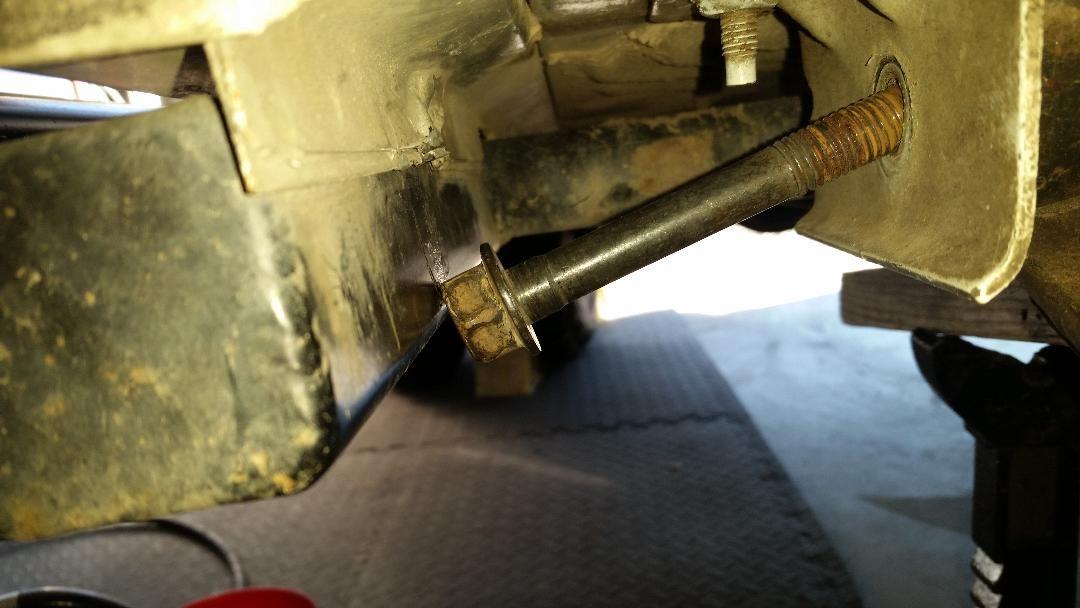

The problem that I am having is that the bolts in the front of the leaf spring won’t clear my rockbars. I have tried wiggling it in every conceivable direction and it still won’t clear. I have removed all of the other bolts holding the spring to allow more movement and still no luck.



I think that I need to start grinding on the rockbars to get a little more clearance. Would I be better off trying to drill a recess for the bolt?

Am I missing a better way to solve this problem?

Last edited by windlover; 03-15-2019 at 06:06 PM. Reason: Add drill question
windlover is offline
Old 03-15-2019, 06:30 PM
  #2
Senior Member

TRCM's Avatar

Join Date: Jan 2016
Location: Newport News, VA
Posts: 915
Year: 96 & 88 4 dr Cherokees
Default

A recess is the solution...probably the only real one

If you can get them out, you may be able to cut them short a little and still have full thread engagement in the frame, but also have them clear.


.

Last edited by TRCM; 03-15-2019 at 06:57 PM.
TRCM is online now
Old 03-16-2019, 05:34 AM
  #3
Junior Member

Cherokee4LIF3's Avatar

Join Date: Aug 2016
Posts: 33
Year: 1990
Engine: 4.0L I6
Default

Probably drilling a hole in the rocker to give room for the bolt to back out would suffice.
Cherokee4LIF3 is offline
Old 03-16-2019, 07:21 PM
  #4
Junior Member
Thread Starter

windlover's Avatar

Join Date: Nov 2011
Location: Coarsegold, CA
Posts: 79
Year: 1998
Model: Cherokee
Engine: 4.0
Default

OK, I worked it out. I got the bolt to a sharp angle after tipping the

spring and then took a grinder to the rockbar and made a notch to slide the bolt out. It wasn't coming out of there without the notch.
windlover is offline
Old 03-16-2019, 07:59 PM
  #5
Senior Member

TRCM's Avatar

Join Date: Jan 2016
Location: Newport News, VA
Posts: 915
Year: 96 & 88 4 dr Cherokees
Default

If you can cut 1/8" off that bolt and still get full thread engagement, it should be good
TRCM is online now
Old 03-17-2019, 02:50 PM
  #6
Junior Member
Thread Starter

windlover's Avatar

Join Date: Nov 2011
Location: Coarsegold, CA
Posts: 79
Year: 1998
Model: Cherokee
Engine: 4.0
Default

I cut off almost 1/4 inch. This left about 1/8 inch alignment guide. The bolt slipped right in and threads up nicely.
windlover is offline
Old 03-17-2019, 02:52 PM
  #7
Junior Member

Cherokee4LIF3's Avatar

Join Date: Aug 2016
Posts: 33
Year: 1990
Engine: 4.0L I6
Default

Congrats, Glad you got it done!
Cherokee4LIF3 is offline
Old 03-17-2019, 06:26 PM
  #8
Senior Member

TRCM's Avatar

Join Date: Jan 2016
Location: Newport News, VA
Posts: 915
Year: 96 & 88 4 dr Cherokees
Default

Cool, I knew the stock bolts were plenty long.......
TRCM is online now
