rough ride

Old 10-12-2011, 12:35 AM
  #1
Junior Member
Thread Starter

jeepcreep505's Avatar

Join Date: Oct 2011
Posts: 41
Likes: 0
Received 0 Likes on 0 Posts
Default rough ride

I have an 8 inch skyjacker lift on my xj but its with pro comp shocks. Is that why it rides so stiff? What will give me the smoothest ride?
Old 10-12-2011, 05:10 AM
  #2
CF Veteran

Donnie_K's Avatar

Join Date: Jun 2009
Location: Columbus, Ohio
Posts: 2,173
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
Default

long arms, and springs that aren't so big and stiff.
Old 10-12-2011, 08:01 AM
  #3
Senior Member

BigC9164's Avatar

Join Date: May 2010
Location: Austin, TX/ Atlanta, GA
Posts: 611
Likes: 0
Received 2 Likes on 2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Shocks make it ride nicer. long arms make it smother and handle better. but at 8" i am hoping you already have long arms. go with bilstiens. that will give you the best ride quality hands down! 5125 will do but if you want you can get the 5150s. they are about $25 more a shock.
Old 10-12-2011, 08:17 AM
  #4
CF Veteran

Donnie_K's Avatar

Join Date: Jun 2009
Location: Columbus, Ohio
Posts: 2,173
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
Default

Originally Posted by BigC9164
Shocks make it ride nicer. long arms make it smother and handle better. but at 8" i am hoping you already have long arms. go with bilstiens. that will give you the best ride quality hands down! 5125 will do but if you want you can get the 5150s. they are about $25 more a shock.
long arms make the ride nicer too... angles on the control arms are closer to parrallel to the ground, meaning more of the impacts from bumps are sent up your spring and shock rather than through the control arms to your unibody. Will even make a bigger difference than bilstien shocks. Though I agree with you, bilstiens are awesome.
Old 10-12-2011, 09:10 AM
  #5
Junior Member

Fasthawk99's Avatar

Join Date: Feb 2010
Posts: 56
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

rear shackle angle is the biggest problem with mine. I went to 4.5 inch lift with short arms, then long arms. Not too much of a different. Changed to bilsteins and not too much better. better each time but not what I was looking for. Shackle angle is my problem.
Old 10-12-2011, 09:14 AM
  #6
CF Veteran

TheJerm's Avatar

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501
Likes: 0
Received 4 Likes on 4 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default

What has been said covers it. Long arms, good shocks and a good shackle angle.

That being said having very tall and stiff springs dont help either, like leaf springs that look like U will ride like crap
Old 10-12-2011, 07:59 PM
  #7
Junior Member
Thread Starter

jeepcreep505's Avatar

Join Date: Oct 2011
Posts: 41
Likes: 0
Received 0 Likes on 0 Posts
Default

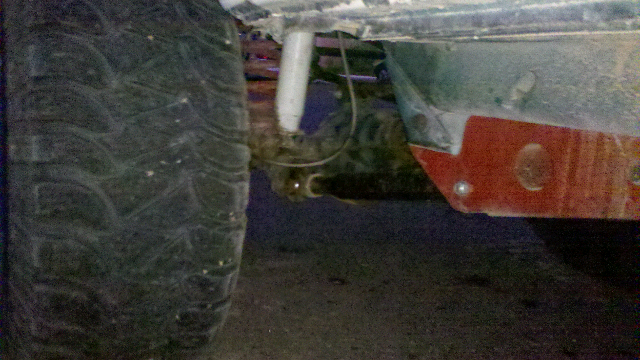

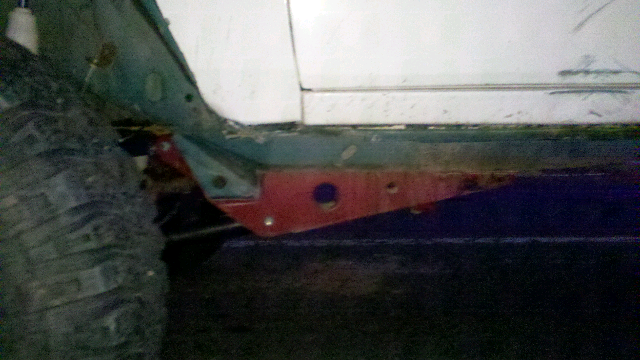

Well my control arms and shackles seem to be in a good angle, but I might be wrong. What do you guys think?

rough ride-forumrunner_20111012_185856.jpg



rough ride-forumrunner_20111012_185911.jpg



rough ride-forumrunner_20111012_185920.jpg
Old 10-12-2011, 08:18 PM
  #8
Member

Ryan1010xxx's Avatar

Join Date: May 2011
Location: Oxford, AL
Posts: 109
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Default

no your shackle should be close to a 45 degree angle.
Old 10-12-2011, 08:44 PM
  #9
CF Veteran

mr white's Avatar

Join Date: Aug 2011
Posts: 3,648
Likes: 0
Received 4 Likes on 4 Posts
Model: Cherokee
Default

Tires that are stiff as **** will make it ride worse as well.
Old 10-12-2011, 10:37 PM
  #10
Junior Member
Thread Starter

jeepcreep505's Avatar

Join Date: Oct 2011
Posts: 41
Likes: 0
Received 0 Likes on 0 Posts
Default

So should I get a shackle relocation bracket, I found one from rc. And I run my tires are at 25 psi
Old 10-13-2011, 04:01 AM
  #11
CF Veteran

jomps's Avatar

Join Date: Apr 2010
Location: knoxville, tn
Posts: 3,966
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 98 4.0 I6
Default

Originally Posted by jeepcreep505
So should I get a shackle relocation bracket, I found one from rc. And I run my tires are at 25 psi
yes get relocation to solve shackle angle
Old 10-13-2011, 09:41 AM
  #12
Newbie

Fai1ureByDesign's Avatar

Join Date: Oct 2011
Location: Orlando,FL
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

bilsteins and the shackle relocation will help but it seems to me that your springs and leafs are heavy duty which means really stiff. I'm thinkin w/ 6 or so months of driving it should be better.
Old 10-13-2011, 03:31 PM
  #13
Junior Member
Thread Starter

jeepcreep505's Avatar

Join Date: Oct 2011
Posts: 41
Likes: 0
Received 0 Likes on 0 Posts
Default

Ok cool thanks for all your help guys!
Old 10-27-2011, 12:49 PM
  #14
Junior Member
Thread Starter

jeepcreep505's Avatar

Join Date: Oct 2011
Posts: 41
Likes: 0
Received 0 Likes on 0 Posts
Default

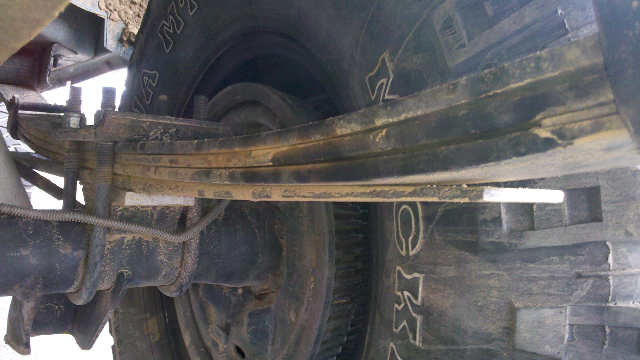

So what if I took out this bottom leaf spring? It doesn't seem like I need it.

rough ride-forumrunner_20111027_114904.jpg
