Rotating front Axle
#1
Old Skewl CF like a Sir
Thread Starter
Join Date: Feb 2008
Location: Fort Myers, FL
Posts: 4,355
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L High Output OBDII
Rotating front Axle
Alright, I know what needs to be done, I just have run out of ideas on how to do it.

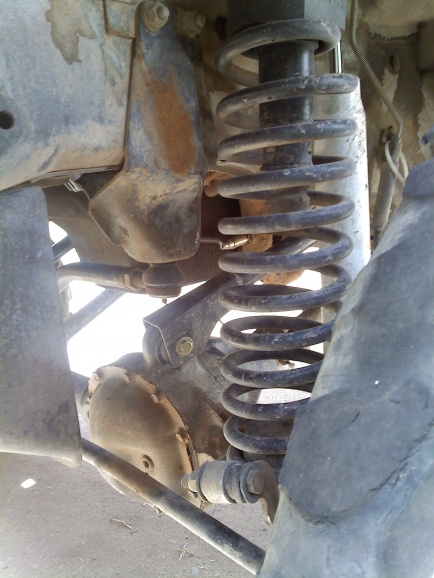

My front axle is pivoted forward, awesome drive line angle, but it's at the point the springs have a slight curve. I have full upper and lower adjustable control arms, but they kind of defy the purpose. I can set the lengths, but the axle has no way of getting to where I need them. Ive tried ratchet strapping, using a jack and stands, even ran a tow rope to the other Jeep and tried pivoting it.No luck.
I thought this was gonna be a quick fix, but it's really beaten me over the last couple months. Short of disconnecting the entire front suspension, I'm out of ideas.
Rustys adjustable upper & lowers, RC 4.5" springs, 2" coil spacers, RC trac bar.
Any ideas or insight is appreciated.
My front axle is pivoted forward, awesome drive line angle, but it's at the point the springs have a slight curve. I have full upper and lower adjustable control arms, but they kind of defy the purpose. I can set the lengths, but the axle has no way of getting to where I need them. Ive tried ratchet strapping, using a jack and stands, even ran a tow rope to the other Jeep and tried pivoting it.No luck.
I thought this was gonna be a quick fix, but it's really beaten me over the last couple months. Short of disconnecting the entire front suspension, I'm out of ideas.
Rustys adjustable upper & lowers, RC 4.5" springs, 2" coil spacers, RC trac bar.
Any ideas or insight is appreciated.
#2
Former Sponsor
Join Date: May 2010
Location: meriden Ct
Posts: 2,181
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Im confused. are your springs curved because the axle is not inline with the spring pocket? or is it actually rotated. mine have a curve but its because the arms are too short and the axle is to far back to be inline.
If you have adjustable arms just lengthen the lowers to rotate the pinion down. you can put a bottle jack under the steer arm to help rotate.
I have a feeling the axle is not where its supposed to be though. more than the rotation.
with that much lift the arms should be set pretty long. also let the axle droop some to take most of the spring preload out when trying to move it.
If you have adjustable arms just lengthen the lowers to rotate the pinion down. you can put a bottle jack under the steer arm to help rotate.
I have a feeling the axle is not where its supposed to be though. more than the rotation.
with that much lift the arms should be set pretty long. also let the axle droop some to take most of the spring preload out when trying to move it.
#4
Senior Member
Join Date: Feb 2011
Location: ohio
Posts: 575
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 i 6
I dont know if i really understand what your saying but....Are you setting the lca for a 4.5" lift? If so you would have to lengthen them to account for the 2" spacers.the uppers might need a little also but I wouldn't mess with them if your trying to roll the axle back. Definatly will help by taking the weight off the axle to help place it where you want it.
#5
CF Veteran
Join Date: Nov 2010
Location: Miami
Posts: 1,686
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
Patrick use the supplied stock bottle jack to push the axle into place to line up. Does that make sense?
I used the stock jack to push my axle away when I extended my LCAs.
I used the stock jack to push my axle away when I extended my LCAs.
#6
CF Veteran
Join Date: Jan 2009
Posts: 2,740
Likes: 0
Received 0 Likes
on
0 Posts
Year: 87
Model: Cherokee
Engine: 4.0
What does your caster angle measure? This is important cause it affests how your vehicle drives... Best way to rotate your axle like you are talking about is to remove your upper control arms adjust them for the proper length.. then use a bottle jack to get it to connect. hope that helps
Trending Topics
#8
Honorary Moderator
Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Likes: 0
Received 13 Likes
on
11 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Hate to say it, but you need to lengthen both the upper and lower arms.

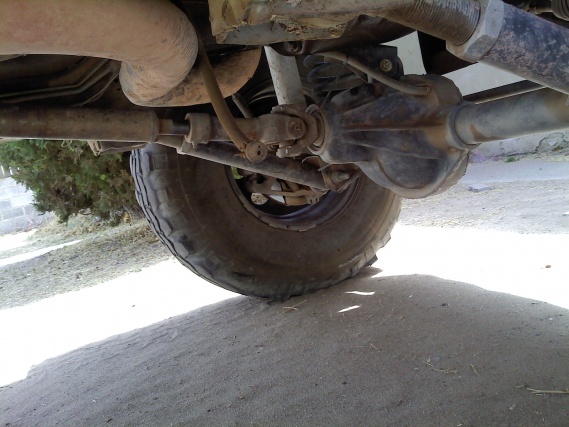

I had to extend mine pretty far to get them where I needed to: (2" wheel base stretch)
I had to extend mine pretty far to get them where I needed to: (2" wheel base stretch)
#11
Former Sponsor
Join Date: May 2010
Location: meriden Ct
Posts: 2,181
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
the entire axle looks pretty far forward. even with the axle twisted up some it wont correct that, you need to shorten both upper and lower, and shorten uppers a little more than lowers.
#13
Old Skewl CF like a Sir
Thread Starter
Join Date: Feb 2008
Location: Fort Myers, FL
Posts: 4,355
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L High Output OBDII
Thanks for the insight!!!! I knew I was closr, just couldn't put my finger on which way to go. And Freegdr, thanks for the PM buddy.
