renix stroker backfiring i need help
#1
Junior Member
Thread Starter
Join Date: Aug 2009
Location: california
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.6 stroker
renix stroker backfiring i need help
***UPDATE***
i just rebuilt the motor to a 4.6 stroker renix but now it wont run right it backfires and stumbles and pops out the rear like the timing is off but it is not. with the timing marks lined up and the distributer at the 1st spark plug its 180 degrees off so i fliped it 180 degrees and it fires up but does all the backfiring nonsence so i have redone the timing 4 times just to make sure i also have done a compresion test all the valves are opening and closing correctly the cps has been changed new wires new plugs new cap new roter what confuses me most is the fact its 180 degrees off with the timing marks lined up...
so here are things ive done a buddy of mine has a renix xj as well so we decided to swap a few parts to see if we could fix mine computer and ditributor map sensor have also turned the distributor one tooth at a time to see if could find the right timing but same issue
what i have and have not done on this build
pistons h802pc
cam stock
new lifters
reconditioned crank from 89 4.2 light crank
352 conecting rods
new melling oil pump
24lb injectors
cloyes double roller if it makes a difference
parts i reused all i did was clean them
head
intake manifold
exhaust manifold
throttle boddy
i just rebuilt the motor to a 4.6 stroker renix but now it wont run right it backfires and stumbles and pops out the rear like the timing is off but it is not. with the timing marks lined up and the distributer at the 1st spark plug its 180 degrees off so i fliped it 180 degrees and it fires up but does all the backfiring nonsence so i have redone the timing 4 times just to make sure i also have done a compresion test all the valves are opening and closing correctly the cps has been changed new wires new plugs new cap new roter what confuses me most is the fact its 180 degrees off with the timing marks lined up...
so here are things ive done a buddy of mine has a renix xj as well so we decided to swap a few parts to see if we could fix mine computer and ditributor map sensor have also turned the distributor one tooth at a time to see if could find the right timing but same issue
what i have and have not done on this build
pistons h802pc
cam stock
new lifters
reconditioned crank from 89 4.2 light crank
352 conecting rods
new melling oil pump
24lb injectors
cloyes double roller if it makes a difference
parts i reused all i did was clean them
head
intake manifold
exhaust manifold
throttle boddy
Last edited by justjerald; 02-06-2011 at 07:37 PM. Reason: forgot
#2
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

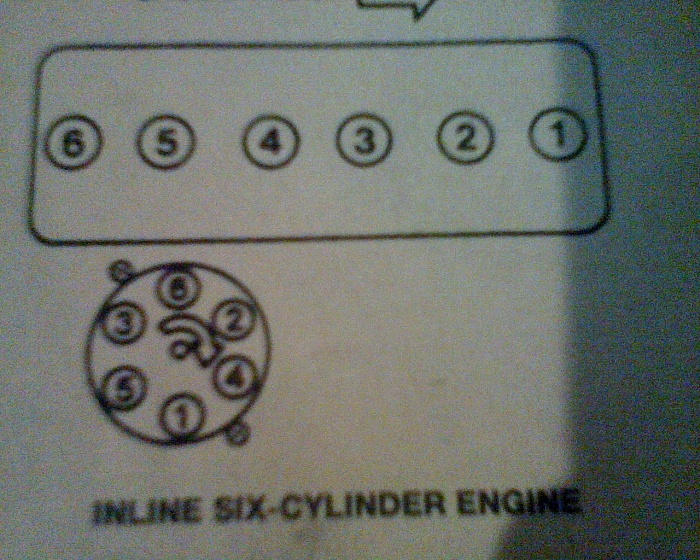

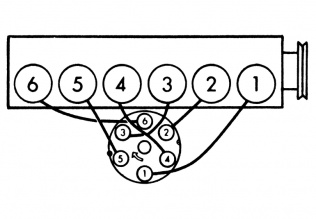

which firing order did you goy buy the screw on the dist cap are in the wrong spot in one pic if that is what you based the firing order starting point by
#4
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
i just rebuilt the motor to a 4.6 stroker renix but now it wont run right it backfires and stumbles and pops out the rear like the timing is off but it is not. with the timing marks lined up and the distributer at the 1st spark plug its 180 degrees off so i fliped it 180 degrees and it fires up but does all the backfiring nonsence so i have redone the timing 4 times just to make sure i also have done a compresion test all the valves are opening and closing correctly the cps has been changed new wires new plugs new cap new roter what confuses me most is the fact its 180 degrees off with the timing marks lined up...
so here are things ive done a buddy of mine has a renix xj as well so we decided to swap a few parts to see if we could fix mine computer and ditributor map sensor have also turned the distributor one tooth at a time to see if could find the right timing but same issue
what i have and have not done on this build
pistons h802pc
cam stock
new lifters
reconditioned crank from 89 4.2 light crank
352 conecting rods
new melling oil pump
24lb injectors
parts i reused all i did was clean them
head
intake manifold
exhaust manifold
throttle boddy
so here are things ive done a buddy of mine has a renix xj as well so we decided to swap a few parts to see if we could fix mine computer and ditributor map sensor have also turned the distributor one tooth at a time to see if could find the right timing but same issue
what i have and have not done on this build
pistons h802pc
cam stock
new lifters
reconditioned crank from 89 4.2 light crank
352 conecting rods
new melling oil pump
24lb injectors
parts i reused all i did was clean them
head
intake manifold
exhaust manifold
throttle boddy
#5
Junior Member
Thread Starter
Join Date: Aug 2009
Location: california
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.6 stroker
its right but its still off i know its something stupid though but ive tried everything it wont work i have the manual for the jeep too so ive tried reffering to that but no dice
Trending Topics
#11
Junior Member
Thread Starter
Join Date: Aug 2009
Location: california
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.6 stroker
#13
Junior Member
Thread Starter
Join Date: Aug 2009
Location: california
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.6 stroker
#14
Seasoned Member
Join Date: Jun 2009
Location: Lancaster PA
Posts: 298
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
ok I know you said your timing is right but timing is what will make it backfire at idle and not rev up. What you need to do is take the #1 spark plug out and rotate the engine untill you feel air coming out of the hole when there is no more air you should be at TDC then remove your cap and make sure the rotor is pointing at #1. Mine did the same thing when I pulled my dizzy out to reseal it from leaking and I thought I had it back in the right way but it wasnt and I checked it multiple times and it appeared right but as soon as I did it the way I just explained it ran fine, so its worth a try Cause it sounds like you might be off
Last edited by 1988cherokee; 02-06-2011 at 09:51 PM.
#15
Seasoned Member
Join Date: Jun 2009
Location: Lancaster PA
Posts: 298
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
The other thing that could make it do what its doing is the crank sensor it could be to close or to far away, what you can do there is slot the bolt holes and put a peice of thin paper or card board on the the end of the sensor to get the right "air" gap between the flywheel and sensor
Last edited by 1988cherokee; 02-07-2011 at 06:18 AM.
