Rear ends
#1
Newbie
Thread Starter
Join Date: Mar 2014
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Rear ends
I plan on doing a 4.5 lift to my xj country it is going to be a DD winter as well as a mud toy and was wondering about the rear axles. Are dana rear ends worth it and how bad will a buffer axle as well as lets say 4.10 gears effect mpg and driveablility?
#2
Senior Member
4.10's will help your drivability and mpg as you will be going with a larger diameter tire. Most XJ guys frown upon the dana 35, glorify the dana 44 and settle with a 8.25 29 spline Chrysler rear as they are cheap and available. I have a guy I wheel with that loves his old school jeeps and swears by the none c clip dana 35 if your running under 35'' rubber. I will be keeping my 8.25 for now as most XJ guys on here that wheel there rigs hard say they are good for 35'' and under rubber.
#3
Former Sponsor
Join Date: Mar 2012
Location: Yorba Linda
Posts: 864
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.8
My major advice. Dont look just at the cost of the junk yard axle people tell you to get (F8.8 typically). Look at the overall cost, compared to say a D44 from a Cherokee.
By the time you add up the complete housing, brackets if needed, cutting/welding as needed, locker as needed, gears as needed, wheel spacers or chromoly shafts as needed, flange adapter as needed, brake lines etc, as needed.... Alot of time you find a D44 (even if 500$ up front) is alot less for a comparable axle and there is no chance of booty fabed perches and shocks mounts etc.
By the time you add up the complete housing, brackets if needed, cutting/welding as needed, locker as needed, gears as needed, wheel spacers or chromoly shafts as needed, flange adapter as needed, brake lines etc, as needed.... Alot of time you find a D44 (even if 500$ up front) is alot less for a comparable axle and there is no chance of booty fabed perches and shocks mounts etc.
#6
CF Veteran
Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes
on
0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L
If you plan on running 35s or smaller the 8.25 is fine. Sure an 8.8 will hold 37s but what front axle in that width and bolt pattern can also handle 37s?
Trending Topics
#8
Newbie
Thread Starter
Join Date: Mar 2014
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
It looks like I have to do some more looking and figuring haha thanks for all the suggestions I'm new to the off road scene I drive a sports car so not sure on a lot of this stuff haha
#11
My major advice. Dont look just at the cost of the junk yard axle people tell you to get (F8.8 typically). Look at the overall cost, compared to say a D44 from a Cherokee.
By the time you add up the complete housing, brackets if needed, cutting/welding as needed, locker as needed, gears as needed, wheel spacers or chromoly shafts as needed, flange adapter as needed, brake lines etc, as needed.... Alot of time you find a D44 (even if 500$ up front) is alot less for a comparable axle and there is no chance of booty fabed perches and shocks mounts etc.
By the time you add up the complete housing, brackets if needed, cutting/welding as needed, locker as needed, gears as needed, wheel spacers or chromoly shafts as needed, flange adapter as needed, brake lines etc, as needed.... Alot of time you find a D44 (even if 500$ up front) is alot less for a comparable axle and there is no chance of booty fabed perches and shocks mounts etc.
It's only as expensive as you make it, you don't need a new Flange, a 1310 to 1330 u joint is half the price, spring perches are $5 each, I built my own shock mounts, brake line was another $10, I had just under $200 total, find an axle with the right gears in it.
Wheel spacers aren't needed, you won't notice the extra .750" on each side.
#12
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
A new flange is like $35. How much you spending on your conversion joints man?
Ah the D44 vs 8.8 debate. I will always say do whatever is cheaper and more readily available. Just grab an axle and go they're both great. I like the 8.8 for availability, discs, and the fact that it forces you to raise the shock mounts and use better perches. I like the D44 because its bolt in and doesn't have stupid C-clips
Seriously. Just go get an axle and go wheeling. Even a 29 spline 8.25. The D30 is the one you wanna worry about anyway
Ah the D44 vs 8.8 debate. I will always say do whatever is cheaper and more readily available. Just grab an axle and go they're both great. I like the 8.8 for availability, discs, and the fact that it forces you to raise the shock mounts and use better perches. I like the D44 because its bolt in and doesn't have stupid C-clips
Seriously. Just go get an axle and go wheeling. Even a 29 spline 8.25. The D30 is the one you wanna worry about anyway
#13
A new flange is like $35. How much you spending on your conversion joints man?
Ah the D44 vs 8.8 debate. I will always say do whatever is cheaper and more readily available. Just grab an axle and go they're both great. I like the 8.8 for availability, discs, and the fact that it forces you to raise the shock mounts and use better perches. I like the D44 because its bolt in and doesn't have stupid C-clips
Seriously. Just go get an axle and go wheeling. Even a 29 spline 8.25. The D30 is the one you wanna worry about anyway
Ah the D44 vs 8.8 debate. I will always say do whatever is cheaper and more readily available. Just grab an axle and go they're both great. I like the 8.8 for availability, discs, and the fact that it forces you to raise the shock mounts and use better perches. I like the D44 because its bolt in and doesn't have stupid C-clips
Seriously. Just go get an axle and go wheeling. Even a 29 spline 8.25. The D30 is the one you wanna worry about anyway
i think i spent like $13 on one at AAP
#14
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
Yikes. Don't know how much I trust that
On second thought I'd go 8.8. Some come factory with 4.10's and a posi. There. Just saved you a whole bunch of money on regearing and a whole bunch of time searching for a 4.10 D44
On second thought I'd go 8.8. Some come factory with 4.10's and a posi. There. Just saved you a whole bunch of money on regearing and a whole bunch of time searching for a 4.10 D44
#15
THE Admin
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,036
Received 231 Likes
on
187 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow

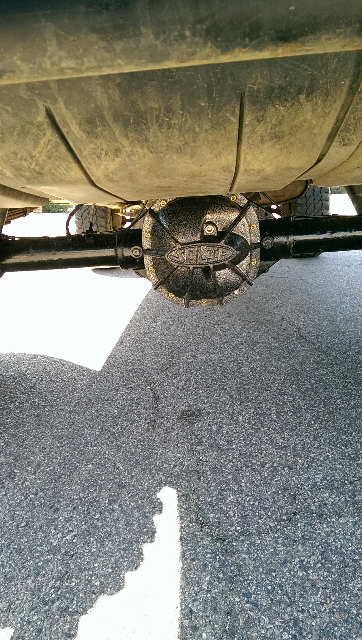

For those wanting to do the Explorer 8.8 swap, the only advice I can give is get a good aftermarket diff cover with carrier adjustment bolts. These help address the weakest point of the 8.8 in high Tq applications. The diff carrier has a tendency to twist under high stress and tweak the carrier bearing caps. Those adjustment covers allow you to keep tension on the caps.
Last edited by Outlaw Star; 03-26-2014 at 05:33 AM.
