Quick question on transfer case drops

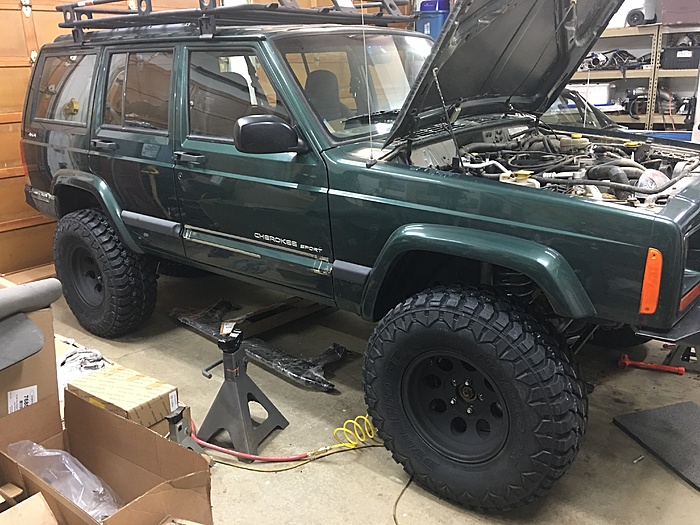

99 XJ 4door 4.0 110,000 miles
Rubicon Express 3.5" super flex
Rusty's 1" drop cross member
I've seen this done, should not be as big of an issue as I see it, but I want to make sure.
I supported the trans/T-case with a floor jack. I removed the factory cross member.
I bolted in the Rusty's new 1" drop cross member (looks like a factory piece, only thicker material and 1" lower drop)
As I let the floor jack down to mate up the trans mount to the new member, the trans/T-case did not drop. I can't see anything binding, or any contact that would prevent it from just dropping down into place.
Have any of you seen this? Do I need to pull down on it to get it to mate up? (I can pull down on the trans/T-case, but it feels like its binding on something.
Nate
Rubicon Express 3.5" super flex
Rusty's 1" drop cross member
I've seen this done, should not be as big of an issue as I see it, but I want to make sure.
I supported the trans/T-case with a floor jack. I removed the factory cross member.
I bolted in the Rusty's new 1" drop cross member (looks like a factory piece, only thicker material and 1" lower drop)
As I let the floor jack down to mate up the trans mount to the new member, the trans/T-case did not drop. I can't see anything binding, or any contact that would prevent it from just dropping down into place.
Have any of you seen this? Do I need to pull down on it to get it to mate up? (I can pull down on the trans/T-case, but it feels like its binding on something.
Nate
#2
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
You got upgraded motor mounts maybe ? Front drive shaft binding ? Gotta look around see what stuck should drop down some easily.
Last edited by freegdr; 05-16-2017 at 03:43 PM.
#4
Junior Member
Thread Starter
Join Date: Feb 2016
Location: PAC NW (Oregon)
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
It moves side to side, no issues.
I can pull down on it and it moves, but springs back up.
I called Rusty's and they said to look at the motor mounts, maybe loosen them with the trans/T-case supported, then try dropping it down again.
I'll let you guys know what I find. I just hope it's not the driveshaft or shift linkage causing this these issues.
Nate
I can pull down on it and it moves, but springs back up.
I called Rusty's and they said to look at the motor mounts, maybe loosen them with the trans/T-case supported, then try dropping it down again.
I'll let you guys know what I find. I just hope it's not the driveshaft or shift linkage causing this these issues.
Nate
#5
Senior Member
Join Date: Jan 2017
Location: usa
Posts: 799
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2000
Model: Cherokee
Engine: 6 cylinder
I've got the Rusty's 1" cross member drop and their skid plate installed with no serious install problems. But my motor mounts are still OEM originals.
Only minor issue i had was their cross member needed an offset tranny mount for my 242 TC which Rusty's promptly sent 2 day delivery.
As freegdr mentioned, the motor mounts could be some upgraded type or even a motor lift mount like Brown Dog Offroad's 1" motor lift.
Does your engine/ bell housing seem to ride higher than normal?
Only minor issue i had was their cross member needed an offset tranny mount for my 242 TC which Rusty's promptly sent 2 day delivery.
As freegdr mentioned, the motor mounts could be some upgraded type or even a motor lift mount like Brown Dog Offroad's 1" motor lift.
Does your engine/ bell housing seem to ride higher than normal?
#7
Junior Member
Thread Starter
Join Date: Feb 2016
Location: PAC NW (Oregon)
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
It ended up being caused by the front end at full sag when I tried to drop the T-case/trans. I had the wheels off and the front at full sag so I could bleed the brakes and do a couple other items. Once I jacked the front end up about 8", the trans/T-case dropped right in.
Nate
