NP207 front driveline ??
Ok guys, have a doozy for ya.
I have an 84 Waggy (XJ)
2.5L
NP207 d30/d35
My front output on the 207 blew up,
Need to replace it. Got a front Double cardan ( I think ...) driveshaft that a
SHOULD be the right length...
part number 53005541, which a few later catalogs say fit a 4cyl 5speed.
But I have no idea what kind of TC output yoke to get to match.
I know it needs to be 26 spline that much is sure,
But I am unsure as to whether or not I need a flanged yoke or whatever.
So I need to get this
To fit to this..... Somehow...
Any ideas? ive been searching for days and cant get a definitive answer on what exactly I need.
I have an 84 Waggy (XJ)
2.5L
NP207 d30/d35
My front output on the 207 blew up,
Need to replace it. Got a front Double cardan ( I think ...) driveshaft that a
SHOULD be the right length...
part number 53005541, which a few later catalogs say fit a 4cyl 5speed.
But I have no idea what kind of TC output yoke to get to match.
I know it needs to be 26 spline that much is sure,
But I am unsure as to whether or not I need a flanged yoke or whatever.
So I need to get this
To fit to this..... Somehow...
Any ideas? ive been searching for days and cant get a definitive answer on what exactly I need.
#2
Senior Member
Join Date: Jul 2011
Location: Mt. Vernon Washington
Posts: 798
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0L Renix and tube header
I had this problem. My solution ended up being me replacing the np207 with a np231. Best decision ever !
I'm pretty sure you'll need a 21 spline transfer case. I just found one by chance while scrolling through CL. Maybe he can ship it to you. Link below:
http://seattle.craigslist.org/oly/pts/4257969936.html
I'm pretty sure you'll need a 21 spline transfer case. I just found one by chance while scrolling through CL. Maybe he can ship it to you. Link below:
http://seattle.craigslist.org/oly/pts/4257969936.html
Last edited by gilbertxj466; 01-18-2014 at 11:59 PM.
#3
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Heard that front yoke off 231 or 242 not sure which one swaps right in place of flange yoke on there now...
Last edited by freegdr; 01-19-2014 at 03:49 AM.
Trending Topics
#8
::Regional Moderator::
Join Date: Jul 2011
Location: Over here...
Posts: 2,912
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1986
Model: Cherokee
Engine: 2.8
I believe the 242 output shaft is a larger, so the yoke won't work on a 231/207 output.
--------------

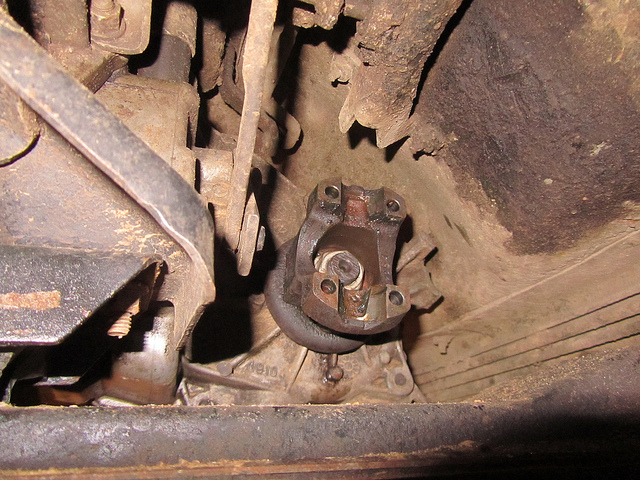

Edit: OP, this pic is from my build thread. This is the 231 cv yoke on a 207.
Last edited by emptypockets; 01-20-2014 at 01:56 AM.
#10
Newbie
Thread Starter
Join Date: Mar 2013
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Awesome. I just ordered a cv yoke for a 87-95 wrangler, hoping they're the same, and the nut as well.
It looks like you didnt have to bolt that flange to the transfercase, and the output splines were already threaded to accept the nut. That picture is worth a million words I've been looking for that for days, thank you
It looks like you didnt have to bolt that flange to the transfercase, and the output splines were already threaded to accept the nut. That picture is worth a million words I've been looking for that for days, thank you
#11
Newbie
Thread Starter
Join Date: Mar 2013
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Update. Got the new yoke, it doesn't match up with the hole on the shaft, far too wide.
The holes on the driveshaft measure 1.5" x ~2 3/8" center to center, the yoke measures 1 5/8"x 2 7/8" center to center. Grrrrrr it's sooooo freaking bad not having a goddam pick and pull around here. Guess I gotta return the yoke now.
The holes on the driveshaft measure 1.5" x ~2 3/8" center to center, the yoke measures 1 5/8"x 2 7/8" center to center. Grrrrrr it's sooooo freaking bad not having a goddam pick and pull around here. Guess I gotta return the yoke now.
#14
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
18676.38
.................
http://www.ebay.com/sch/6000/i.html?_nkw=18676.38+Rugge
18676.38
d+Ridge+Yoke+Front+Output+NP231+Jeep&_dmpt=Motors_ Car_Truck_Parts_Accessories&_rdc=2
http://www.ebay.com/sch/6000/i.html?_nkw=18676.38+Rugge
18676.38
d+Ridge+Yoke+Front+Output+NP231+Jeep&_dmpt=Motors_ Car_Truck_Parts_Accessories&_rdc=2
Last edited by freegdr; 01-31-2014 at 04:06 AM.
#15
Newbie
Thread Starter
Join Date: Mar 2013
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Thanks a million freegdr
I am truly envious of those with decent junkyards nearby
It sucks having to get every part I need for a mod new
I am truly envious of those with decent junkyards nearby
It sucks having to get every part I need for a mod new
