new wheels, back spacing question
#1
Seasoned Member
Thread Starter
Join Date: Oct 2011
Location: spokane valley, wa
Posts: 433
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
new wheels, back spacing question
I'll be buying new jegs steel wheels with some of my tax return. I want the tires sticking out of the wheel wells more than they currently do, but for some reason I'm having an issue wiping my head around the back spacing. I'm running 35x12.5R15s. I am aware of the negative effects of too much and too little backspacing.
So, would the 15x8 with 3.75 inches of backspacing or the 15x10 with 4 inches of backspacing be preffered?
I know 8 inches is a bit thin for the 12.5 inch wide tires but they are currently on 7 inch wide aluminum wheels and I haven't had any issues (other than rubbing, which is why I want the new wheels and wider stance).
Thanks in advance for all the opinions and help!
So, would the 15x8 with 3.75 inches of backspacing or the 15x10 with 4 inches of backspacing be preffered?
I know 8 inches is a bit thin for the 12.5 inch wide tires but they are currently on 7 inch wide aluminum wheels and I haven't had any issues (other than rubbing, which is why I want the new wheels and wider stance).
Thanks in advance for all the opinions and help!
#2
Senior Member
Join Date: Mar 2011
Location: VA
Posts: 770
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee (XJ)
Engine: 4L, 6 cylinder, 190 hp, 225 ft lp torque
I'm also switching to that size tire and will go with the 15 x 8 steel wheels with 3.75 back spacing. Post up after you get them on and tell us how they fit.
#3
CF Veteran
Join Date: Sep 2013
Location: Eaton Co
Posts: 1,922
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
I'll be buying new jegs steel wheels with some of my tax return. I want the tires sticking out of the wheel wells more than they currently do, but for some reason I'm having an issue wiping my head around the back spacing. I'm running 35x12.5R15s. I am aware of the negative effects of too much and too little backspacing.
So, would the 15x8 with 3.75 inches of backspacing or the 15x10 with 4 inches of backspacing be preffered?
I know 8 inches is a bit thin for the 12.5 inch wide tires but they are currently on 7 inch wide aluminum wheels and I haven't had any issues (other than rubbing, which is why I want the new wheels and wider stance).
Thanks in advance for all the opinions and help!
So, would the 15x8 with 3.75 inches of backspacing or the 15x10 with 4 inches of backspacing be preffered?
I know 8 inches is a bit thin for the 12.5 inch wide tires but they are currently on 7 inch wide aluminum wheels and I haven't had any issues (other than rubbing, which is why I want the new wheels and wider stance).
Thanks in advance for all the opinions and help!
Last edited by XJmike0122; 01-09-2015 at 06:34 PM.
#5
Seasoned Member
Thread Starter
Join Date: Oct 2011
Location: spokane valley, wa
Posts: 433
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Thank you mike.

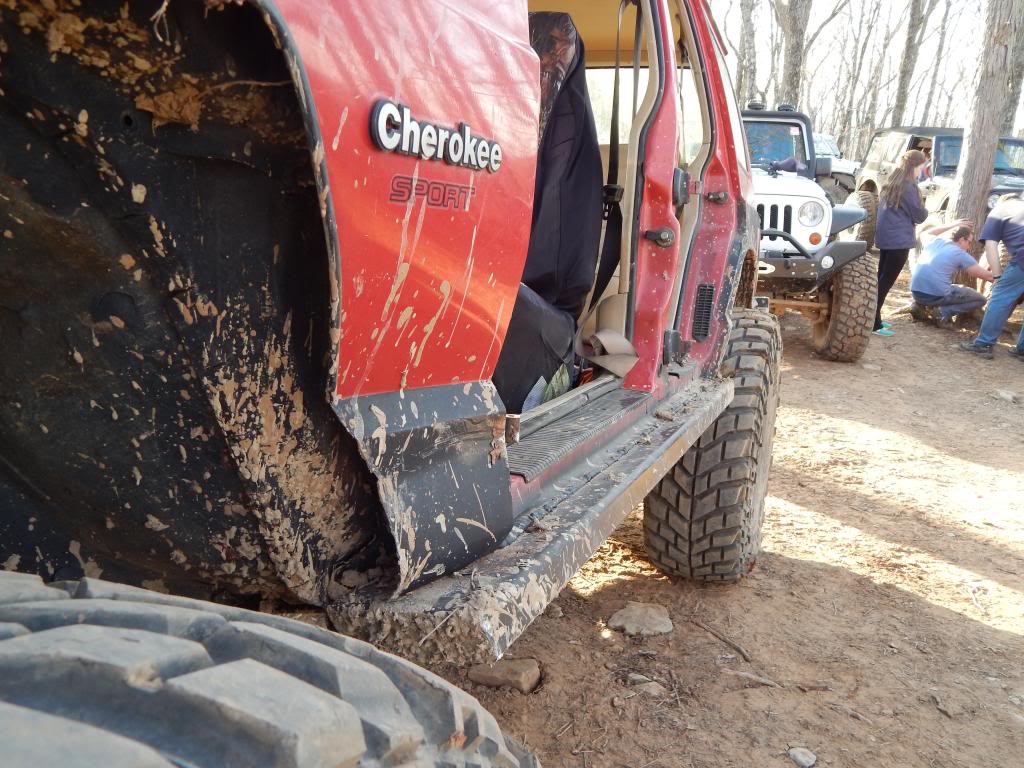

94xj, our jeeps have the exact same coloring! Thanks for the pictures, that looks right bout where I want my wheels to be. Do you have any rubbing issues on the shock towers or control arms?
94xj, our jeeps have the exact same coloring! Thanks for the pictures, that looks right bout where I want my wheels to be. Do you have any rubbing issues on the shock towers or control arms?
#6
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
I adjusted the steering stops by adding 1 washer to prevent them from rubbing the paint off my long arms. They didn't rub the lugs of the tires, just enough to take the paint off.
My axle wasn't centered perfectly so every now and then when it got really stuffed on the passenger side the tire would take some paint off the shock tower on the front. Again, didn't rub, but it was just enough to clean the paint off.
You need a cage in that thing.
My axle wasn't centered perfectly so every now and then when it got really stuffed on the passenger side the tire would take some paint off the shock tower on the front. Again, didn't rub, but it was just enough to clean the paint off.
You need a cage in that thing.
#7
Seasoned Member
Thread Starter
Join Date: Oct 2011
Location: spokane valley, wa
Posts: 433
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
It's on the to do list lol. I'm probably gonna be buying a new rolling chassis, mines falling apart. It was already pretty hammered up when I bought it. Im gonna start fresh and do a lowcog build. Also considering cutting the uniframe out and building a tube chassis.
Trending Topics
#8
Senior Member
Join Date: Mar 2011
Location: VA
Posts: 770
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee (XJ)
Engine: 4L, 6 cylinder, 190 hp, 225 ft lp torque
Hey 94XJSport94, are your front quarters cut back to the pinch seam or past the seam? I'm running a 5.5 inch lift, 33s with 3.75 back spacing right now but am moving up to 35s in the near future. Like you said I know I'll get some spring tower and control arm rub but am wondering how far back (behind the front tire) the body work needs to get cut or moved to achieve turning block to block clearance.
#11
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Hey 94XJSport94, are your front quarters cut back to the pinch seam or past the seam? I'm running a 5.5 inch lift, 33s with 3.75 back spacing right now but am moving up to 35s in the near future. Like you said I know I'll get some spring tower and control arm rub but am wondering how far back (behind the front tire) the body work needs to get cut or moved to achieve turning block to block clearance.
#12
Banned
Join Date: Feb 2014
Location: Florida
Posts: 2,379
Likes: 0
Received 13 Likes
on
12 Posts
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
At equal backspacing, I would expect the 10" rim to stick out two inches more than the 8". With .25" difference in backspacing, I would expect that to only be reduced by .25" to 1.75". What am I missing?
#13
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Maybe I'm confused, which wouldn't be the first time. He said his choice was an 8" rim with 3.75" of backspacing or a 10" rim with 4" of backspacing. Wouldn't the 10" rim stick out stick out 1.75" more than the 8" rim due to its greater width?
At equal backspacing, I would expect the 10" rim to stick out two inches more than the 8". With .25" difference in backspacing, I would expect that to only be reduced by .25" to 1.75". What am I missing?
At equal backspacing, I would expect the 10" rim to stick out two inches more than the 8". With .25" difference in backspacing, I would expect that to only be reduced by .25" to 1.75". What am I missing?
A 10" wide wheel with 4" of BS will stick out 1.25" farther than a 8" wide wheel with 3.75" backspacing. A difference of .25" backspacing then divide the difference in wheel width.
#14
Banned
Join Date: Feb 2014
Location: Florida
Posts: 2,379
Likes: 0
Received 13 Likes
on
12 Posts
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
Unless I'm confused, I think all you need here is simple subtraction.
If the 8" rim has 3.75" backspacing, the outer edge would be 4.25" from the mounting surface.
If the 10" rim has 4" backspacing, the outer edge would be 6" from the mounting surface.
6" - 4.25" = 1.75"
Therefore the 10" rim would stick out 1.75" more than the 8" rim.
Am I wrong?
