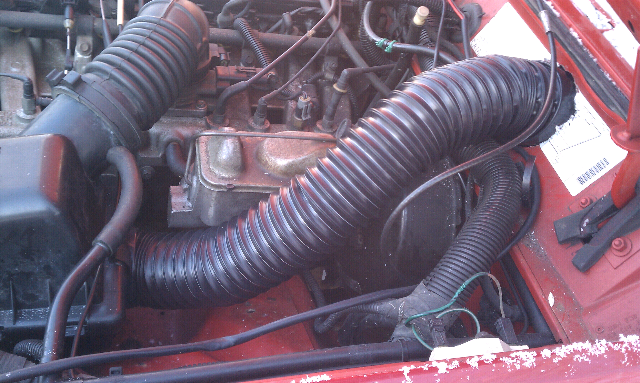

My version of a cowl snorkle
Thread Starter
☠ CF Sheriff ☠
Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
it usually rains a lot up here in humboldt, although it's been really nice lately.....i was thinking about doing this as well, just wondering about the whole rain drainage issue. i've already had to "modify" my hood vents to not leak over my distrib. (fixing the po's attempt). would the water just go right down the pipes & out the bottom of the air box? or are there other drain holes somewhere else? maybe u can cut an angle on the modded intake tubing to act as a splash guard? any thoughts?
https://www.cherokeeforum.com/f67/my...x2/#post817291
Member
Joined: Sep 2010
Posts: 142
Likes: 0
From: arcata, ca
Year: 1988
Model: Cherokee
Engine: 4.0L I-6
Senior Member
Joined: May 2010
Posts: 530
Likes: 0
From: Nevada City, California
Year: 2K
Model: Cherokee
Engine: I6 with Mustang fuel injectors; 60mm Throttle Body;

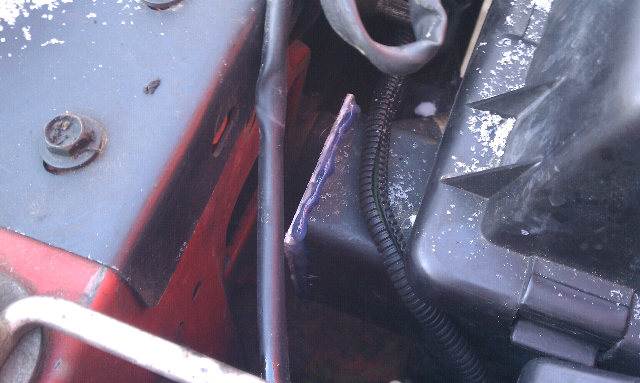

Dukie, with drain holes at the bottom of the air box left open wouldn't this allow water from a high river crossing to come up through the drain holes and get water in the air box?
If this is true any thoughts on a flapper valve to let water out but not in?
Thread Starter
☠ CF Sheriff ☠
Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
good god i hope you're not in the water that deep for long enough for that to happen. The holes aren't very big. It's a good suggestion though (although i don't think there would be enough pressure to open the valve to get water out, especially with the engine running).
I've considered just sealing the drain holes up completely. From what i've seen water never makes it into the airbox from the cowl anyways, to the holes may be hurting more than they are helping.
I'm open to alternative suggestions to test out
I've considered just sealing the drain holes up completely. From what i've seen water never makes it into the airbox from the cowl anyways, to the holes may be hurting more than they are helping.
I'm open to alternative suggestions to test out
CF Veteran
Joined: May 2010
Posts: 1,680
Likes: 5
From: Western Michigan
Year: 1993
Model: Grand Cherokee
Engine: 4.0l inline 6
Plug them with something (rubber plug, chunk of pencil) and run it for a month then see if you develope any issues. I dont think it would be a problem not haveing holes. The little bit of water that does get in would just evoporate.
Thread Starter
☠ CF Sheriff ☠
Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
i haven't really put much thought into the needing to plug the holes since i don't intend on ever doing any extended river crossings with my rig like....ever....but it's a good point for someone who may
CF Veteran
Joined: Mar 2009
Posts: 1,988
Likes: 3
From: USA
Year: 1999
Engine: l6 4.0, K&N FIPK & 62mm bored TB
Have fun out there ...
Senior Member
Joined: May 2010
Posts: 530
Likes: 0
From: Nevada City, California
Year: 2K
Model: Cherokee
Engine: I6 with Mustang fuel injectors; 60mm Throttle Body;
