Default Lunchbox locker users with manual trans, please step in

Alright, so I recently installed a Spartan locker in my 8.25 rear end. Just some questions for those of you with manual trans. I have driven an auto with the same locker and it was a lot different then driving mine. So I want to see if what I am going through is normal, or I put it in wrong.

- After install, did your xj seem to clunk more when shifting? Mostly through the driveshaft.
- Clunk when sitting still and putting it in gear?
- Was it harder to shift?
- When you are making a slow turn (like in to a parking spot) and in gear, slowing down, with the clutch in, does it clunk or click like normal?
- When on the gas, do these things ever unlock? Feels like if I am on the gas at all, I got a spool back there. Guessing thats how it should work.
5-Speed is offline
Old 03-16-2017, 09:56 PM
  #2
Senior Member

shooptube's Avatar

Join Date: Feb 2014
Location: Southgate, Michigan
Posts: 791
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.6 I6
Default

Originally Posted by 5-Speed View Post
Alright, so I recently installed a Spartan locker in my 8.25 rear end. Just some questions for those of you with manual trans. I have driven an auto with the same locker and it was a lot different then driving mine. So I want to see if what I am going through is normal, or I put it in wrong.

- After install, did your xj seem to clunk more when shifting? Mostly through the driveshaft.
- Clunk when sitting still and putting it in gear?
- Was it harder to shift?
- When you are making a slow turn (like in to a parking spot) and in gear, slowing down, with the clutch in, does it clunk or click like normal?
- When on the gas, do these things ever unlock? Feels like if I am on the gas at all, I got a spool back there. Guessing thats how it should work.
Yes there will be lots of clunking. As for turning corners, I usually coast as much as I can. If you give steady throttle, mine will unlock and ratchet as it should but will act like a spool if you mash it.
shooptube is offline
Old 03-16-2017, 10:00 PM
  #3
Great White Jeep
Thread Starter

5-Speed's Avatar

Join Date: Dec 2016
Location: SoCal
Posts: 2,792
Likes: 0
Received 0 Likes on 0 Posts
Year: Jeepless
Model: Cherokee (XJ)
Default

If I make a turn in neutral with the clutch out, it ratchets like normal. If I have it in gear with the clutch in, it clunks. Is that normal?
5-Speed is offline
Old 03-17-2017, 06:48 PM
  #4
Senior Member

shooptube's Avatar

Join Date: Feb 2014
Location: Southgate, Michigan
Posts: 791
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.6 I6
Default

Originally Posted by 5-Speed View Post
If I make a turn in neutral with the clutch out, it ratchets like normal. If I have it in gear with the clutch in, it clunks. Is that normal?
The clunk you are hearing is probably the backlash in the pinion. With the jeep in neutral parked on level ground, crawl underneath and try to spin the rear driveshaft. I bet that you will be able to rotate it a 1/4 to a 1/2 of a full rotation. That play is not noticeable when you have a torque converter always keeping the driveshaft up under power. Also, that is why taking off from a stop, there is a clunk if you do not feather the clutch early on.
shooptube is offline
Old 03-17-2017, 10:58 PM
  #5
Great White Jeep
Thread Starter

5-Speed's Avatar

Join Date: Dec 2016
Location: SoCal
Posts: 2,792
Likes: 0
Received 0 Likes on 0 Posts
Year: Jeepless
Model: Cherokee (XJ)
Default

Originally Posted by shooptube View Post
The clunk you are hearing is probably the backlash in the pinion. With the jeep in neutral parked on level ground, crawl underneath and try to spin the rear driveshaft. I bet that you will be able to rotate it a 1/4 to a 1/2 of a full rotation. That play is not noticeable when you have a torque converter always keeping the driveshaft up under power. Also, that is why taking off from a stop, there is a clunk if you do not feather the clutch early on.
Thanks man. You make me feel better. I figured it had something to do with manual vs. auto but would rather be safe then sorry. If anyone else wants to chime in to verify the same thing, I would appreciate it
5-Speed is offline
Old 03-18-2017, 12:55 AM
  #6
Senior Member

shooptube's Avatar

Join Date: Feb 2014
Location: Southgate, Michigan
Posts: 791
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.6 I6
Default

Originally Posted by 5-Speed View Post

Thanks man. You make me feel better. I figured it had something to do with manual vs. auto but would rather be safe then sorry. If anyone else wants to chime in to verify the same thing, I would appreciate it
Yeah no problem man. I could see how just swapping to a manual and suddenly having clunking be rather concerning. Eventually I would like to have a selectable in the rear just so it's nicer to daily but it's fine for now. Especially with a full case Detroit taking the abuse.
shooptube is offline
Old 03-18-2017, 08:10 AM
  #7
Senior Member

Rockhead's Avatar

Join Date: Mar 2011
Location: VA
Posts: 769
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4L, 6 cylinder, 190 hp, 225 ft lp torque
Default

Hey, good morning. Yes to all of your Cherokee's symptoms. When shifting I take my time, shift slowly and let it slip into gear. Also like Shooptube I will coast around corners when I can, a lot of traction back there. I try to take it easy on the whole drive train, want it to last as long as possible. For example, when shifting from first to second I'll carry a little speed, coast and ease the trans into second and so on. I like all of the mannerisms of my Cherokee, it's a piece of machinery being driven. (:


Rockhead is offline
Old 03-19-2017, 09:00 AM
  #8
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 13,111
Likes: 0
Received 0 Likes on 0 Posts
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

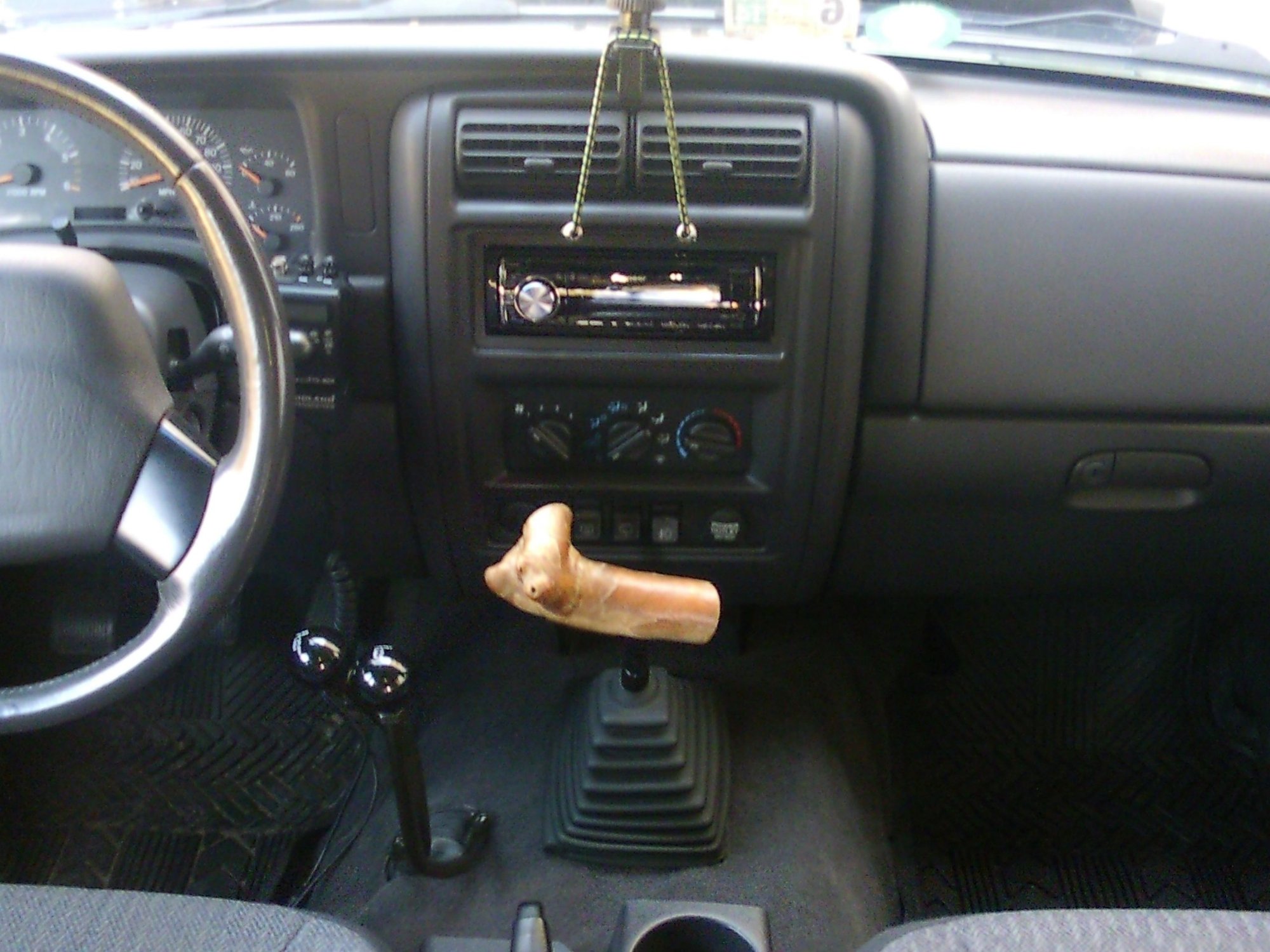

That trans tunnel is very phallic...LOL
roninofako is offline
Old 03-19-2017, 01:19 PM
  #9
Senior Member

Join Date: Apr 2013
Location: Dawson Springs, KY
Posts: 766
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5L
Default

Originally Posted by 5-Speed View Post

- Clunk when sitting still and putting it in gear?

-
If it does this when the engine is running but sitting still it sounds like the clutch isn't completely disengaging, but is slightly dragging. My F150 did that when the slave cylinder was going bad, it was allowing the clutch disks to rub on the flywheel even with the pedal to the floor. It will also cause difficulty when shifting while moving, especially in city traffic.
jedijeb is offline
Old 03-19-2017, 03:21 PM
  #10
Great White Jeep
Thread Starter

5-Speed's Avatar

Join Date: Dec 2016
Location: SoCal
Posts: 2,792
Likes: 0
Received 0 Likes on 0 Posts
Year: Jeepless
Model: Cherokee (XJ)
Default

Originally Posted by jedijeb View Post
If it does this when the engine is running but sitting still it sounds like the clutch isn't completely disengaging, but is slightly dragging. My F150 did that when the slave cylinder was going bad, it was allowing the clutch disks to rub on the flywheel even with the pedal to the floor. It will also cause difficulty when shifting while moving, especially in city traffic.
It did not make the clunk before the locker so I really dont think its the clutch dragging. Its a brand new clutch setup as well. I have not replaced the master or slave on it yet. The clunk does not happen everytime I put it in gear. Just every now and then. Mostly when it seems the locker has a load on it.

Thanks to everyone elses input as well. You guys are making me feel like this is all normal and I just need to start driving a little bit different. Coasting through turns makes it a lot quieter.
5-Speed is offline
Old 03-19-2017, 07:46 PM
  #11
Senior Member

shooptube's Avatar

Join Date: Feb 2014
Location: Southgate, Michigan
Posts: 791
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.6 I6
Default

Originally Posted by 5-Speed View Post
Thanks to everyone elses input as well. You guys are making me feel like this is all normal and I just need to start driving a little bit different. Coasting through turns makes it a lot quieter.
No problem man. If you have any more questions about manual transmission questions, let me know.
shooptube is offline
Old 03-26-2017, 04:21 AM
  #12
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,925
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Fast starts in wet weather are also fun.
freegdr is offline
Old 01-13-2018, 11:08 AM
  #13
CF Veteran

Battle's Avatar

Join Date: May 2013
Location: Rochester, NY
Posts: 2,056
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

I hate to bump this but yes to all these symptoms. I'm so glad it wasn't just me!

I felt it with an Aussie and a Spartan - AND with a Hurst Short Shifter. I was hoping a Truetrac would help but I sold the rig before I could try. The current owner is running an open diff now.

My current rig is stock and has none of those characteristics. I also think its AX15 is in better shape than my old one.
Battle is offline
Old 01-13-2018, 03:10 PM
  #14
Great White Jeep
Thread Starter

5-Speed's Avatar

Join Date: Dec 2016
Location: SoCal
Posts: 2,792
Likes: 0
Received 0 Likes on 0 Posts
Year: Jeepless
Model: Cherokee (XJ)
Default

No worries on the bump. You had good info to add. I am now up to 8000 miles on mine and have learned how to drive it. I still get the pogo stick effect every now and then but its not that bad. The pros of the locker out weigh the cons.
