Led bulb conversion problems
#1
Newbie
Thread Starter
Join Date: May 2012
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Led bulb conversion problems
Hi everyone, I'm new to this thread and this is my first post. I've got a technical problem that has had me stumped all day.
I just recently swapped all of the exterior bulbs on my 2001 cherokee with led replacements. I also replaced the flasher unit with an electronic one. Shortly after doing this the left front side marker stopped working, I'm positive it isn't the bulb or the socket.
When I turn on the hazards the rear brake lights and license plate light also flash at the same rate. When I use the left turn signal the gauges and brake lights also flash and the right front turn signal dimly flashes. Using the left turn signal with the headlights on causes the turn signal to stay lit.
I've gone through almost all of the wiring for the lights on the front and have yet to find a bad ground. All of the wiring seems to be correct, I'm confused as to why I've got this problem after switching to leds.
Any help would be greatly appreciated!
I just recently swapped all of the exterior bulbs on my 2001 cherokee with led replacements. I also replaced the flasher unit with an electronic one. Shortly after doing this the left front side marker stopped working, I'm positive it isn't the bulb or the socket.
When I turn on the hazards the rear brake lights and license plate light also flash at the same rate. When I use the left turn signal the gauges and brake lights also flash and the right front turn signal dimly flashes. Using the left turn signal with the headlights on causes the turn signal to stay lit.
I've gone through almost all of the wiring for the lights on the front and have yet to find a bad ground. All of the wiring seems to be correct, I'm confused as to why I've got this problem after switching to leds.
Any help would be greatly appreciated!
#2
Im having a similar problem. Went with the exterior LED conversion and my lights are all haywire. I went with rear trailer style LED lights for the JCR Tail Light Boxes and regular LED bulbs up front. I changed my relay to an electronic one. Have you figured this out yet?
#4
Theres gotta be a way to do this project with out load resistors. I did install the LED (electronic) flasher.
#5
CF Veteran
Join Date: Apr 2011
Location: Indianapolis
Posts: 4,825
Likes: 0
Received 2 Likes
on
2 Posts
Year: '99 and '91
Model: Cherokee
Sounds like either that flasher you put in is bad, or you might have a short/bad wire in the turn signal switch or elsewhere in the column. Just don't see how LEDs would cause all those oddities.
#6
The strange thing is, everything worked normal when I had my stock bulbs in....
#7
Senior Member
Join Date: Jul 2012
Location: middleburg fl
Posts: 860
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
you shouldnt need resistors i didnt all i could suggest is try putting the stock bulbs in one by one and checking operation between installs, like, left rear check op than right rear, check op when it gets to the point where they work leave that stock bulb in and throw the leds back in and see if they work(or any combo of the above) that way maybe you can at least narrow it down to what side or front /rear the prob is
just realised the post is old so ice man i dont know if this will work for you since you changed entire assemblys
just realised the post is old so ice man i dont know if this will work for you since you changed entire assemblys
Trending Topics
#8
you shouldnt need resistors i didnt all i could suggest is try putting the stock bulbs in one by one and checking operation between installs, like, left rear check op than right rear, check op when it gets to the point where they work leave that stock bulb in and throw the leds back in and see if they work(or any combo of the above) that way maybe you can at least narrow it down to what side or front /rear the prob is
just realised the post is old so ice man i dont know if this will work for you since you changed entire assemblys
just realised the post is old so ice man i dont know if this will work for you since you changed entire assemblys
Thats what I figured also. I just assume not use resistors because it sort of defeats the purpose of running low amperage (energy consumption) LEDs. I guess youre right, my only option is to start over and do one at a time until I get a problem. The issue is, then what? If I start having issues, I dont think I would know what to do from there. I know fast flash means low amperage (however that should have been solved by the electronic relay), steady on means too much draw (again, new electronic relay), but stuff like the brake lights not working, the fog and third brake light flashing with the hazard switch on, etc. I am just not the best with electrical.
#10
Newbie
Thread Starter
Join Date: May 2012
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I've got a new no load flasher and I'm fairly certain it works. I ended up cutting the green wires to the front drivers side turn signal and everything almost works normally now. Still doesn't work perfectly.
I think it might have something to do with the way in which xjs are wired. Where I was having a problem was the side marker, which is wired in series with one of the bulbs in the front turn signal. LED bulbs are polarity sensitive, might explain why I was getting a double negative the first time. This website explains it pretty well and also mentions some jeep vehicles.
http://v-ledsblog.com/2010/11/11/polarity-and-v-leds/

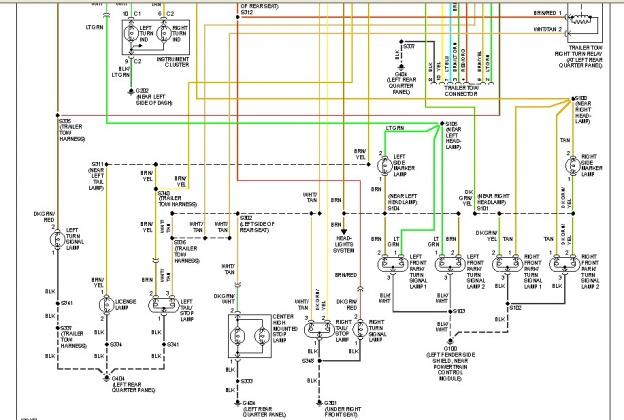

Also I attached a wiring diagram for xjs. I'm thinking of rewiring mine so all the bulbs are connected to ground.
I think it might have something to do with the way in which xjs are wired. Where I was having a problem was the side marker, which is wired in series with one of the bulbs in the front turn signal. LED bulbs are polarity sensitive, might explain why I was getting a double negative the first time. This website explains it pretty well and also mentions some jeep vehicles.
http://v-ledsblog.com/2010/11/11/polarity-and-v-leds/
Also I attached a wiring diagram for xjs. I'm thinking of rewiring mine so all the bulbs are connected to ground.
#11
Newbie
Join Date: Dec 2012
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0l
I'm struggling with sorta similar gremlins. I did LED instruments and Exterior bulbs, new LED signal relay. My issues are...Headlights off, hit brake pedal, instruments light up. Headlights on, my turn signals on the dash are on. I pulled the trailer harness adapter already. I bought a new headlight switch, haven't done it yet, cant dim, but understand dim and LED's dont always mix. Thoughts?
#12
Newbie
Join Date: Aug 2017
Location: NYC
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
Hi, I did the same mod to my XJ and having the same issue. Did you ever find a fix for it? thanks
Last edited by lightmodxj; 08-22-2017 at 02:28 PM.
#13
Newbie
Join Date: Sep 2017
Location: Riverside,Ca.
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 6 cyl 4.0 HO
Sorry, I guess I need this dumbed down for me...
just bought 1st xj - 95 w/ Country package (LOVE IT!!!)
i had a burnt out brake light, saw the LED bulbs in parts store, matched the part numbers and got the LED bulbs plug & play no problem.
I thought "cool, I'll just replace them all with the LED". When I get a new toy, for some reason my pockets get very heavy...
Replaced reverse and stop are fine but the turn signal ones make them flash very fast... (OEM bulbs worked fine)
Are the turn signals just not "plug & play"? Do I need and additional part or different flasher relay???
I'm OK with mech stuff but zero knowledge with auto electric.
Thanks in advance for the education!
tr
just bought 1st xj - 95 w/ Country package (LOVE IT!!!)
i had a burnt out brake light, saw the LED bulbs in parts store, matched the part numbers and got the LED bulbs plug & play no problem.
I thought "cool, I'll just replace them all with the LED". When I get a new toy, for some reason my pockets get very heavy...
Replaced reverse and stop are fine but the turn signal ones make them flash very fast... (OEM bulbs worked fine)
Are the turn signals just not "plug & play"? Do I need and additional part or different flasher relay???
I'm OK with mech stuff but zero knowledge with auto electric.
Thanks in advance for the education!
tr
#14
CF Veteran
Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,097
Likes: 0
Received 8 Likes
on
7 Posts
Year: '98
Engine: 4.0 I6
For the other issues, check to see if you have a trailer hitch module and see if unplugging it fixes the strange issues, mine was feeding back into the turn signal circuit so the brake lights were sending "phantom" voltage into the turn signals (they were illuminating slightly). One way diodes would fix that.
Also check your lighting grounds because those can cause really strange issues as well
#15
CF Veteran
Join Date: Jun 2016
Location: Santa Clarita California
Posts: 2,138
Likes: 0
Received 277 Likes
on
243 Posts
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0L
You mite want to try some LED lights that aren't Polarity Sensitive . The 194 bulbs can make you have some problems but if you use non polarized bulbs it could fix your problems .
