Ol' Green

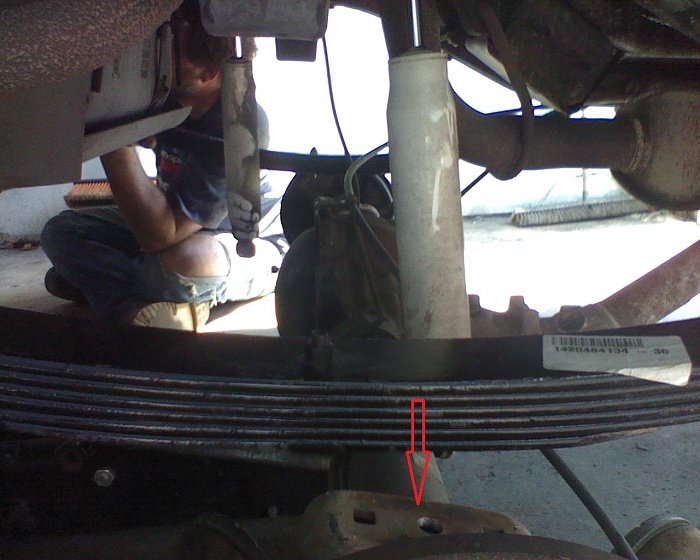

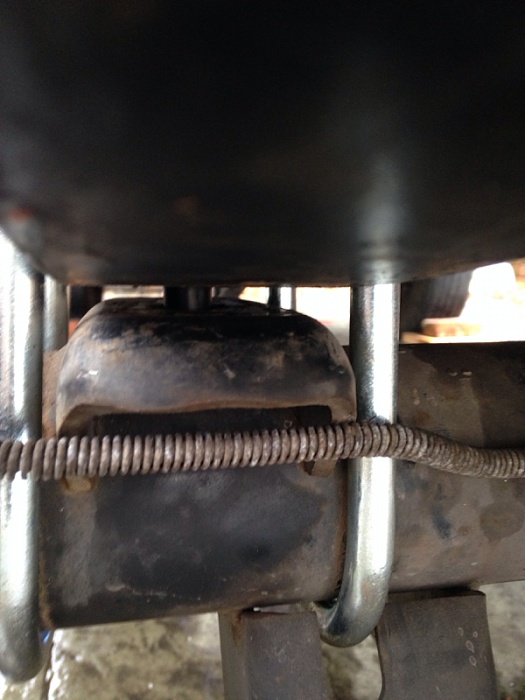

Just added 3.5" leaf springs from RE, but the nub on the bottom doesn't fall into the hole on the plate. Therefore, its not flush with the axle. Ive come to the conclusion that the nub is too big, so i just tightened the u-bolts anyway. Is the vehicle still safe to drive?

skrewy

I would say no don't drive it like that

PocketsEmpty

Just drill out the hole on the spring perch bigger until it fits. Definitely do not drive it like this!!

freegdr

9/16 bit required just did same set of springs on Saturday.

kgm

Yup, drilled mine out just a touch. I think I ended up with a 5/8" bit because I couldn't find a 9/16

BrandonSS

Is the center pin really too big or is the axle at an angle causing it not to go in?? I would be hesitant on drilling out the plate because that is what makes your axle alignment true.

XJPat

You have to drill the plate, its in the instructions. Do not drive it like that.

sreeb

Don't go oversize. If you lose any tension on the ubolt, it will slip every time you brake or accelerate causing a clunk and wallowing out the hole.

Dumajones

kgm

Too late!

Why does RE use these oversized center pins?

I ARE EL1TE

They probably forgot to account for the thickness of the paint.

Ol' Green

So if it was the paint, hypothetically i could sand it off the pin and it would fit?

Dan91

They are intentionally over sized. The stock centering pins have been known the shear off road. It's even in the directions to drill them out.

Ol' Green

I should probably start reading the manufactures opinion...

tssguy123

Uh, jeez... **** like this scares me... makes you wonder what kind of shoddy work is driving down the road.
