#1
Junior Member
Thread Starter
Join Date: Jan 2009
Location: Sacramento
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4L six
Interior mods
My old '89 XJ has remained pretty stock since I bought it new 26 years ago. I'm curious how people re-do the interior once it wears out. My headliner is collapsing for the second time and rather than try and glue replacement fabric to the worn-out cardboard backing, I'd like ideas based on what other people have tried. For example is there a diamondplate-pattern flooring material that can be made to fit, or what. Perhaps there are websites I'm not familiar with where these customizations are described. Thanks.
#2
CF Veteran
Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,014
Likes: 0
Received 14 Likes
on
14 Posts
Model: Cherokee
http://www.azzysdesignworks.com/gauges/ has custom gauge faces,For floor mats that work good http://www.quadratec.com/showcases/q...t_cherokee.php .If you want switch panels http://www.prime4x4.com/index.htm and they have wide range of stuff from usb charger ports to a gauge hole you can use for any gauge you want to add.Only thing else i can add is changing all the interior lights to leds.
#3
Senior Member
Join Date: Mar 2012
Location: Racine, WI
Posts: 974
Likes: 0
Received 8 Likes
on
7 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Headliner board is fiberglass unless the older XJ's used cardboard, but cardboard sounds like the dumbest material to use for that. Using a fabric other than foam-backed headliner fabric tends to last longer as well. Just make sure it is thick enough that you don't get glue soaking through it. I don't understand why the foam backing is the conventional thing because it does nothing except for break-down over time and separate the fabric from the adhesive. Some people have just painted/bed-lined their headboards as well; I don't think it looks very good usually, but it's your Jeep and your choice.
I believe Rugged Ridge is the actual designer of the "Quadratec" floormats and Q-tec just rebadges them and pretends like they are their own because that "New!" one-piece rear mat has been offered by Rugged Ridge for years. Great floor mats either way; I have some myself. I just don't like how Q-tec pretends to take so much credit for a product that is not really their own.
If your upholstery is getting worn-out, there are shops that specialize in restoring it, or there are some really nice custom seat covers out there that fit perfectly and look great.
I believe Rugged Ridge is the actual designer of the "Quadratec" floormats and Q-tec just rebadges them and pretends like they are their own because that "New!" one-piece rear mat has been offered by Rugged Ridge for years. Great floor mats either way; I have some myself. I just don't like how Q-tec pretends to take so much credit for a product that is not really their own.
If your upholstery is getting worn-out, there are shops that specialize in restoring it, or there are some really nice custom seat covers out there that fit perfectly and look great.
#4
My old '89 XJ has remained pretty stock since I bought it new 26 years ago. I'm curious how people re-do the interior once it wears out. My headliner is collapsing for the second time and rather than try and glue replacement fabric to the worn-out cardboard backing, I'd like ideas based on what other people have tried. For example is there a diamondplate-pattern flooring material that can be made to fit, or what. Perhaps there are websites I'm not familiar with where these customizations are described. Thanks.
Last edited by jmg; 07-12-2015 at 07:47 PM.
#6
CF Veteran
Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Likes: 0
Received 2 Likes
on
2 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
I dig the bench seat. Reminds me of my 1972 chevelle, me and my buddies would clean her up and armor-all the vinyl seats and would slide door to door when turning sharp. I miss that car. lol
Trending Topics
#8
Seasoned Member
Join Date: Jan 2015
Location: Metro Detroit
Posts: 398
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Interior mods

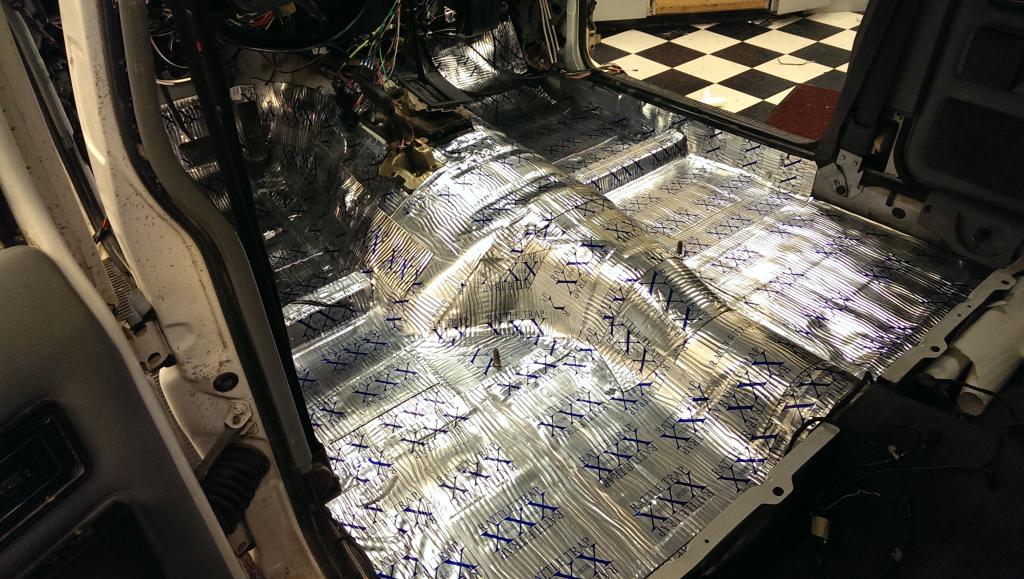

Uber, what sound mat is that? I'm trying to find an alternative to Dynamat that won't cost me $200 to knock out some of the heat that comes up through the trans tunnel.
#10
Member
Join Date: Aug 2012
Location: New Hampshire
Posts: 105
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
I'm in the process of redoing the hole inside of my Cherokee I went to lows (Home Depot) kind of place I'm not sure if their nation wide
I picked up flexible aluminum 5 mil insulation 6inch by 25-30 feet for 16.00 a role
It's worked great even with out having everything back in the jeep it's a big difference
I also used insulation that looks like bubble wrap covered in aluminum foil and that works amazing also.
#11
Junior Member
Join Date: Oct 2011
Location: Papillion, NE
Posts: 88
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0
Okay, what did you pull that bench seat out of? Getting her a little closer sounds like something I'd like to happen.
Then again, I guess I'd have to get her to ride in my XJ at all before that would work.
Shoot.
Then again, I guess I'd have to get her to ride in my XJ at all before that would work.
Shoot.
#13
Junior Member
Thread Starter
Join Date: Jan 2009
Location: Sacramento
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4L six
Lots of great ideas and great work shown here! But I still don't have any ideas on replacing / improving the headliner. My old cardboard backing doesn't seem the most reliable substrate for any material, and the stock replacement material that glues on doesn't appeal to me anyway.
I guess that the original cardboard has to be used, if it will hold up, and anything I like glued on, but that seems like only half a solution. I'm wondering what people have learned when completely redoing the ceiling.
I guess that the original cardboard has to be used, if it will hold up, and anything I like glued on, but that seems like only half a solution. I'm wondering what people have learned when completely redoing the ceiling.
#14
Senior Member
Join Date: Mar 2012
Location: Racine, WI
Posts: 974
Likes: 0
Received 8 Likes
on
7 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
I've never seen anyone have the board fail on them. I've seen people put new foam-backed headliner on it. I've seen suede put on. I've seen it painted. Bed-liner.
If yours is in such bad shape, that's an exception to the rule that they hold-up pretty well, so go to a junkyard and pull one to use instead.
If yours is in such bad shape, that's an exception to the rule that they hold-up pretty well, so go to a junkyard and pull one to use instead.
#15
Junior Member
Join Date: Jul 2013
Location: Los Angeles, California
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, 6cyl., performance chipped
Headliner and interior seat replacements and door panels
Headliner board is fiberglass unless the older XJ's used cardboard, but cardboard sounds like the dumbest material to use for that. Using a fabric other than foam-backed headliner fabric tends to last longer as well. Just make sure it is thick enough that you don't get glue soaking through it. I don't understand why the foam backing is the conventional thing because it does nothing except for break-down over time and separate the fabric from the adhesive. Some people have just painted/bed-lined their headboards as well; I don't think it looks very good usually, but it's your Jeep and your choice.
.
.
I chose a black vinyl material to glue onto the board and I followed two you tube videos carefully on the glue process and cutting. This material is durable with a cloth backing and it stuck well and 24 hours after I did the reinstallation of the board with material and now have a cleanable wipeable leather look to my roof inside. Looks awesome and its durable. Don't shortcut the glue and take your time allowing it to get tacky this is the most important part of the entire process. Get some help with removal and putting the piece back in so that you don't break it. if you need a new board I suggest going to get one from your wrecking yard or dealer. when I peeled off the old material i used a broom to sweep it clean and all the old crumby stuff has to come off for the new stuff to stick so be sure to get it all clean. It took 3 days with start to finish to get it done right and a friend.
I found a whole new interior at my junk yard seats and door panels that worked from a newer jeep that crashed. prices were okay and wow what a difference for my old 88. everything bolted right in and that is the cool thing about jeeps, why change every year if it works keep it. body styles to interior parts and colors, most of it just bolts on in from just about any year 80s and 90s that I found so far, most consoles and dash parts inclusive. i took a paper plate or cardboard trace of my bolt patterns and sizes with me if i was not sure if the fit would work. paper is easier to carry in than parts you may be charged for that are already yours!
All done and rolling, you will fall in love with that jeep all over again! Good luck.
