Header Panel Compatibility
#1
Member
Thread Starter
Join Date: Jul 2015
Location: Nashville, TN
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
Header Panel Compatibility

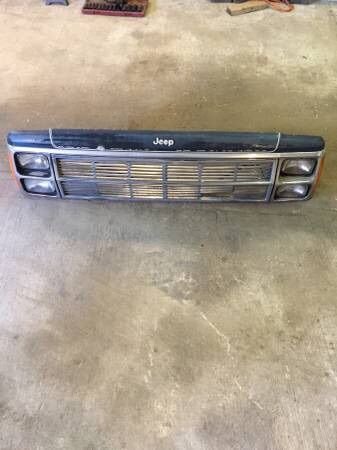

Theres someone selling a double headlight header panel for an older style XJ near me and I'm wondering if it'll fit a 94.
#2
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Originally Posted by LittleRed94
Theres someone selling a double headlight header panel for an older style XJ near me and I'm wondering if it'll fit a 94.
#3
Member
Thread Starter
Join Date: Jul 2015
Location: Nashville, TN
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
I found out its a 88. He says he cut all the wiring but all the harnesses are still attached to the panel. I'll just have to wire it all in to my existing harness for now.
#4
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Originally Posted by LittleRed94
Thank you, just need confirmation on that, he saying I either have to buy it tomorrow or he's trashing it.
I found out its a 88. He says he cut all the wiring but all the harnesses are still attached to the panel. I'll just have to wire it all in to my existing harness for now.
I found out its a 88. He says he cut all the wiring but all the harnesses are still attached to the panel. I'll just have to wire it all in to my existing harness for now.
#5
Member
Thread Starter
Join Date: Jul 2015
Location: Nashville, TN
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
#6
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Originally Posted by LittleRed94
Alright thank you.
Looks like I'm gonna have four headlights soon
Looks like I'm gonna have four headlights soon
#7
CF Veteran
Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,014
Likes: 0
Received 14 Likes
on
14 Posts
Model: Cherokee
If you need the wiring harness in a pinch the 81-87 chevy/gmc truck used the same dual lights and same size lights.If you want to wait you can do a h4 housing swap and get a harness with the relays for brighter lights.
Trending Topics
#8
Member
Thread Starter
Join Date: Jul 2015
Location: Nashville, TN
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
That way I can do a Hid conversion.
Two lights pointed low and narrow for normal driving then wire the lower lights as the highbeam to point higher up and outwards to see deer.
Hoping that setup wont blind people.
#9
CF Veteran
Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,014
Likes: 0
Received 14 Likes
on
14 Posts
Model: Cherokee
A true hid with projector housings won't blind people,But if you do the ebay cheapo hid that drop in a h4 housing those will blind people.Being its a 4x6 size light you would have to make your own projectors since no one makes a real set for that size.Honestly if it was me i would spend a tiny bit more and get jw speaker led lights.
#10
Member
Thread Starter
Join Date: Jul 2015
Location: Nashville, TN
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
Good news. When he cut the wires he cut the Wagoneers side. The wiring harness is fully intact. Should just be plug-n-play right?
#12
Member
Thread Starter
Join Date: Jul 2015
Location: Nashville, TN
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
Work got super busy and I moved so I still haven't done the swap but today I pulled it all apart for a cleaning and here it is. Oh and my garage is super small so my hood is my work bench.
*The main panel was sitting on my roof rack drying from a high pressure wash
Thats the harness laying with a bunch of my motorcycle parts.
Picked up some paint to make it match my jeep. Krylon is surprising close to the jeeps red colour, I went ahead and did this. Think it looks pretty nice.
*The main panel was sitting on my roof rack drying from a high pressure wash
Thats the harness laying with a bunch of my motorcycle parts.
Picked up some paint to make it match my jeep. Krylon is surprising close to the jeeps red colour, I went ahead and did this. Think it looks pretty nice.
#15
Seasoned Member
Join Date: Jul 2013
Location: Groveland, CA
Posts: 426
Likes: 0
Received 8 Likes
on
8 Posts
Year: 1996 Two Door Wagoneer
Model: Cherokee
Engine: 4.0L
You scored real good! Usually hard to come by those. 86-90 Wagoneer XJ only. Orange corner lights look great too. Those are even harder to come by since they are not interchangeable with regular XJ header panel corner lights.
I installed a 90 Waggie header panel on my 96. Just did some clean up, painting, and wire splicing.
You will enjoy the independent adjustability of the high and low beams. Remember, the low beams are the top bulbs (better downward shine pattern) and the high beams are the lower bulbs.
Also, I bought a set of new bezels from Quadratec for very little money. Don't know if they have any left. And Collision Parts had some new grills for that header panel. That was about a year ago. Cheap too.
I installed a 90 Waggie header panel on my 96. Just did some clean up, painting, and wire splicing.
You will enjoy the independent adjustability of the high and low beams. Remember, the low beams are the top bulbs (better downward shine pattern) and the high beams are the lower bulbs.
Also, I bought a set of new bezels from Quadratec for very little money. Don't know if they have any left. And Collision Parts had some new grills for that header panel. That was about a year ago. Cheap too.
Last edited by HappyTrails; 10-25-2015 at 10:01 PM.
