Hey all. I’m moving my IRO long arm 3-link from one 2001 Cherokee over to my other 2001 Cherokee and need to replace the stock frame side lower control arm mounts that were removed so that I can run short arms again.

I’ve found these mounts from Barnes that I think will work. https://barnes4wd.com/products/frame-link-mount-bracket-pair.

Has anyone ever done this or have any input/advice?

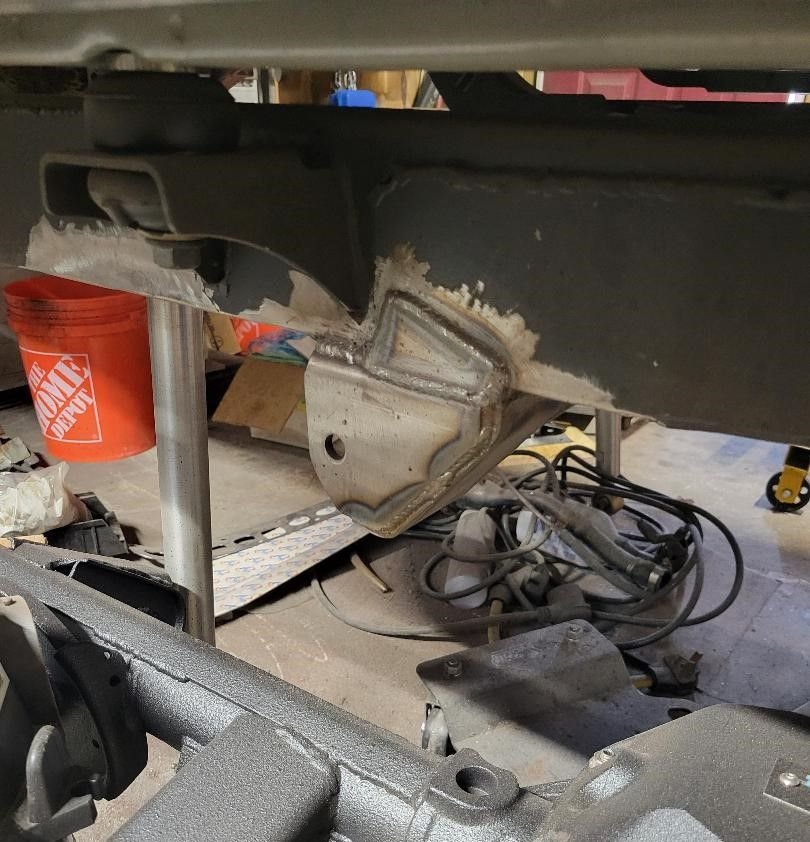

Yup, I used those exact brackets for a custom 4-Link on an LJ. 2-5/8" mounting width. I added small gussets, not really necessary.

Very simple install. The only crucial thing is tacking the mount with the link in place. This ensures the mount matches the angle of the adjacent mount to avoid rod end bind.
