Old Feb 23, 2014 | 11:28 AM
  #16
Tom95YJ's Avatar
CF Veteran

Joined: Nov 2011
Posts: 3,603
Likes: 3
From: SLC, Utah
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by 98XJ40K
Bumpstops are a must. They will limit your uptravel (not chewing up fenders and tires = good). They also help by working as a pivot and will allow the opposing side to possibly droop further (may be limited by arms, brake lines, limit straps, etc).
This ^ OP go read the lcog thread in the faq's section there is a good deal of great info that you need to know in there about proper suspension

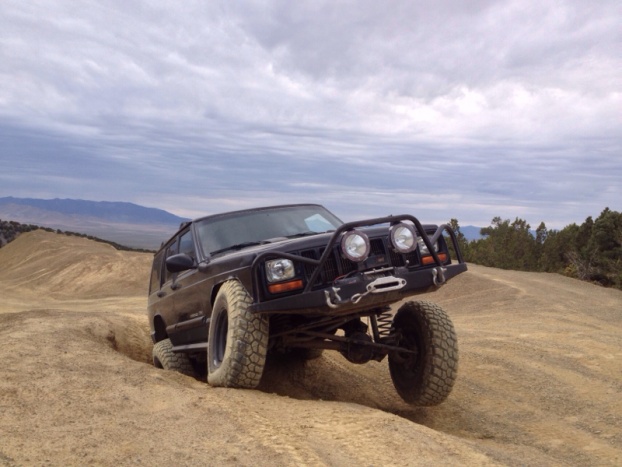

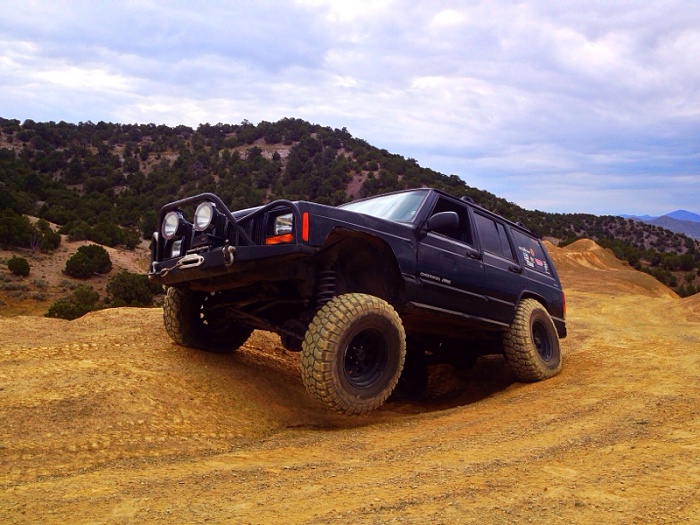

Here's what my xj will do with extended bumpstops notice the tire stopped 1" from the fender. And the coil is unseated 4-5" on the other side.
Attached Thumbnails Fender Flares-image-4025156989.jpg   Fender Flares-image-771938406.jpg

Last edited by Tom95YJ; Feb 23, 2014 at 11:32 AM.
Reply
Old Feb 23, 2014 | 12:50 PM
  #17
98XJ40K's Avatar
Senior Member

Joined: Oct 2011
Posts: 689
Likes: 2
From: Longview, TX
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Tom95YJ
This ^ OP go read the lcog thread in the faq's section there is a good deal of great info that you need to know in there about proper suspension Here's what my xj will do with extended bumpstops notice the tire stopped 1" from the fender. And the coil is unseated 4-5" on the other side.
That picture is a perfect example. More uptravel would do you no good in that, and many other situations. It is also trying to push the driver side wheel down to make contact. You will want this especially if you are not locked front and/or rear.
Reply
Old Feb 23, 2014 | 02:36 PM
  #18
Ianf406's Avatar
CF Veteran

Joined: Feb 2010
Posts: 3,353
Likes: 1
From: Missoula, MT
Year: 1999
Model: Cherokee
Engine: Golen 4.6 Stroker, AFE Headers, 62mm TB, 24 LB Injectors, Brown Dog kit, HF Cat, 3" Exhaust
Default

Like they said, bumpstops are a must. The only time tons of up travel is needed is when both tires come down at once.(jumping, driving off a ledge stc) even then bumpstops are going to save your sheet metal and rubber. There are tons of ways to make bumpstops.. You can buy adjustable ones/ pull out a tennis ball etc. to make up for different tire sizes.

Hey Tom, if you were a few inches taller, your other tire would still be on the ground
Reply
Old Feb 23, 2014 | 07:06 PM
  #19
Tom95YJ's Avatar
CF Veteran

Joined: Nov 2011
Posts: 3,603
Likes: 3
From: SLC, Utah
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Ianf406
Like they said, bumpstops are a must. The only time tons of up travel is needed is when both tires come down at once.(jumping, driving off a ledge stc) even then bumpstops are going to save your sheet metal and rubber. There are tons of ways to make bumpstops.. You can buy adjustable ones/ pull out a tennis ball etc. to make up for different tire sizes. Hey Tom, if you were a few inches taller, your other tire would still be on the ground
If I had a longer shocks I would also !
Reply
Old Feb 24, 2014 | 08:58 PM
  #20
Gimpy's Avatar
Thread Starter
Newbie

Joined: Dec 2013
Posts: 17
Likes: 0
Year: 1997
Model: Cherokee
Engine: Stock stright 6 4.0
Default

Originally Posted by Tom95YJ
This ^ OP go read the lcog thread in the faq's section there is a good deal of great info that you need to know in there about proper suspension

Here's what my xj will do with extended bumpstops notice the tire stopped 1" from the fender. And the coil is unseated 4-5" on the other side.
Can you have your tire turned and not rub?? Also, what extended stops do you recommend?
Reply
Old Feb 25, 2014 | 09:51 AM
  #21
Tom95YJ's Avatar
CF Veteran

Joined: Nov 2011
Posts: 3,603
Likes: 3
From: SLC, Utah
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Gimpy
Can you have your tire turned and not rub?? Also, what extended stops do you recommend?
Yep no rubbing lock to lock or stuffed I use the hockey puck method for bumpstops
Reply
Old Feb 25, 2014 | 10:45 AM
  #22
PurpleToxin505's Avatar
CF Veteran

Joined: Sep 2013
Posts: 2,820
Likes: 5
From: Albuquerque, NM
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Yup as everyone said you need extended bumpstops, it doesnt limit flex it limits up travel. and if you do ramp your jeep, you can get air bump stops so the landing isnt so harsh
Reply
Old Mar 2, 2014 | 07:36 PM
  #23
Gimpy's Avatar
Thread Starter
Newbie

Joined: Dec 2013
Posts: 17
Likes: 0
Year: 1997
Model: Cherokee
Engine: Stock stright 6 4.0
Default

Originally Posted by Tom95YJ
Yep no rubbing lock to lock or stuffed I use the hockey puck method for bumpstops
So you just put in a 2 inch puck to extend your bump stop? I saw those online but didnt know if they would be good or not. What about the rear? I mean i look at see that yes a bump stop will stop it form rubbing when wheel stright but turned it seems like it might still rub, but hey, one thing at a time.
