I got a lift put on years ago, but was done by a shop and I can't even remember what all I got other than a Rough Country 4.5 kit...

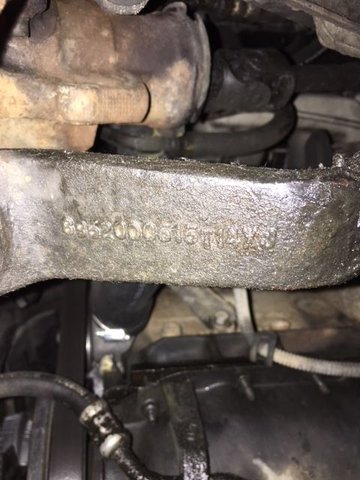

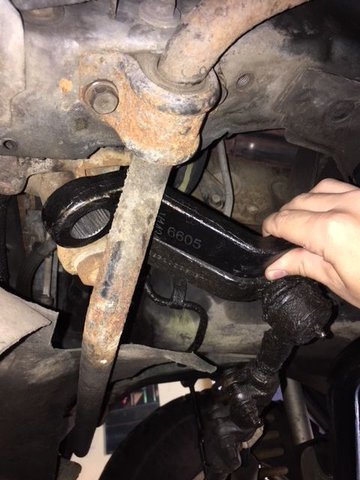

So my apologies if this is a stupid question, but I recently got a new track bar, and was told I would need a drop pitman arm. So here's the new drop pitman arm compared to the old one:




So do I already have a drop pitman arm then? or is the angle deceiving? I will say steering linkage has very good angle compared to new track bar, as if they are the same angle or super close. I can provide a picture of the entire front suspension if that helps.

Or did they send me the wrong part?



AND if this is a duplicate, anyone in the market for a drop pitman arm?

(I'm kidding) I'm not sure what the rules even are for selling parts on here. I'll probably just return it through rough country if that is the case. I've tried searching for images of stock ones with no luck.



I believe the Grand Cherokee (ZJ) has a Pitman arm that can be fitted and is a 1" drop ?

In that picture, those Pitman arms appear the same size
