electric fan setups in cherokees
#1
Member
Thread Starter
Join Date: Jan 2013
Location: north jersey
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
electric fan setups in cherokees
who has removed their mechanical fan in their xj and run 2 or 3 electric fans instead? what size fans did you use, how did you mount them to the radiator, how did you wire them, and what brand did you use?
im thinking about doing this swap im my xj soon
im thinking about doing this swap im my xj soon
#2
Member
Join Date: Sep 2010
Location: Longview, TX
Posts: 150
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
I replaced my mechanical fan with 2 electric ones. They were either 10 or 11 inches (some offbrand, Ebay special) and spanned the entire height of the radiator. I just used those zip strip type mounts and wired both fans up to a relay and a toggle in the cab. My rig is strictly for wheelin' so I didn't need anything extravagant, just simple and cost effective.
There is alot of information about this out there. Pretty simple install.
There is alot of information about this out there. Pretty simple install.
#3
Member
Thread Starter
Join Date: Jan 2013
Location: north jersey
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I replaced my mechanical fan with 2 electric ones. They were either 10 or 11 inches (some offbrand, Ebay special) and spanned the entire height of the radiator. I just used those zip strip type mounts and wired both fans up to a relay and a toggle in the cab. My rig is strictly for wheelin' so I didn't need anything extravagant, just simple and cost effective.
There is alot of information about this out there. Pretty simple install.
There is alot of information about this out there. Pretty simple install.
#4
Seasoned Member
Join Date: Jan 2012
Location: Tacoma,WA
Posts: 283
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.o
Running the Taurus fans with volvo wiring and controller, built my own fan shroud on the radiator. The fans make quick work out of dropping temps.
#5
CF Veteran
Join Date: Jan 2011
Location: Havana fl
Posts: 1,648
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
outlaw, could you explain the volvo end of it? I have some tore azz fans lying around, but haven't used them due to current draw when you engage high speed
#6
CF Veteran
Join Date: Jul 2012
Location: San Antonio, TX
Posts: 4,104
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
I still need to make a shroud for the lower half that hangs below the radiator
#7
CF Veteran
Join Date: Feb 2012
Location: Hamburg AR
Posts: 1,249
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO

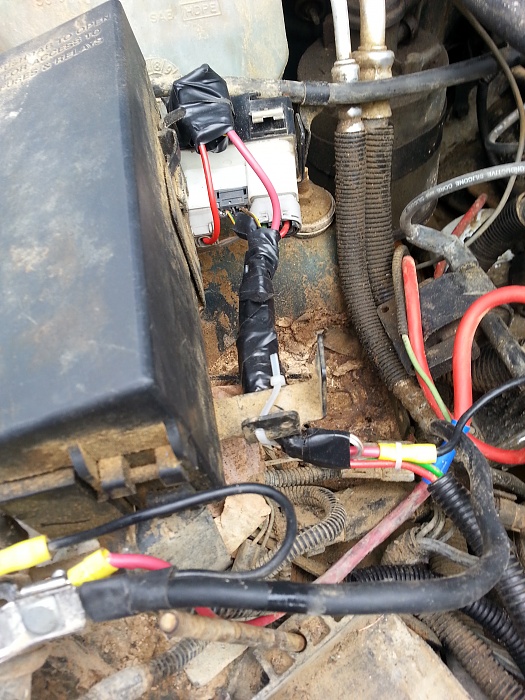

I am running a BMW M3 Electric fan. It is a 2 speed fand. Motor and blade are the same as the Taurus fan. I got it at PickNPull on half price weekend for $12. The shroud is smaller and more narrow. It fit in my jeep much better. I wired mine with the Volvo relay. I wired mine to a on-off-on switch and I manually turn it on and off. I have only needed the high speed twice. Once I forgot to turn on the low speed and it got warm. The other was an extremely long climb. I love the HP gain from deleting the mech fan.
I will add this. If your having over heating issues I would look at all of your other cooling system before converting to electric. If you have a bad radiator your still gonna have that same rad after the swap.
I will add this. If your having over heating issues I would look at all of your other cooling system before converting to electric. If you have a bad radiator your still gonna have that same rad after the swap.
Trending Topics
#8
Seasoned Member
Join Date: Jul 2013
Location: Spokane Valley, WA
Posts: 432
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
I am running a BMW M3 Electric fan. It is a 2 speed fand. Motor and blade are the same as the Taurus fan. I got it at PickNPull on half price weekend for $12. The shroud is smaller and more narrow. It fit in my jeep much better. I wired mine with the Volvo relay. I wired mine to a on-off-on switch and I manually turn it on and off. I have only needed the high speed twice. Once I forgot to turn on the low speed and it got warm. The other was an extremely long climb. I love the HP gain from deleting the mech fan.
I will add this. If your having over heating issues I would look at all of your other cooling system before converting to electric. If you have a bad radiator your still gonna have that same rad after the swap.
Attachment 207687
Attachment 207688
Attachment 207689
Attachment 207690
I will add this. If your having over heating issues I would look at all of your other cooling system before converting to electric. If you have a bad radiator your still gonna have that same rad after the swap.
Attachment 207687
Attachment 207688
Attachment 207689
Attachment 207690
hey do you have the Volvo Relay part number or what and where you got it out of? Same with the Fan?
Black89
#13
Member
Thread Starter
Join Date: Jan 2013
Location: north jersey
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I am running a BMW M3 Electric fan. It is a 2 speed fand. Motor and blade are the same as the Taurus fan. I got it at PickNPull on half price weekend for $12. The shroud is smaller and more narrow. It fit in my jeep much better. I wired mine with the Volvo relay. I wired mine to a on-off-on switch and I manually turn it on and off. I have only needed the high speed twice. Once I forgot to turn on the low speed and it got warm. The other was an extremely long climb. I love the HP gain from deleting the mech fan.
I will add this. If your having over heating issues I would look at all of your other cooling system before converting to electric. If you have a bad radiator your still gonna have that same rad after the swap.
I will add this. If your having over heating issues I would look at all of your other cooling system before converting to electric. If you have a bad radiator your still gonna have that same rad after the swap.
#14
Seasoned Member
Join Date: Jan 2012
Location: Tacoma,WA
Posts: 283
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.o
If you grab the thermal switches from the volvo it will come on when temps are reached. Just hit a pick n pull and look at older volvos with dual fans grab the relays and thermal switches wire it in. Mine only comes on when it gets warm, but wiring a switch would be easy.
#15
CF Veteran
Join Date: Feb 2012
Location: Hamburg AR
Posts: 1,249
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
If you grab the thermal switches from the volvo it will come on when temps are reached. Just hit a pick n pull and look at older volvos with dual fans grab the relays and thermal switches wire it in. Mine only comes on when it gets warm, but wiring a switch would be easy.
I may wire it up automatically later with an over ride off switch.
