dukie564

Thought I would post some information / thoughts that I gathered this weekend whilst swapping my XJ steering box for a Durango box. I also chose to swap in a tie rod from a v8 ZJ, and add a power steering cooler to the mix at the same time. So here are my thoughts / findings:

First the steering box swap. The new box I pulled out of a 99 Dodge Durango with the v8 engine. A 1998 Durango will work also as long as it's the non-plow version. Wow what a pain that was - the durango not only has a crossmember directly beneath the box and drag linkage, but it also has 2 pitman arms, one on the box, the other attached to the frame, making it a huge pain to separate where the joints (no room for a puller to fit). Eventually got it off after a bunch of banging and swearing. I also grabbed a tie rod from a V8 Grand Cherokee ZJ. Actually i'm joking, i grabbed the tie rod, sway bar, and drag link because i wanted to compare them all to the stock XJ components.


Sooo...

Durango Box on the left (freshly cleaned and painted), stock XJ box on the right.

The Durango box has exactly the same mounting and length, but as the picture may/may not show, the Durango cylinder is much bigger than the XJ's - almost 1/4" bigger. In this case bigger = stronger, thus the upgrade.


Onto the linkages/sway bar.
After removing my stock XJ linkages, i compared them to the ZJ linkages i pulled from the yard.

First the sway bay - i thought this would be exactly the same, but it wasn't. The ZJ bar is shaped completely different, and although the mounting points are the same, the bar ends that attach to the links are angled very differently. On a stock height XJ, this means the mounting points are much higher when that bar is rotated to the same place. Perhaps this bar can be used on a lifted XJ instead of extending the links? Someone want to test this out?

So pictures: ZJ is the black one on top, XJ is a rusty one on the bottom

Exactly the same size bar as a 1995 XJ Sport:
ZJ:XJ:

Next the drag link - mostly exactly the same, the only difference seemed to be the angle of the attachment point for the steering stabilizer...not a big deal. XJ top, ZJ bottom

Exactly the same size bar:
ZJ:XJ:

Onto the REAL upgrade, the tie rod. The ZJ rod is 1/8" thicker, and SOLID. Compared to the XJ's tie rod it was huge and much beefier. The proof is in the pictures: XJ top, ZJ Bottom:

ZJ bar is 1/8" larger diameter:
XJ:ZJ:


So now that we have that settled, my components are set: ZJ Tie Rod, XJ drag link, XJ sway bar, Durango Steering Box. All in a fresh coat of paint and new poly joint boots. Mmmmm yummy.



Now to attach the new, stronger steering box to the frame, i decided to reinforce the mounting point a bit, and at the same time get rid of the crappy stock aluminium spacer. C-ROK sells an awesome steering box reinforcement plate system. I opted for just the inner plate since my wheeling isn't too extreme yet, and future plans for a off-road bumper will occupy the spot used by the outer plate. The inner plate comes with 3 frame sleeves also, which get inserted before the bolts are put though. It also utilizes the very strong stock tow point bolt, adding an extra bolt. All this means that any load going through the steering box off-road will be distributed better along the frame rather than just at the bolt holes.

As you can see this thing is pure beef - 3/16 plate

Now the bigger dimensions of the durango box require the use of some additional spacers - i found 2 washers to be the perfect amount. You're going to need 3 new 7/16"-14, 4" long grade 8 bolts to get enough length, and also a 9/16" bolt for the tow point hole. Here you can see it in place:



And....BAM!



I at one point had found a writeup, i believe on Stu Olsen's Jeep site, where he had installed a power steering cooler. I though why not, it's a great idea, and certainly can't hurt to cool the fluid better when you're offroad at low engine speed. So when i was at the junk yard i also picked up a tranny cooler off a random truck - any will work as long as it's a good size to fit. I put mine inside the radiator support beam, and using some new transmission line, spliced it in line with the low pressure return for the steering box.

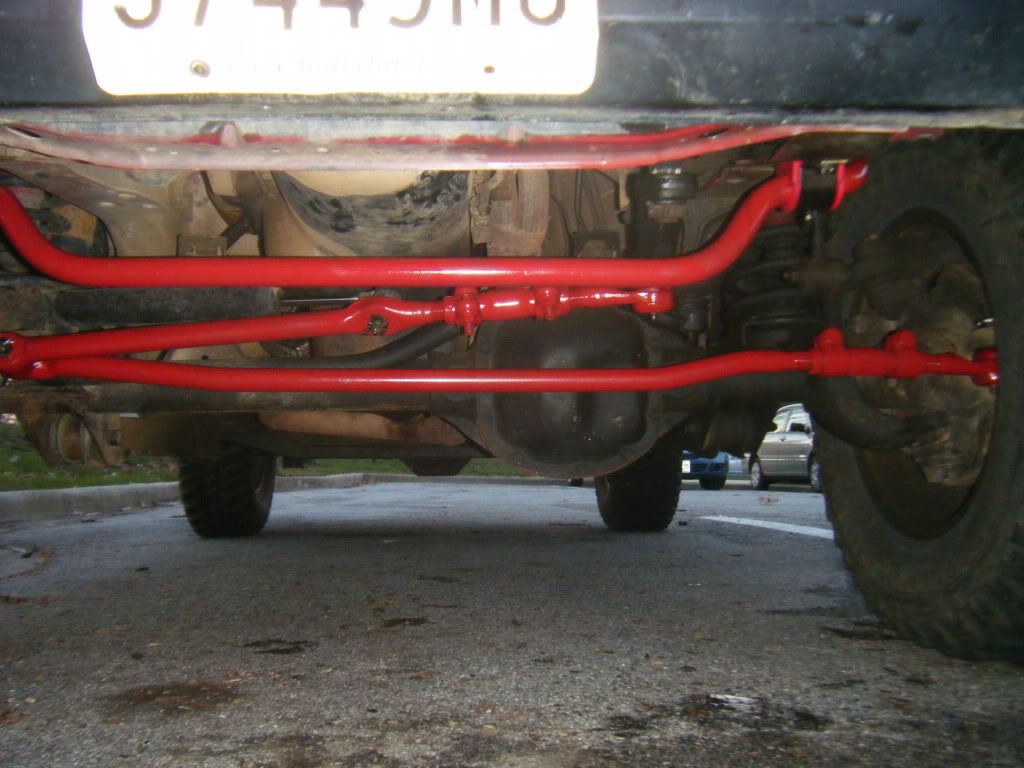

So here's the finished product. I think it looks pretty damn sexy.



So now the effects. I've driven it a few times over the past couple days, and my impression is wonderful. Overall the steering feels tighter, and i can now turn corners using two fingers. The ratio seems tighter also, it only takes 1/2 turn of the wheel to turn a sharp 90* onto a side road, and the truck doesn't seem to want to drift as much side to side. Overall a great mod that I can't wait to test out off-road. It's a lot of work, but well worth it.

Superhero

Nice write up!

Did you lose any of the XJs excellent turning radius by switching to the Durango box?

dukie564

The guys at JeepForum turned this into a full-fledged write-up, so here's the supplement i posted for them.



well i wasn't exactly planning on turning this into a full install write-up, but since the masses demand satisfaction, i am further adding to the detail. I didn't document every step, but i did take a few more pictures while doing the work so here they are for your pleasure....

Here's a before picture, notice the abundance of power steering fluid soaked parts


Here's a shot of the power steering lines. The High pressure line is the front port, the return in the rear port. Do NOT switch these when you hook everything back up. You need an 18mm stubby wrench. I didn't have one, so my adjustable stubby crescent had to do. To install the cooler i used a hack saw to cut the metal return line right before it turned back toward the rear of the vehicle, and clamped on the new rubber line.


At this point with everything disconnected, the weight of the tires took over, and turned my jeep into a retarded looking abomination. I had a good laugh...


Got the stock steering box out without too much fanfare. I had pretreated all the bolts for the week prior with a good helping of PB blaster twice a day, so no issues there. The hardest part was holding up the box while trying to separate the steering shaft from the box - this is one point at which i wish I had someone there assisting from above (the second time being sliding the shaft onto the new box, which was even worse). I will make a point to note - be sure you remove the pitman arm nut and pull the arm BEFORE unbolting the box. Also, when you're pulling the arm, leave the nut threaded on a little bit so the pitman arm doesn't go flying across the parking lot when it explodes off the shaft (ask me how i know). Also seen here is the crappy aluminum spacer (which i recommend you replace) - mine came off intact, many will not.

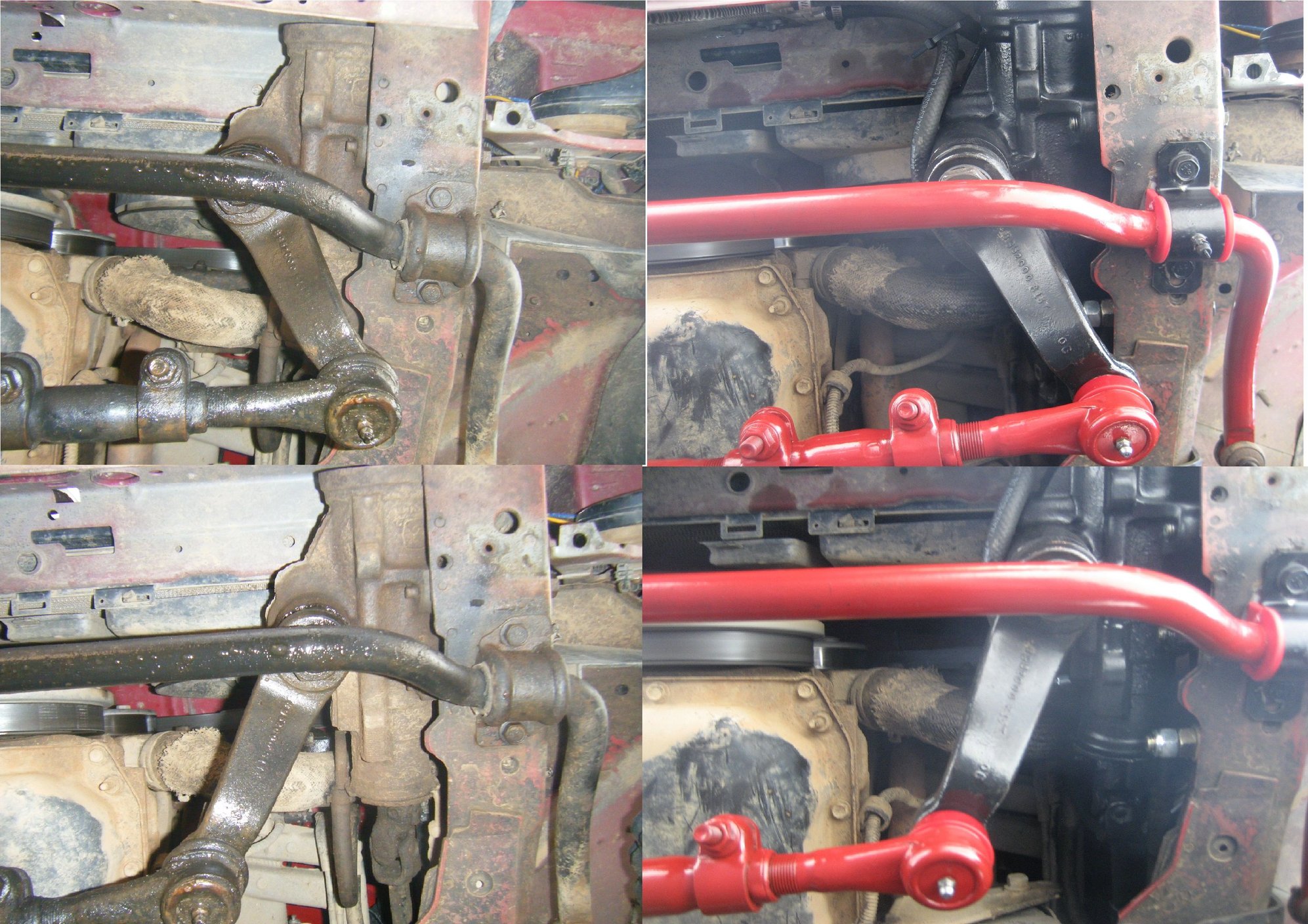

Ok so now to compare the box's range. Note that the range is slightly bigger than what is shown due to the wheel returning a bit at full lock (no one to hold the wheel all the way turned), but should give a good comparison. They are very close to being the same.







And...that's all I got for you.

Superhero

Awesome thanks man! You only needed to say that the turning radius was about the same, but instead you took the time to post more pics and information. You rock dude!

Superhero

Oh and I love how you're giving the bird to the crappy aluminum spacer and stock box. :P

PingPong

Your power steering pump will thank you for the trans cooler. I had to do that to mine cause with a locked front, I kept smoking PS pumps. Added a cooler and no issues

_StationWagon_

I also had the Durango box swap done a little over a year ago. That along with Currie steering & the heep steers like ... well like my Durango, lol. Recently had a PSC pump added & a cooler for that pump. Very, very worthy upgrades.

Great write-up, Dukie! Pics rock.

djlarroc

Excellent writeup!!!

Ike1990

This just got tagged in to my favorites, would this work on a 1990 XJ? i know they are little funker then anything after 93

dukie564

yes

AeroSynch

I did the same to my 99 with the C-ROK spacer and Durango box. I guess I am not the only one that saw the C-ROK spacer does not align perfectly with the last hole? (I have a bumper that uses the same hole but the spacer is a little off there)

dukie564

a 9/16" bolt fit fine. The hole in the frame is a bit oblong also.

black_police_xj

great info. thanks . I will be doing this very, very soon. ..., when i get the spacer and find a box. thanks!

_StationWagon_

My C-Rok spacer was on for years before the Durango swap. No issues - everything still goes together just fine.

3x-xj

I lost a little turning radius with the durango box. other than that it's solid
