Dana 60 in XJ
#1
Newbie
Thread Starter
Join Date: Apr 2016
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Dana 60 in XJ
Hey guys...I currently own a 98 TJ and am looking to add a built XJ as well. I found one on Craigslist that I absolutely love...one quick question though.
Seller claims the rear end is a "GenRight Dana 60". Problem is, I can't find online anywhere that GenRight sells a Dana 60. They have Currie axles on their website but none with their name on it. GenRight sells a 4link truss for a Dana 60 but this isn't linked anyways.

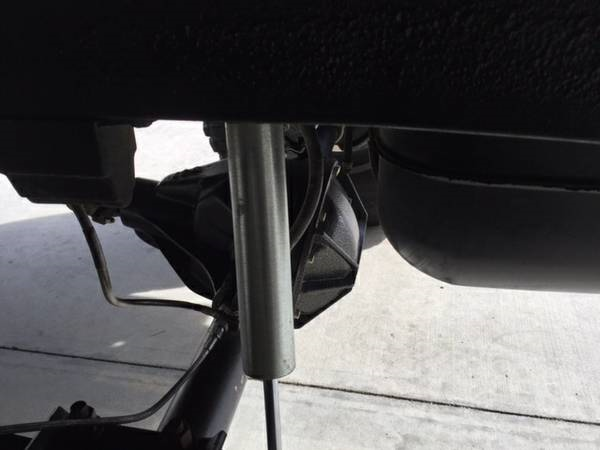

Can anyone tell from this picture what axle it is? Is it a Dana 44 or is it in fact a Dana 60?
Seller claims the rear end is a "GenRight Dana 60". Problem is, I can't find online anywhere that GenRight sells a Dana 60. They have Currie axles on their website but none with their name on it. GenRight sells a 4link truss for a Dana 60 but this isn't linked anyways.
Can anyone tell from this picture what axle it is? Is it a Dana 44 or is it in fact a Dana 60?
#7
CF Veteran
Join Date: Jan 2015
Location: Minnesota
Posts: 2,152
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Originally Posted by RoyalXJ
Solid 60 and 44 covera look almost the same. The axle tubes look like 2.75" like a XJ 44 to me.
Trending Topics
#12
CF Veteran
The 60 shafts a guy showed me were stock. I would hope the after market doesn't neck them down. I'm not sure if the axle was semi float or not.
#13
CF Veteran
Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,014
Likes: 0
Received 14 Likes
on
14 Posts
Model: Cherokee
Big david the axles you seen if they had a hub on the end with lugs thats a semi float axle.A full float has splines on both ends and uses a hub kinda like a old 4x4 font axle has,Most aftermarket dana 60s are semi float and same thing goes for most oem ones are also.
#14
CF Veteran
Thanks for the info. It was a couple years ago & I want didn't pay attention to the end, just the neck down. I was shocked to see it, that's my excuse & I'm sticking to it. LOL
#15
CF Veteran
Join Date: Jan 2016
Location: Newport News, VA
Posts: 1,242
Likes: 0
Received 38 Likes
on
37 Posts
Year: 96 & 88 4 dr Cherokees
FF dana 60 axles DO NOT have splines on both ends. Neither do semi float axles.
On FF the diff end has splines, the wheel end has a 4"-5" diam flange that bolts to the hub with 8 bolt holes. On SF the diff end has spline, and the wheel end has a 6"-8" diam flange the drum/disc bolts to with 5, 6, or 8 lugs, depending on vehicle make.
see here for FF.....note the last sentence in the ad description.
http://www.jeeperz-creeperz.com/YAFF...0-and-80-.html
see here for SF........again, note the last sentence in the ad.
http://www.jeeperz-creeperz.com/YAD7...a-60-E250.html
Some older AMC axles did use splines on both ends, but not dana 60s. The only dana 60 axle that's splined on both ends are front axles, something totally different altogether.
Last edited by TRCM; 04-16-2016 at 12:15 PM.
