dana 44 front steering setup ?? s
06-24-2013, 04:46 PM
#1
Junior Member
Thread Starter
Join Date: Jul 2011
Location: fairfield ohio
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Year: 93
Model: Cherokee
Engine: 4.0 il6cyl
dana 44 front steering setup ?? s
Hey everyone I have a 93 Jeep Cherokee with stock axles. I bought a dana44hp and a 9in out of a 77 f150. I know this is a popular swapI have everything ready to go all the coil spring buckets and tabs are on and weldedonly thing I have left to do is the steering setup.was wondering what everyone else does with this comboI would appreciate any help
06-24-2013, 04:57 PM
#2
CF Veteran
Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1987
Engine: Check
Use DOM tubing and quality heims or GM 1 ton tie rod ends.
Since this is wider than stock you'll want a longer drag link and tie rod, sit the axle under your jeep on its own weight and measure, allow for adjustment at the rod ends.
Since this is wider than stock you'll want a longer drag link and tie rod, sit the axle under your jeep on its own weight and measure, allow for adjustment at the rod ends.
06-24-2013, 05:31 PM
#3
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
this is an interesting one I have wondered too. since I'm pretty sure there is no room to machine for flat top on the 5 lug 44 knuckles? you need to do a knuckle swap for true crossover or histeer. reid is super expensive and I think the 8 lug 44 knuckles bolt on? I'd like some info on that
other wise it's inverted T link, or x-over with tie rod UTK. or OTK with double sheared drag link if there is room for that. wouldn't know for sure
sub'd
naxja would be a good spot for this thread
other wise it's inverted T link, or x-over with tie rod UTK. or OTK with double sheared drag link if there is room for that. wouldn't know for sure
sub'd
naxja would be a good spot for this thread
06-24-2013, 07:28 PM
#7
CF Veteran
Join Date: Mar 2010
Location: Jacksonville, FL
Posts: 6,685
Likes: 0
Received 5 Likes
on
5 Posts
Year: 92
Model: Cherokee
Engine: 4.0
heres mine. 1.5x.25 DOM tubing and 7/8" Ruffstuff Heims.
OTK Inverted T setup and the track bar and drag link are the same length and angle(within 1.5degrees) .(obviously this requires the use of an OTK track bar mount for the axle and an outboard track bar mount for the frame. the center link heims have large grade8 washers and are slightly clocked so there is no tierod roll that is common with some inverted T setups. also to do this i used a TJ pitman arm to get the angles how i wanted
OTK Inverted T setup and the track bar and drag link are the same length and angle(within 1.5degrees) .(obviously this requires the use of an OTK track bar mount for the axle and an outboard track bar mount for the frame. the center link heims have large grade8 washers and are slightly clocked so there is no tierod roll that is common with some inverted T setups. also to do this i used a TJ pitman arm to get the angles how i wanted
Last edited by N20jeep; 06-24-2013 at 07:32 PM.
Trending Topics
06-24-2013, 07:47 PM
#8
CF Veteran
Join Date: Jul 2011
Location: Warren, Pa
Posts: 2,164
Likes: 0
Received 1 Like
on
1 Post
Year: 97
Model: Cherokee
Engine: 4.0L
heres mine. 1.5x.25 DOM tubing and 7/8" Ruffstuff Heims.
OTK Inverted T setup and the track bar and drag link are the same length and angle(within 1.5degrees) .(obviously this requires the use of an OTK track bar mount for the axle and an outboard track bar mount for the frame. the center link heims have large grade8 washers and are slightly clocked so there is no tierod roll that is common with some inverted T setups. also to do this i used a TJ pitman arm to get the angles how i wanted
OTK Inverted T setup and the track bar and drag link are the same length and angle(within 1.5degrees) .(obviously this requires the use of an OTK track bar mount for the axle and an outboard track bar mount for the frame. the center link heims have large grade8 washers and are slightly clocked so there is no tierod roll that is common with some inverted T setups. also to do this i used a TJ pitman arm to get the angles how i wanted
06-24-2013, 07:55 PM
#9
CF Veteran
Join Date: Jan 2008
Location: LI, NY
Posts: 3,671
Likes: 0
Received 8 Likes
on
8 Posts
Year: 1998
Model: Cherokee
Engine: 4.0, bolt ons for days...

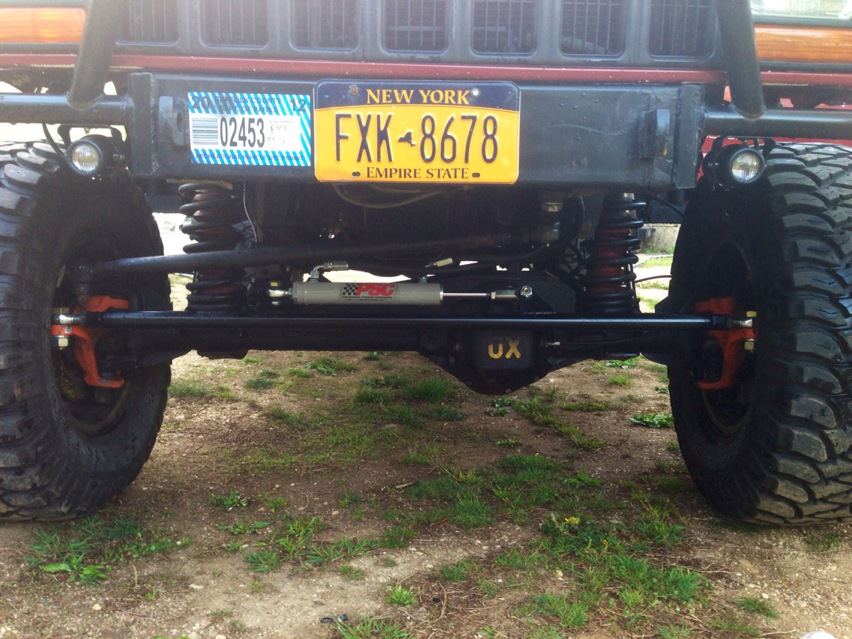

go big or go home. 8 lug ford 44 reids with pass side hi steer arm for true crossover. 7/8" heims on the tie rod, high angle GM 1 ton drag link ends on the drag link. you can run high steer on certain 5 lug knuckles, im not sure which.
(this pic has the old, incorrect ends on the drag link)
(this pic has the old, incorrect ends on the drag link)
06-24-2013, 08:10 PM
#10
CF Veteran
Join Date: Jul 2011
Location: Warren, Pa
Posts: 2,164
Likes: 0
Received 1 Like
on
1 Post
Year: 97
Model: Cherokee
Engine: 4.0L
go big or go home. 8 lug ford 44 reids with pass side hi steer arm for true crossover. 7/8" heims on the tie rod, high angle GM 1 ton drag link ends on the drag link. you can run high steer on certain 5 lug knuckles, im not sure which.
(this pic has the old, incorrect ends on the drag link)
(this pic has the old, incorrect ends on the drag link)
06-25-2013, 07:02 AM
#13
06-25-2013, 10:03 AM
#15
CF Veteran
Join Date: Feb 2012
Location: Buffalo, NY
Posts: 1,222
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
Not to hijack the thread, but check out WNY 4x4 Club in Facebook. We're the largest and most off road active group in the area with a good amount of XJ owners. We've got some people considering Whispering Pines in the next couple weeks, and a group with the Wrangler club going to another park in Savona soon.
