D30HP cut and turn inner "C" better steering
#16
Junior Member
Thread Starter

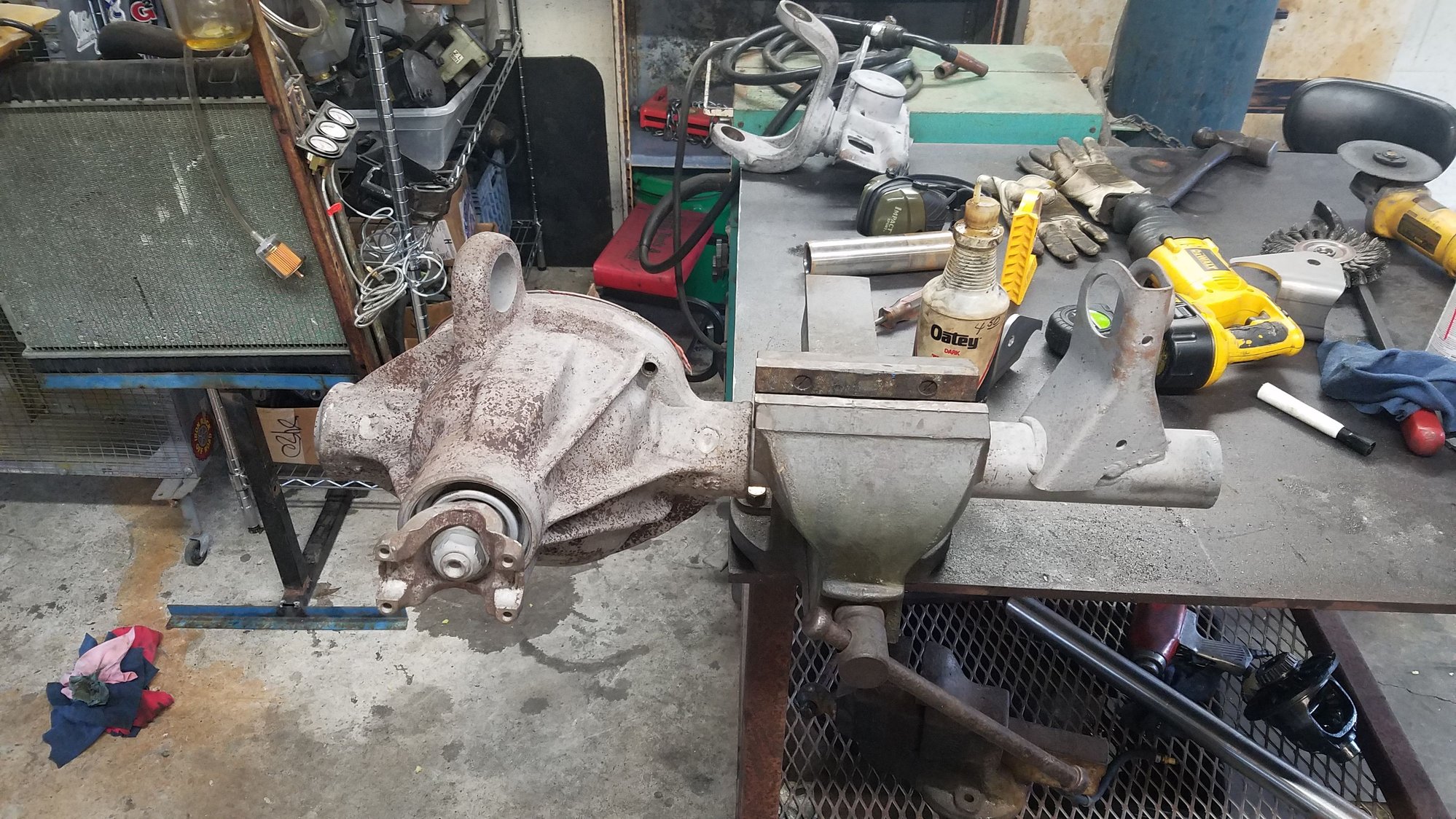

That's exactly my plan. I'm going to cut the pumpkin side of the spring perches so everything is rotated and correctly positioned, sway mounts, track bar mount, spring buckets. I believe I have bent inner C's now. I plan on measuring, cutting the tubes off inside of the spring buckets, cutting the tubes off my disconnect axle housing ahead of the cast in portion placing these on the non-disconnect housing and weld in. Basically I should be able to turn to not so good axles into one better one with correct angles. Picked up Wj knuckles and Akebono brakes yesterday for $40 so thats going to happen too.
#17
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
That's exactly my plan. I'm going to cut the pumpkin side of the spring perches so everything is rotated and correctly positioned, sway mounts, track bar mount, spring buckets. I believe I have bent inner C's now. I plan on measuring, cutting the tubes off inside of the spring buckets, cutting the tubes off my disconnect axle housing ahead of the cast in portion placing these on the non-disconnect housing and weld in. Basically I should be able to turn to not so good axles into one better one with correct angles. Picked up Wj knuckles and Akebono brakes yesterday for $40 so thats going to happen too.
I doubt your C's are bent unless you've been jumping it. Either way it's a better plan than actually cutting and turning your C's (too much grinding for my lazy butt). Running those inner sleeves like a jig would make it practically idiot proof. If you plan to wheel this rig hard you should really be adding a beefy track bar bracket (wouldn't you have to anyway with the WJ knuckles?), upper control arm mount, and lower control arm mounts, and possibly a truss. All that factory stuff will bend easily under stress

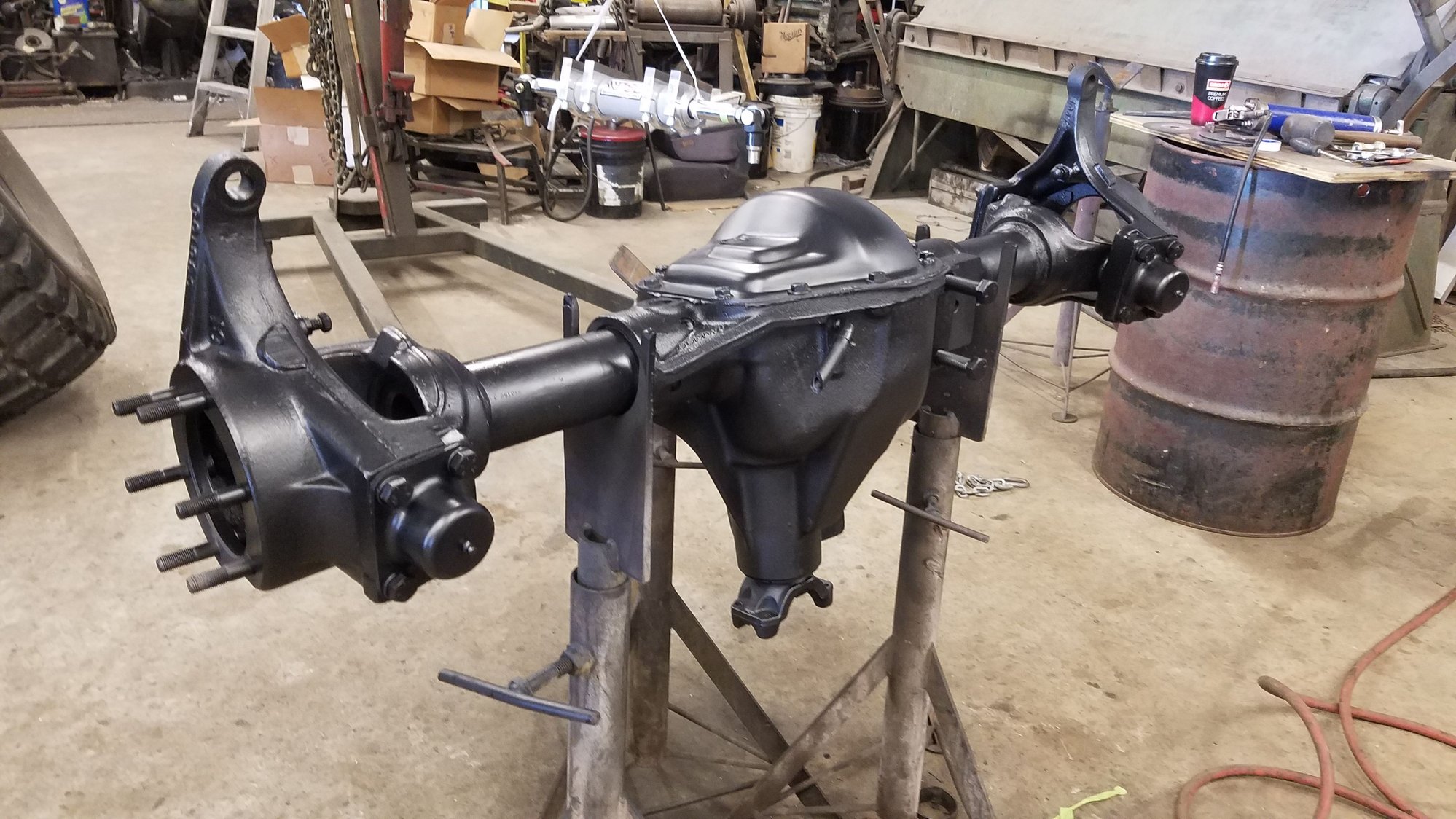

anyway sounds like a fun project man post pics when you're done
#18
CF Veteran
Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,679
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
How tight of a fit are the sleeves? If there is ANY slop between the sleeve and the axle tube, you should likely use a alignment bar to keep the axle straight. I commend you on taking on the task. I follow your logic. More headache than I wanted to deal with.
#19
Junior Member
Thread Starter
They are the full length of the axle tube and are machine fit. Requires lots of big sledgehammer work.
#20
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
here's a video of someone doing an installation of the sleeves. Not a bad deal for $130. People chop/rotate/extend tubes using sleeve/slugs all the time its very common
#21
Junior Member
Thread Starter
here's a video of someone doing an installation of the sleeves. Not a bad deal for $130. People chop/rotate/extend tubes using sleeve/slugs all the time its very common
https://www.youtube.com/watch?v=A6dgxUCKRtA
https://www.youtube.com/watch?v=A6dgxUCKRtA
