Cut and roll fender
#2
CF Veteran
Join Date: Jul 2012
Location: Andover, VT
Posts: 2,983
Received 240 Likes
on
184 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L
The back you have to cut and fold because it is two pieces of sheet metal welded together. If you straight cut it then your fender will be separate from the wheel well.
The front you can just cut, but I did the same technique just so I didn't have a super sharp edge to cut the tire up.
The front you can just cut, but I did the same technique just so I didn't have a super sharp edge to cut the tire up.
#4
Senior Member
Join Date: Mar 2011
Location: VA
Posts: 770
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee (XJ)
Engine: 4L, 6 cylinder, 190 hp, 225 ft lp torque
In the rear I ran bolts through the mini flares to draw the two pieces of sheet metal together. Then I trimmed the fenders at the mini flare and back filled the seam with expanding foam. The fronts I just trimmed at the mini flares.
#5
Junior Member
Join Date: Sep 2015
Location: San Marcos
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
what size tires/lift are you running? Sorry to OP
#7
CF Veteran
Under his (and others) profile picture you will see box that says what year his XJ is, if you click that box it will drop down a list of things about it such as lift and tires. If the box is accurate he is on 33s and about 5"s of lift, but he might be on 35s with how this picture was taken.
Trending Topics
#8
Senior Member
Join Date: Mar 2011
Location: VA
Posts: 770
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee (XJ)
Engine: 4L, 6 cylinder, 190 hp, 225 ft lp torque
Hey unidentifiedbomb, driving a cherokee in the north east is a good way to attract moisture and rust. (: The expanding foam is just around the seam, not in the cut and fold area behind or in front of the seam. Plenty of places for moisture to escape. Just offering another option for Yukon to consider.

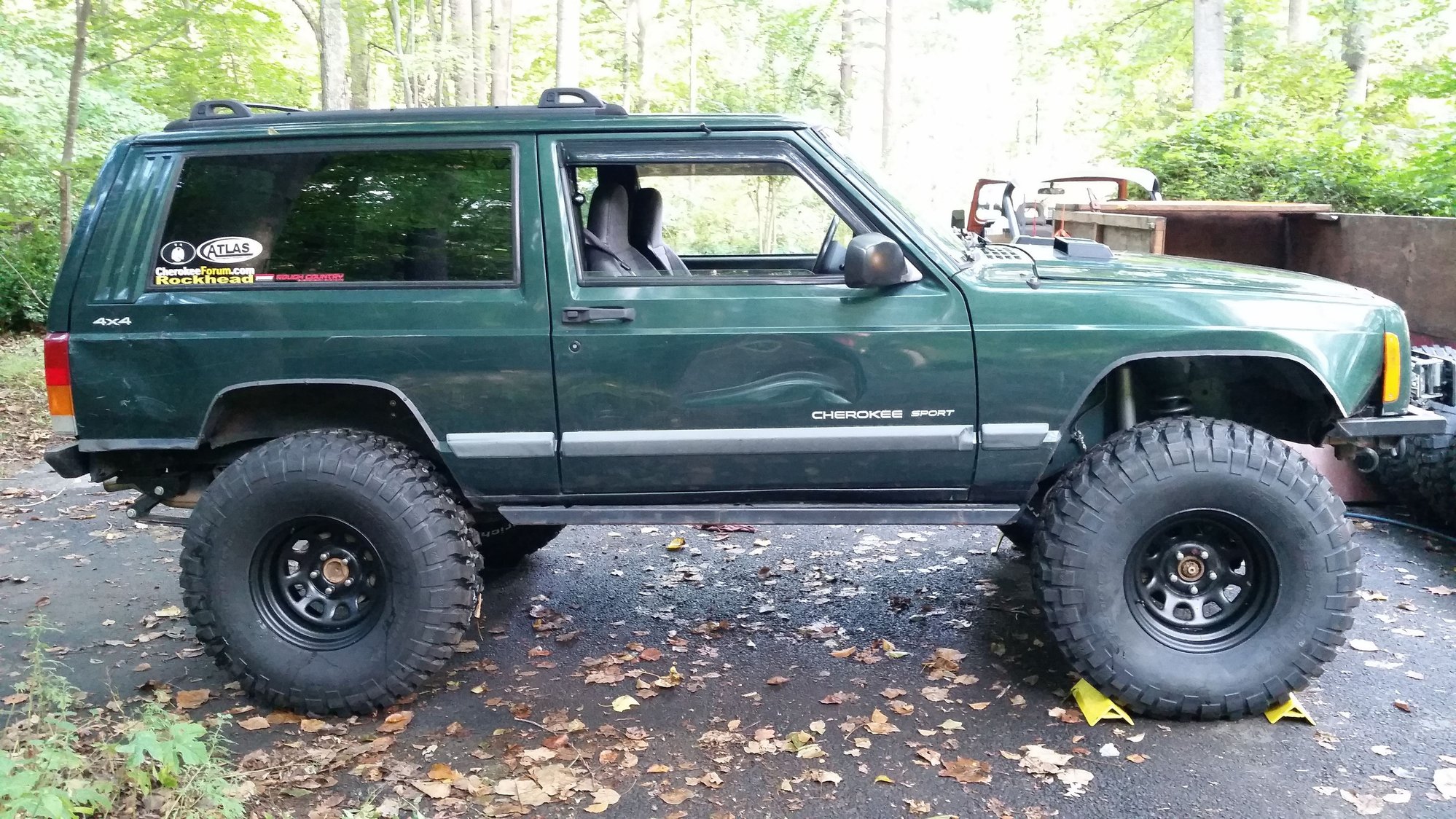

Thanks for the reminder to update my profile. Yes they are 35s with about 6 inches lift in the front and 5.5 in the rear.
Yukon, how have you decided to handle your fenders?
Thanks for the reminder to update my profile. Yes they are 35s with about 6 inches lift in the front and 5.5 in the rear.
Yukon, how have you decided to handle your fenders?
#9
Junior Member
Join Date: Sep 2015
Location: San Marcos
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Expanding foam is a good way to attract moisture/rust.
Under his (and others) profile picture you will see box that says what year his XJ is, if you click that box it will drop down a list of things about it such as lift and tires. If the box is accurate he is on 33s and about 5"s of lift, but he might be on 35s with how this picture was taken.
Under his (and others) profile picture you will see box that says what year his XJ is, if you click that box it will drop down a list of things about it such as lift and tires. If the box is accurate he is on 33s and about 5"s of lift, but he might be on 35s with how this picture was taken.
Did not know that thank you that is convenient.
#10

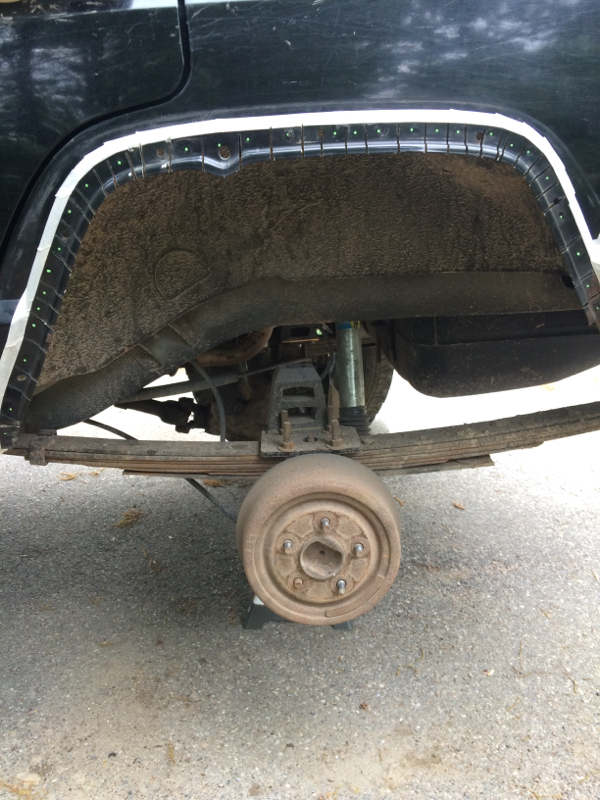

So it ended up i had to cut the rear fender out because it was rusted underneath the flares, i will do the bit of expanding foam and am going to use bedliner for the rocker panel tonight and will upload pictures after my completion!
#12
Senior Member
Join Date: Mar 2011
Location: VA
Posts: 770
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee (XJ)
Engine: 4L, 6 cylinder, 190 hp, 225 ft lp torque

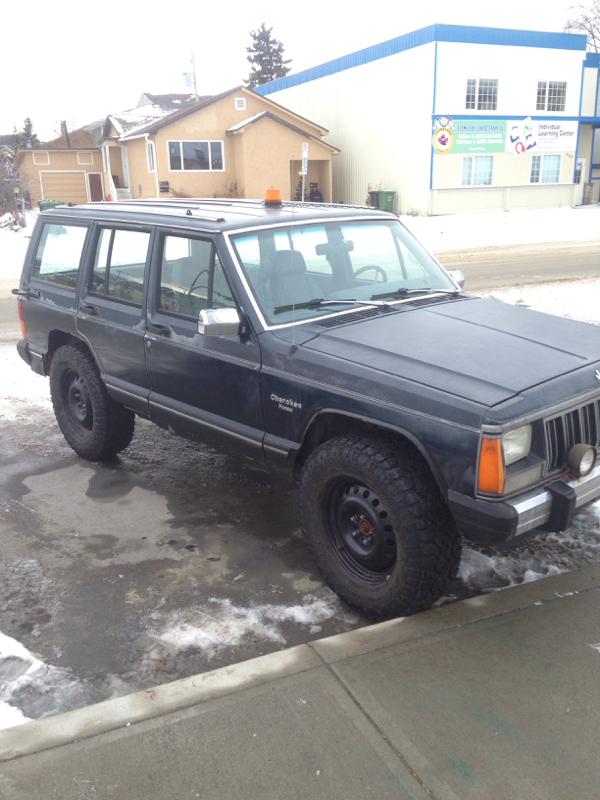

The front looks nice and smooth. It looks like in the rear you had to cut above the mini flare. How are you holding the outer and inner panels together?
Edit. Forgot to ask, where are you that there is snow on the ground already?
Edit. Forgot to ask, where are you that there is snow on the ground already?
