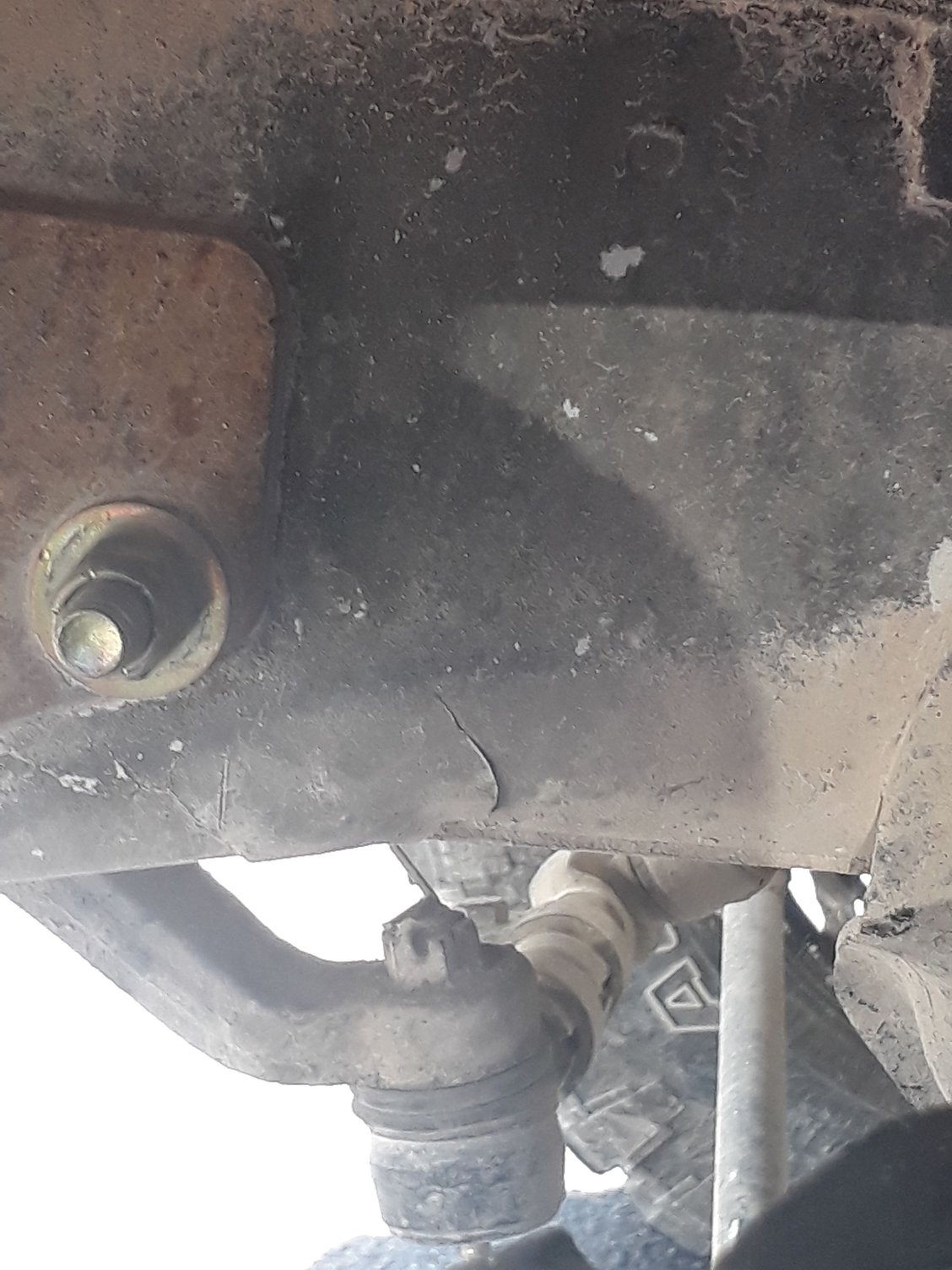

So my frame had cracked on what apears to be around the steering box area. But im having dome difficulty. As far as going the best approach to weld and box in the cracks, and part of the frame. Mostly because I am already running unibody frame tie ends. From my front winch bumper. So i want you guys to give me some input on the best solution. Thanks
Will work with the durango steering box or the stock XJ steering box.
You get it all...inner plate, outer repair plate, and sleeves/bolts to avoid crushing the frame.
Once that is all installed, then you can weld up the cracks on the bottom.
Wouldn't it be best to weld up cracks first and then throw that on? And then weld them up on top of it? But will that kit interfear with the tieend brackets for the bumper?
a bolt on steering box kit definitely helps, but it doesn't do much to stop the frame from twisting. and Freegdr is right a kit that has sleeves going through is going to be the best option. Here's what I had to do, keep in mind this is AFTER frame plates and a steering box plate. What you need is a good track bar brace and steering box brace to relieve some of the pressure going into your frame caused by the box and axle. The steering brace kits were a bit pricey for my taste so I spent a night with the welder and a sheet of 1/8" and a couple other materials. it's not pretty but I never had a problem again!
if you don't have access to a welder then I think ironman 4x4(?) and some other companies offer options for bracing. braces will get you much farther than sandwiching the frame
repairing one of the cracks by drilling a hole at either end of it to stop it from spreading. Then digging it out a little with an angle grinder, then filling with weld
My sons XJ had that problem ended up taking to a professional welding shop for the repair, that was 4 yrs ago. I was impressed with the quality of prep/welding that they had done for it, cheap no quality yes.
