Coolant Filter Install Write-Up
This past weekend I overhauled my cooling system as preventative maintenance. To keep the system fresh over the coming years I decided to install a bypass filter in the system.
The idea and know-how came from this thread by dieselenthusiast on NAXJA:
Coolant Filter install - 2000 XJ
as well as this addendum by AZjeepin1:
Writeup: 4.0 Coolant Filter Install addendum
I mimicked dieselenthusiast's filter head placement but I plumbed it differently.
The filter head uses 3/8 NPT fittings which I feel are to small to have 100% of the system's coolant flowing through it at once. Because of this, I decided to plumb my filter by using tee fittings off of the heater hose.

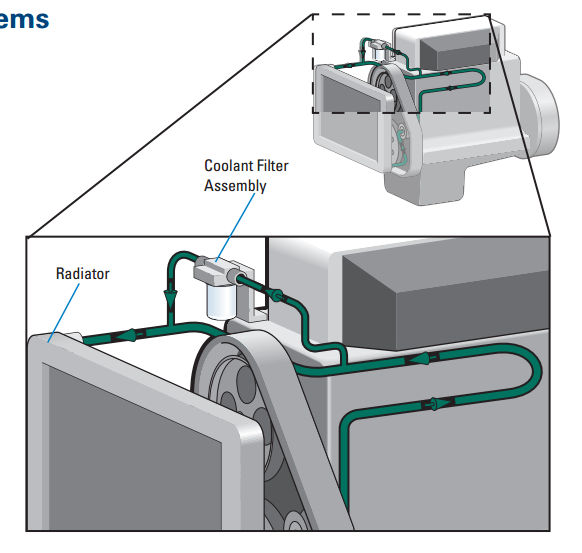

I contacted Donaldson filters and asked why every filter head on the market uses such small ports. They informed me their filters are not designed to handle the full flow of the coolant. They are intended to only filter about 10% of the flow at a given moment. They sent me a pdf regarding their coolant filtration systems for fleet trucks which contained this image:
These are the parts I ordered to get me started:
These are the instructions that came with the filter head. I took used them as guidelines, more or less. It says to mount the inlet at high pressure and outlet at low pressure. I didn't feel comfortable bypassing any part of the system so I decided to come off of the heater hose and go back into it.
Following the ideas of the other two, I mocked up the filter head in its location behind the front cross-member and decided how I wanted to plumb off of it.
The plumbing did not go exactly as I had planned. NPT (national pipe thread) uses tapered threads that are designed to have an interference fit. This means that the fittings do not bottom out in the threads and you can tighten them as much as you need to orient the fittings in the proper direction. I did not know this at first. I tightened everything up worked with whatever direction the fittings came off at.

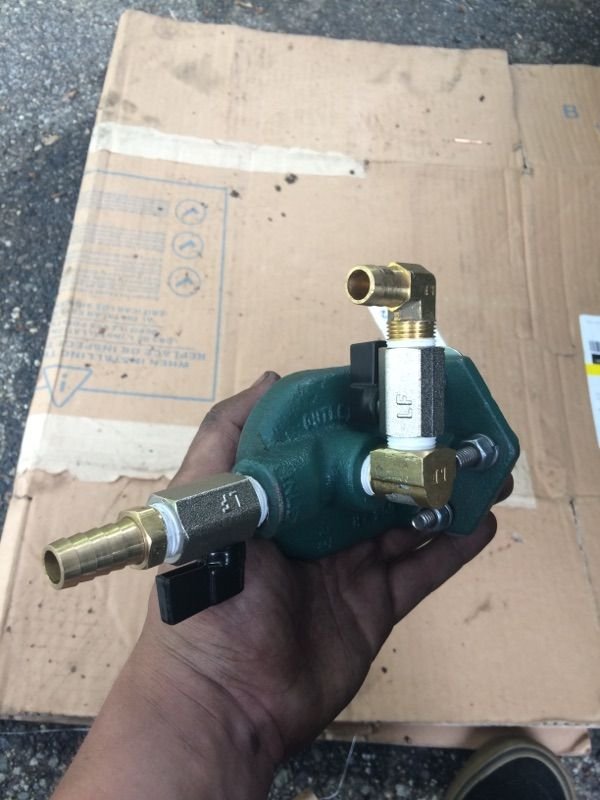

I ended up using:
6' - 1/2 ID Heater Hose
1 - 3/8NPT Male - Female 90 Elbow
1 - 3/8NPT Male - 1/2 Barb 90 Elbow
1 - 3/8NPT Male - 1/2 Barb Straight
2 - 3/4 - 3/4 - 1/2 Barb Tee
Teflon Thread Sealing Tape
and a zillion misc hose clamps. Good luck with the sizes of those, I seemed to have the hardest time. Some are new constant tension style, some are worm style, some are random ones I had kicking around. The guy at the hardware store actually laughed at me when I walked in there for the third time that day.
When it was all together I was pleased to see nothing was leaking, miraculously. After the system was up to temp the inlet hose was hot but the outlet was only lukewarm. I realize the placement and plumbing of the filter is not the most efficient and is probably not getting much flow through it. I plan to run this filter and coolant for about a year then cut the filter open and see if it what it captured. If anything, this setup gives an extremely easy way to drain and the coolant.
I'd love to hear any and all feedback on this, as well as any constructive criticism. When I first stumbled upon this idea I was surprised at the small amount of people that have done this. With some more people getting on board I think we could come up with an even better design that would get better flow and not obstruct a hidden winch.
The idea and know-how came from this thread by dieselenthusiast on NAXJA:
Coolant Filter install - 2000 XJ
as well as this addendum by AZjeepin1:
Writeup: 4.0 Coolant Filter Install addendum
I mimicked dieselenthusiast's filter head placement but I plumbed it differently.
The filter head uses 3/8 NPT fittings which I feel are to small to have 100% of the system's coolant flowing through it at once. Because of this, I decided to plumb my filter by using tee fittings off of the heater hose.
I contacted Donaldson filters and asked why every filter head on the market uses such small ports. They informed me their filters are not designed to handle the full flow of the coolant. They are intended to only filter about 10% of the flow at a given moment. They sent me a pdf regarding their coolant filtration systems for fleet trucks which contained this image:
These are the parts I ordered to get me started:
These are the instructions that came with the filter head. I took used them as guidelines, more or less. It says to mount the inlet at high pressure and outlet at low pressure. I didn't feel comfortable bypassing any part of the system so I decided to come off of the heater hose and go back into it.
Following the ideas of the other two, I mocked up the filter head in its location behind the front cross-member and decided how I wanted to plumb off of it.
The plumbing did not go exactly as I had planned. NPT (national pipe thread) uses tapered threads that are designed to have an interference fit. This means that the fittings do not bottom out in the threads and you can tighten them as much as you need to orient the fittings in the proper direction. I did not know this at first. I tightened everything up worked with whatever direction the fittings came off at.
I ended up using:
6' - 1/2 ID Heater Hose
1 - 3/8NPT Male - Female 90 Elbow
1 - 3/8NPT Male - 1/2 Barb 90 Elbow
1 - 3/8NPT Male - 1/2 Barb Straight
2 - 3/4 - 3/4 - 1/2 Barb Tee
Teflon Thread Sealing Tape
and a zillion misc hose clamps. Good luck with the sizes of those, I seemed to have the hardest time. Some are new constant tension style, some are worm style, some are random ones I had kicking around. The guy at the hardware store actually laughed at me when I walked in there for the third time that day.
When it was all together I was pleased to see nothing was leaking, miraculously. After the system was up to temp the inlet hose was hot but the outlet was only lukewarm. I realize the placement and plumbing of the filter is not the most efficient and is probably not getting much flow through it. I plan to run this filter and coolant for about a year then cut the filter open and see if it what it captured. If anything, this setup gives an extremely easy way to drain and the coolant.
I'd love to hear any and all feedback on this, as well as any constructive criticism. When I first stumbled upon this idea I was surprised at the small amount of people that have done this. With some more people getting on board I think we could come up with an even better design that would get better flow and not obstruct a hidden winch.
