Boomerang shackles
08-24-2017, 07:29 PM
#1
Senior Member
Thread Starter
Boomerang shackles
Looks for pics of a lifted xj with shock shackle box with boomerang shackles. I have A 4.5 lift with full leafs and shackles hit the body and my buddy gave me a set of boomerang shackels to install. I know it's gonna lift it more that fine I wanna see what they look like if they are still going to hit the body or not. I will be adding a spacer or bigger coil up front to make up the lift that it will need
08-25-2017, 08:49 AM
#5
Beach Bum

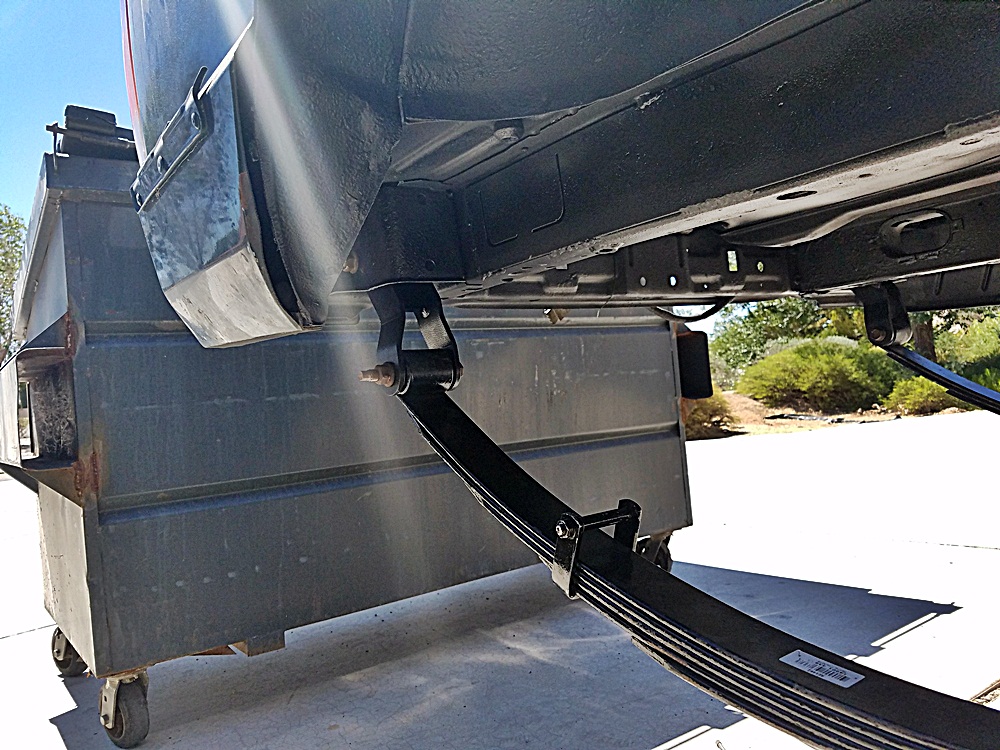

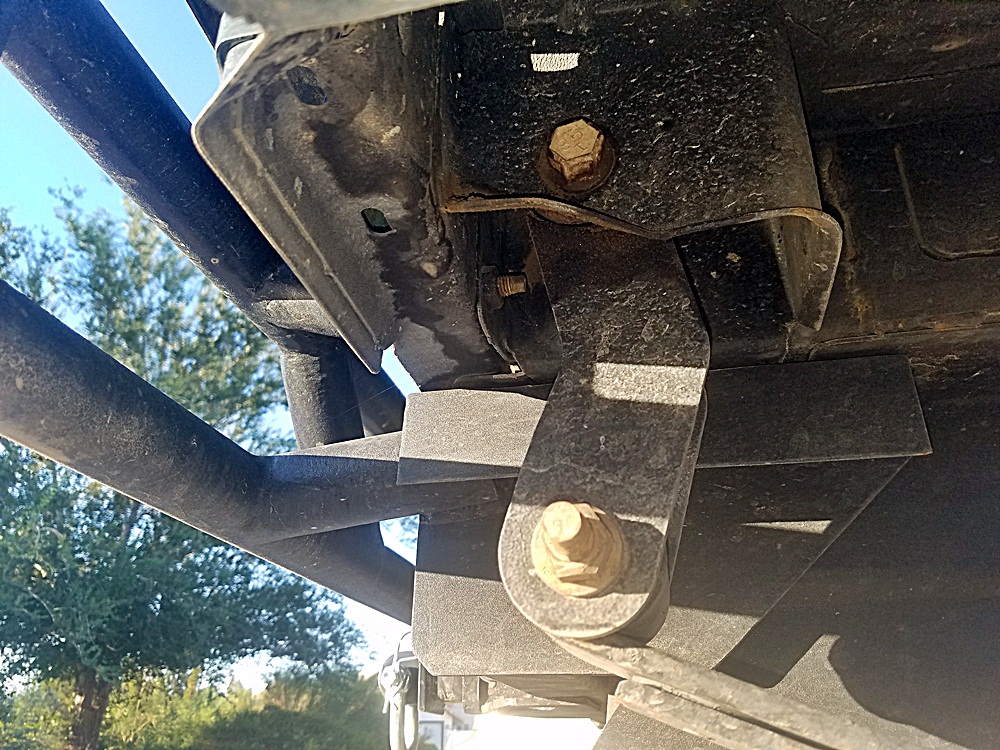

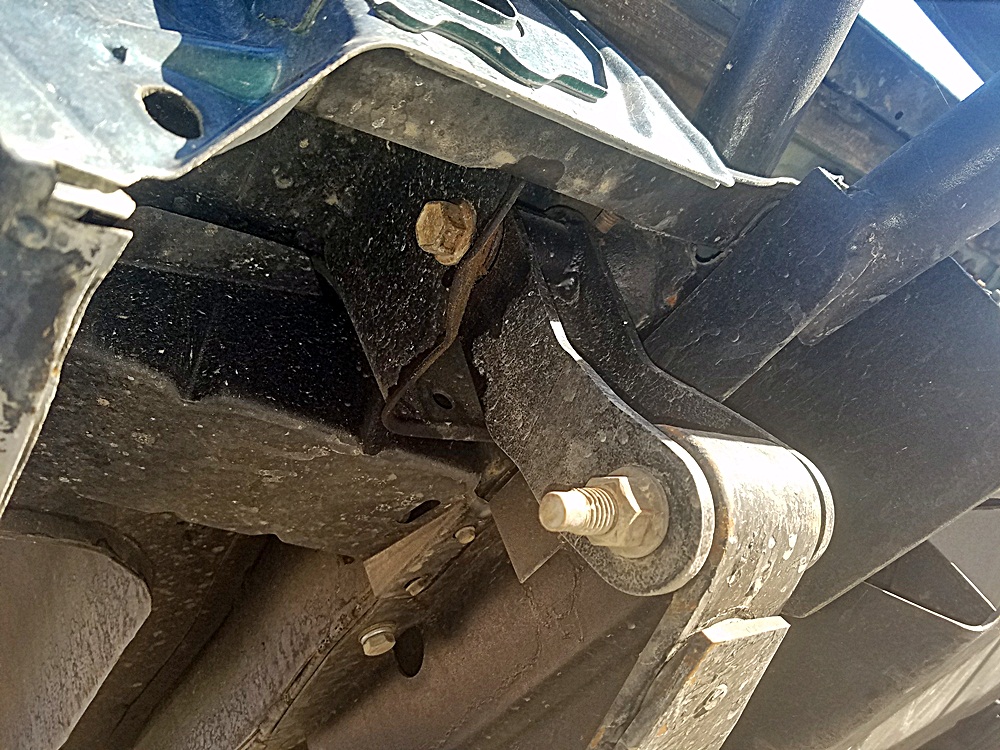

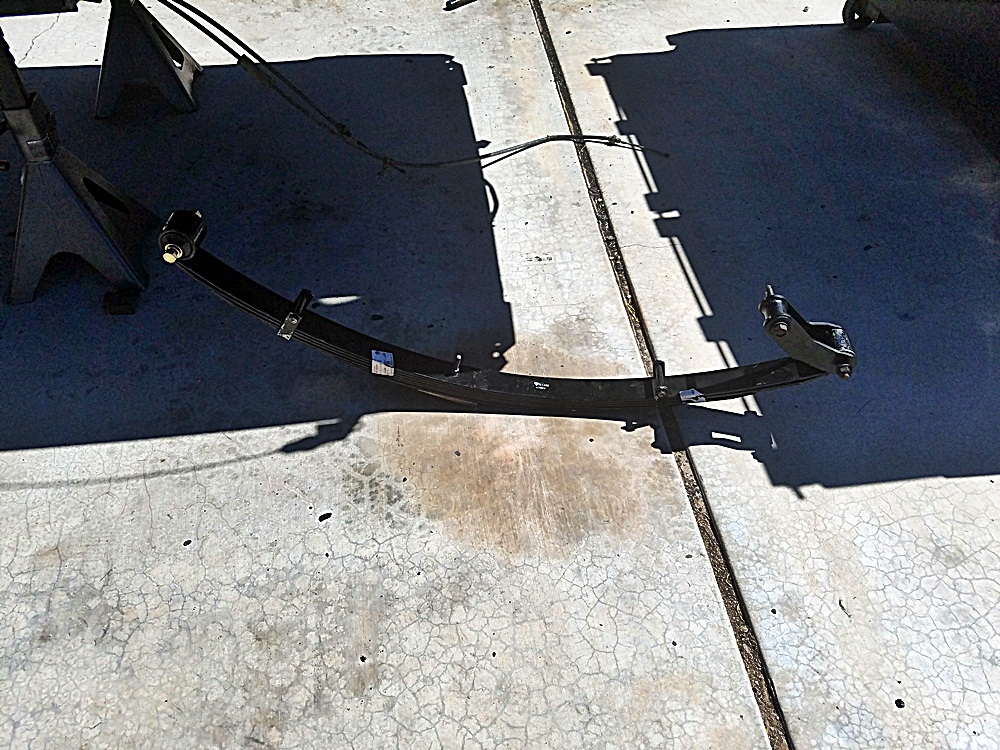

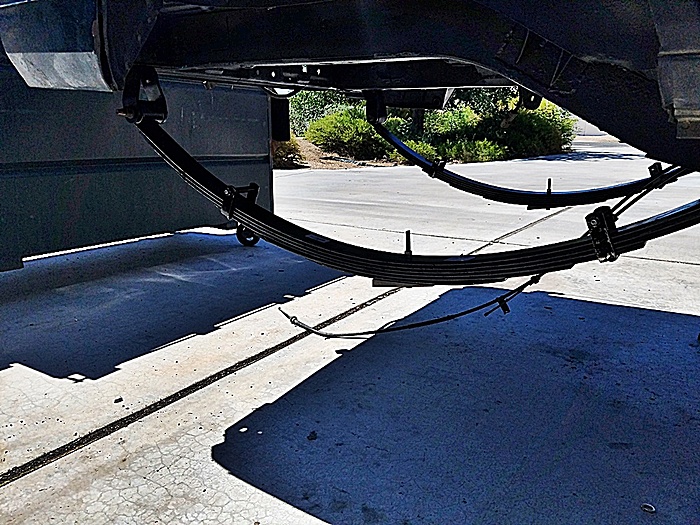

The purpose of longer-than-stock boomerang shackles is to allow more fore-aft movement of the shackle, required for lift springs, especially 4.5" springs. The bend in shackle helps avoid contact with chassis. The bumper bolts are a different story and may require trimming. These are Clayton 3-way shackles on BDS 3.5" leaf springs, total lift = between 4.5 - 5". Divide added height of shackle by half, for ballpark of lift height that will be added to jeep.
Last edited by SteveMongr; 08-25-2017 at 11:01 AM.
08-25-2017, 09:14 AM
#6
::CF Administrator::

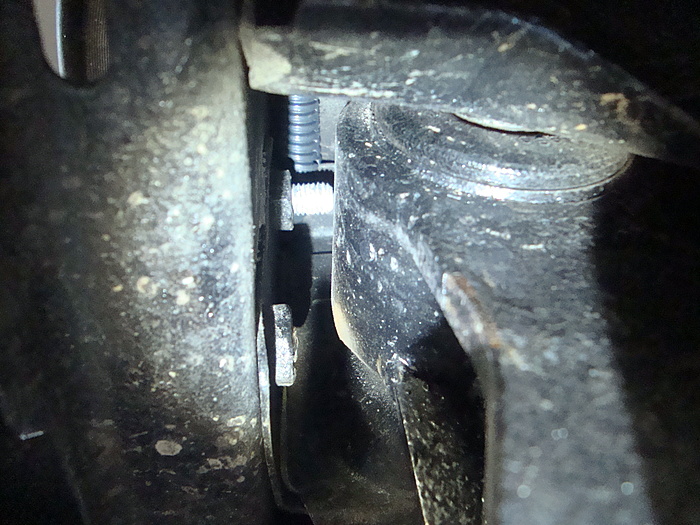

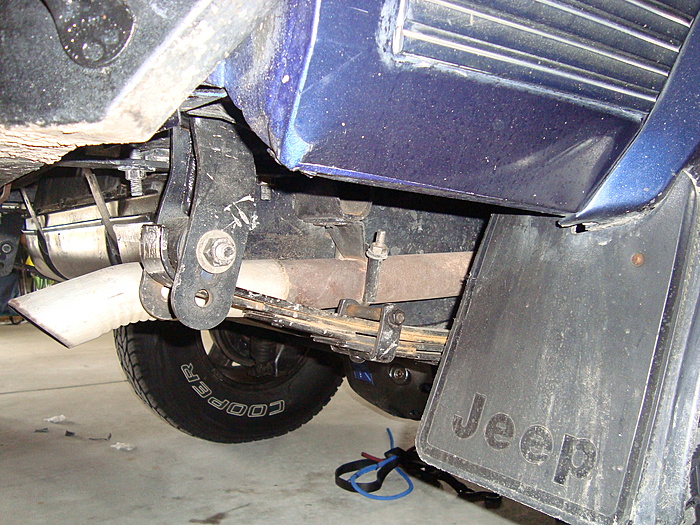

The purpose of boomerang shackles is to avoid contact with chassis. The bumper bolts are a different story and may require trimming. These are Clayton 3-way shackles on BDS 3.5" leaf springs, total lift = between 4.5 - 5". Divide added height of shackle by half, for ballpark of lift height that will be added to jeep.
Trending Topics
08-25-2017, 10:43 AM
#8
::CF Administrator::
Looks like the IRO shackles add 1-1.5" of lift. You should be okay if you level the front...either new springs or a spacer. Make sure your shocks have enough travel, that your brake lines lengths are sufficient, and hopefully your pinion angle is ok. Do you have shims or an SYE installed?
08-25-2017, 09:29 PM
#9
Senior Member
Thread Starter
I have a sye and drive shaft. Shims I got that came with the lift might have to be changed tho. Also I was gonna do the shackels see how much lift it gives and order springs. Brakes lines I'm good. I'm wondering if I should ditch the stock pitman arm for a RE one
08-25-2017, 09:48 PM
#10
CF Veteran
Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,679
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
The drag link and track bar need to be parallel to prevent bump steer and other issues. I used a drop pitman arm when I installed a double shear track bar with drop bracket.
03-08-2018, 08:38 PM
#12
CF Veteran
Join Date: Jan 2016
Location: Newport News, VA
Posts: 1,242
Likes: 0
Received 38 Likes
on
37 Posts
Year: 96 & 88 4 dr Cherokees
Boomerangs give you clearance to the bumper/bdoy, but don't change the shackle angle sadly.
Those shackle angles don't look any better than stock.....how does it ride ?
Those shackle angles don't look any better than stock.....how does it ride ?
