looking to get in touch with aussie rep i have a d30 hp that i am installing and the pin to spacer gap is .008 my problem is the gap where the springs are is like a 1/4 inch , new case and 456 gears (installed 3/12) with under 100 miles on gears . I,m missing something but i cant see what that is ... Any thoughts would be helpful . thanks



Did u put your stock shims back in? The ones that are on the spider gears



no did not... just the thrust washers on the axle gear

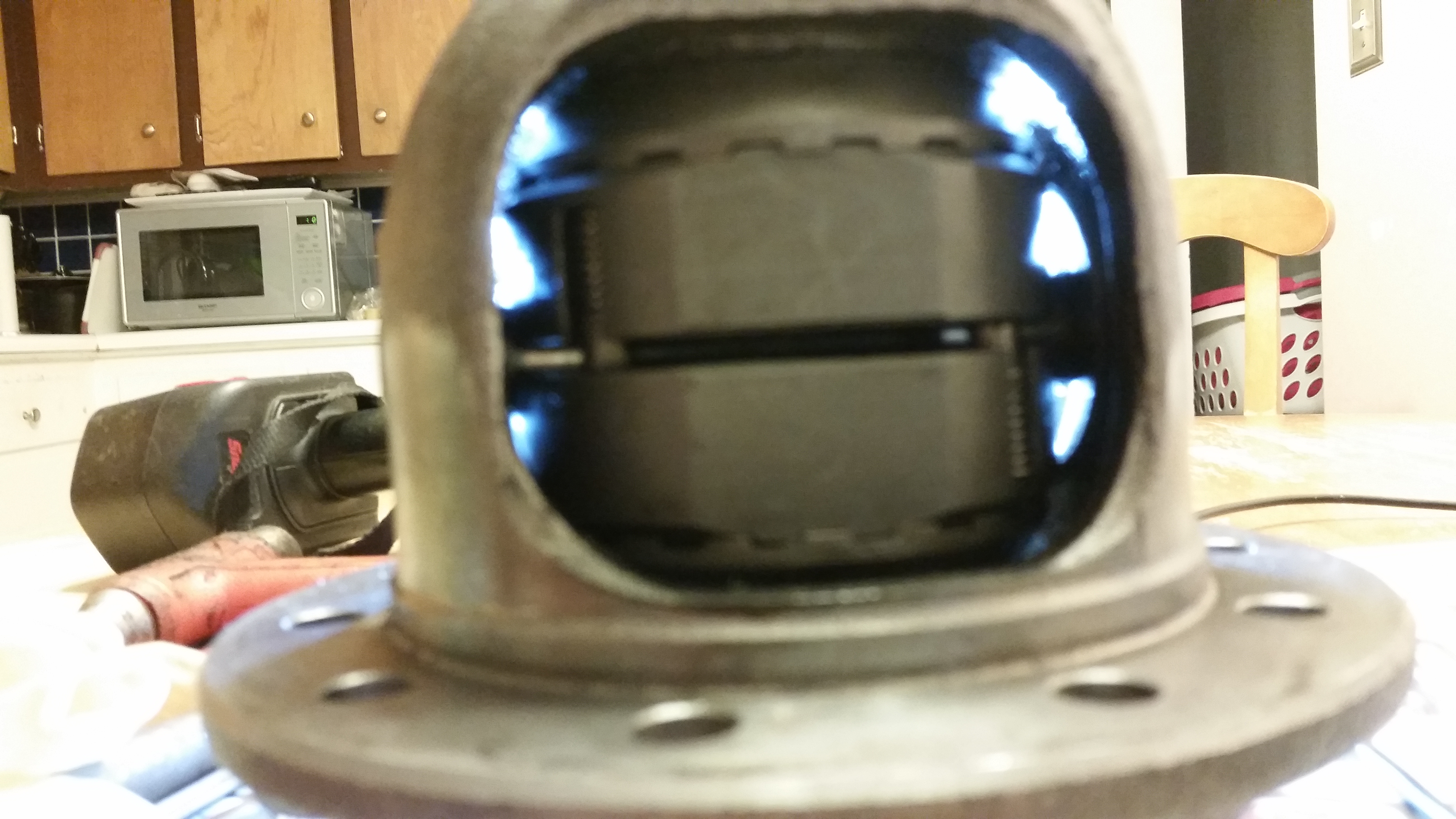

Looks normal from here. This picture is an Aussie in an 8.25.



Steve your pic looks like the cam gears are not engaged and the po's pic they are. That would add a bit more gap if they were engaged. I don't know though, just an observation. Where's our Assuie vender ?



Center gap is .137 with 5 feeler gages spec is min ,145 close but not bullseye.



Yes, that is why the gap looks a bit smaller, figured it was still a good reference.
Her name is Cora, president of Torque Masters https://www.cherokeeforum.com/member...locker-100787/



lol went with a digital caliper and squeased out grease got .013 more room that puts me in the green. Thanks all !!.



I didn't do all the measurements, I put it in I'd figure it would work or it wouldn't. mine worked so I left it alone. Probably not recommended



lol i almost went with that ...but to much cash if major problem / explosion happen.



Not confirming the gaps voids the two year warranty.



What warranty .... had unit for 3 yrs on shelf...lol all my off road friends keep giving me negative feed back on the driving issues , comments like you wont want to drive it 50 miles it,ll be sooo bad. Well shame on me for not doing what i wanted to.



Why would they say that? I do not have any driving issues with the rear locked. Daily driver. I cannot do an auto-locker up front because I use 4 Full-Time regularly. Will need a selectable locker.



most of the bad press was due to my choice of locking the frnt first



Hi Guys!

We spoke on the phone yesterday, got it all cleared up

I try to check the forums regularly, but if you need immediate help, call us at the office or email me directly. 585-723 14 89 or Cora @ Aussie Locker.com
