All Lift & Tire questions go here!!!

Thread Tools

Search this Thread

Old Feb 22, 2013 | 08:13 PM
  #14641
EagleXJ's Avatar
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

How much up travel is decent? I like the flex I get now with 31" and was thinking I could just regain what I lose with bigger tires by trimming up.
Reply
Old Feb 22, 2013 | 08:15 PM
  #14642
EagleXJ's Avatar
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by jamorrowxj
just gonna jump in on this thread and ask anyone with a 3''-3.5'' lift with 35s to post pics of their xj and explain what they had to do to make it work. i know its rare but its been done and i want to do it and do it right.
Read this thread. The guy got 37"s on a 2.5" lift.
Reply
Old Feb 22, 2013 | 08:16 PM
  #14643
EagleXJ's Avatar
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Ha ha forgot to attach the link. Sorry. https://www.cherokeeforum.com/f67/lo...24-12-a-32980/
Reply
Old Feb 22, 2013 | 08:20 PM
  #14644
Sorenabel's Avatar
Member

Joined: Jan 2012
Posts: 156
Likes: 0
From: Medford OR
Year: 1990
Model: Cherokee
Engine: 4.0 6cyl
Default

Anyone know of some decent 35/9.50-10.50/ 15 mud terrain tires?
Reply
Old Feb 22, 2013 | 08:24 PM
  #14645
theyammieguy's Avatar
Senior Member

Joined: Apr 2009
Posts: 791
Likes: 0
From: Houston Texas
Year: 1996
Model: Cherokee
Engine: I6
Default

Originally Posted by EagleXJ
How much up travel is decent? I like the flex I get now with 31" and was thinking I could just regain what I lose with bigger tires by trimming up.
that's all you gotta do, just trim up a little. I didn't take a huge amount off my fenders.
Reply
Old Feb 22, 2013 | 08:25 PM
  #14646
EagleXJ's Avatar
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Could you post a few pictures? The cut stock flares I saw looked pretty bad.
Reply
Old Feb 22, 2013 | 08:26 PM
  #14647
Sorenabel's Avatar
Member

Joined: Jan 2012
Posts: 156
Likes: 0
From: Medford OR
Year: 1990
Model: Cherokee
Engine: 4.0 6cyl
Default

Originally Posted by jamorrowxj
just gonna jump in on this thread and ask anyone with a 3''-3.5'' lift with 35s to post pics of their xj and explain what they had to do to make it work. i know its rare but its been done and i want to do it and do it right.
Lift it, buy the 35s. Then eyeball it and figure out how much you have to cut to fit them in there nicely with a little bit of upward flex and cut. And bumpstop!! Very important to bumpstop correctly. Read a lot before doing any of it really. Are you just trying to go Low Cog or what?
Reply
Old Feb 22, 2013 | 08:31 PM
  #14648
theyammieguy's Avatar
Senior Member

Joined: Apr 2009
Posts: 791
Likes: 0
From: Houston Texas
Year: 1996
Model: Cherokee
Engine: I6
Default

Originally Posted by EagleXJ
Could you post a few pictures? The cut stock flares I saw looked pretty bad.
Pictures of what?
Reply
Old Feb 22, 2013 | 08:40 PM
  #14649
Sorenabel's Avatar
Member

Joined: Jan 2012
Posts: 156
Likes: 0
From: Medford OR
Year: 1990
Model: Cherokee
Engine: 4.0 6cyl
Default

Originally Posted by EagleXJ
How much up travel is decent? I like the flex I get now with 31" and was thinking I could just regain what I lose with bigger tires by trimming up.
All Lift & Tire questions go here!!!-image.jpg
Reply
Old Feb 23, 2013 | 09:02 AM
  #14650
Eagle564's Avatar
Senior Member

Joined: Nov 2012
Posts: 521
Likes: 0
From: Oregon
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Sorenabel
Pppfffffffttttt only 37's. Definetely needs atleast 40's on 3"s.
Reply
Old Feb 23, 2013 | 09:09 AM
  #14651
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by jamorrowxj
just gonna jump in on this thread and ask anyone with a 3''-3.5'' lift with 35s to post pics of their xj and explain what they had to do to make it work. i know its rare but its been done and i want to do it and do it right.
Research. It's rare like you said, but it's been done. I'm giving you a vague answer because if you're still at the "I need to see it" stage of the project, you have more to learn that what I can consolidate into a post.

I say go for it if you want (I'm planning 35s with less than 3"), but read and understand what you're in for. Lift, wheels, tires, gears, maybe axles, plus steering and a Durango steering box to turn the new meats. Then comes the trimming and metal work.
Reply
Old Feb 23, 2013 | 09:38 AM
  #14652
letsgomuddin's Avatar
Senior Member

Joined: Nov 2009
Posts: 774
Likes: 7
From: Lowell, MI
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0
Default

I know its been discussed many times but the app search function finds nothing. I have what i would call bumpsteer and its annoying to say the least. Even straight roads its great i can let go of the wheel and it goes straight. Slightest bump and it darts one way or the other. 4" lift 33's have a drop pitman arm and have it alligned perfectly. No worn bushings or tie rods either. Only wild card is the trac bar. Its an oe one with a modified axle mount (not a drop bracket). Im not going to just throw a $150 trac bar on it to see no results so lets hear thoughts on my problem.
Reply
Old Feb 23, 2013 | 09:43 AM
  #14653
BNJeepsta's Avatar
CF Veteran

Joined: Jul 2011
Posts: 2,164
Likes: 1
From: Warren, Pa
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by letsgomuddin
I know its been discussed many times but the app search function finds nothing. I have what i would call bumpsteer and its annoying to say the least. Even straight roads its great i can let go of the wheel and it goes straight. Slightest bump and it darts one way or the other. 4" lift 33's have a drop pitman arm and have it alligned perfectly. No worn bushings or tie rods either. Only wild card is the trac bar. Its an oe one with a modified axle mount (not a drop bracket). Im not going to just throw a $150 trac bar on it to see no results so lets hear thoughts on my problem.
Could be the factory tie rod and 33's, but more than likely it's your "modified" axle bracket.
Reply
Old Feb 23, 2013 | 09:44 AM
  #14654
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by letsgomuddin
I know its been discussed many times but the app search function finds nothing. I have what i would call bumpsteer and its annoying to say the least. Even straight roads its great i can let go of the wheel and it goes straight. Slightest bump and it darts one way or the other. 4" lift 33's have a drop pitman arm and have it alligned perfectly. No worn bushings or tie rods either. Only wild card is the trac bar. Its an oe one with a modified axle mount (not a drop bracket). Im not going to just throw a $150 trac bar on it to see no results so lets hear thoughts on my problem.
Post a picture of your steering from directly in front of the Jeep so we can see your mounts and the relative angles of your track bar and drag link.
Reply
Old Feb 23, 2013 | 09:53 AM
  #14655
letsgomuddin's Avatar
Senior Member

Joined: Nov 2009
Posts: 774
Likes: 7
From: Lowell, MI
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0
Default

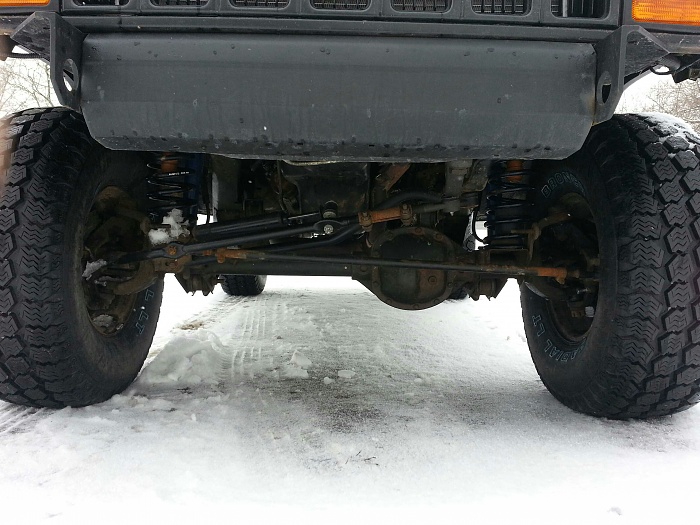

Best pic i could get at the moment.
Attached Thumbnails All Lift & Tire questions go here!!!-uploadfromtaptalk1361634775463.jpg
Reply
