No-lift shackle relocation boxes, just as the name implies, lets you relocate the shackles without providing added lift. They replace the stock shackle buckets and, in most cases, provide a stronger mounting point with more options.

The standard shackle relocation boxes mount INSIDE the factory shackle mounts and will add about 2.5" minimum of lift to the rear of the Jeep. It will still provide you with multiple options for shackle angle, but you're kind stuck with at least a little bit of lift.



Okay great, thanks for the claification and I don't mean to sound dumb by asking those dumb questions but I would much rather understand now instead of buying something only to be stuck with it and not work and waste my money.

I mean I don't know most cases the only dumb question is the one that you don't ask.....Thanks for your help!



I watched a video today showing the installation of the brackets too. I see you have to cut away the factory brackets to make room for the new and run bolts through into the trunk? At least that was the HD no lift brackets installation. I don't mind that but just wondering if every setup is similiar?



I first thought they were rubicon express but the front springs are black and i can't find any #s on them to reference to. I am looking to at least get the jeep level again and go with new springs in the back but was trying to figure out what i have first but no biggie. It maybe a mix and match setup but i will do some more research.



They could be just worn and I'm not sure if the RE springs have indentification numbers on them. Mine are new but at home and won't be able to check for you for a bit. Perhaps someoen here can look at thiers. Or just bite the bullet and buy all new setup lol.



That’s the no lift hd offroad boxes. Other boxes sometimes only mount with the factory bolt and maybe a couple other bolts. The hd offroad no lift boxes mount very securely. The reason I recommend the no lift ones is then you can get some lift from shackles and some lift from springs and have a lot more adjustability through the system, where as with the lift relocation boxes aiming for 4.5� of lift there isn’t as many combination options of shackle and springs to get where you want. It’s all doable, I just found for me the best combo was the no lift, shackles and the springs. Because with a lift spring and lift shackle you’ll end up at 4.5� of lift, but have no option to adjust shackle angle for proper suspension movement, at 4.5� with stock shackles and lift spring with lift shackle boxes the shackles won’t work because they’re too short and will hit the boxes, with lift shackles and relocation boxes there aren’t many spring options, you have to use a big shim for pinion angle, the springs will suffer, you will drag leaf springs and it’s just not great in my opinion. Like I said may work for you, may make you happy, but for me the best option was lift springs, lift shackles and no lift brackets for the most articulation.



I certainly don't mind the no lift relocation brackets. It will just require more work and cutting out the factory ones is all but honestly the video made it look simple enough. I'm sure a day long process with no interuptions but my own so we shall see.

So if I get the no lift relocation brackets and some shackles you recommend that I should go with 3.5" full leafs then? Since my front will be 4.5" that should level it out rather than try to put 4.5" full leafs on it. I know we went over this already but just trying to recap and make sure. Thanks again for your help.



What kind of shackles do you recommend with 3.5 RE leafs, no lift relocation brackets? I will add them to my list now and order everything in a couple weeks.



Remove it is duplicate posting

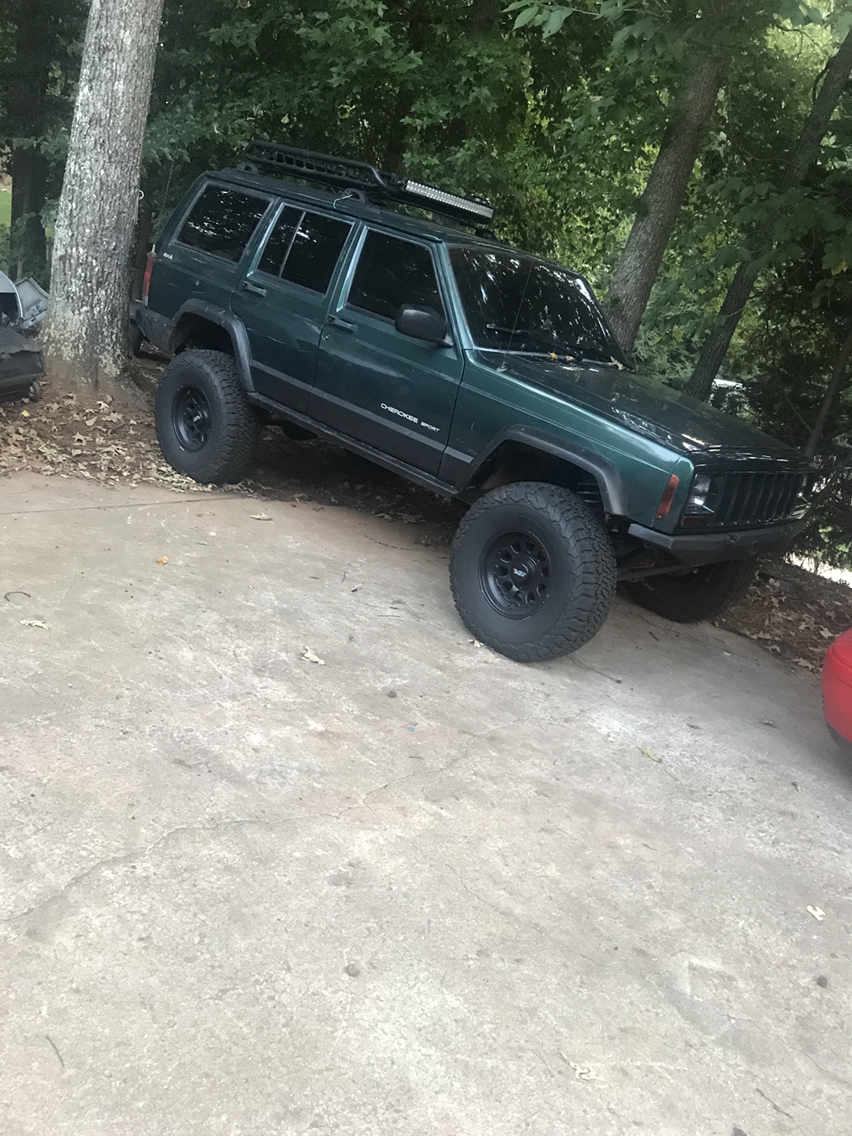

It is 100% up to you. I have 4.5� RE leafs and RE 1.25� lift shackles and I like the way my Cherokee sits. I don’t know how much weight you’ll have in the back on a regular basis, I don’t know if you’re towing with yours or not. Mine sits really well in my opinion. It has pretty good performance on the trail and the street. The no lift boxes don’t take too long to put in, I remember I started after dark and finished it the same night. Don’t know exactly how long, but doable and in my opinion worth it. again, here is mine with the setup above and I believe I have my subwoofer, and maybe 50lbs or so of tools in the trunk. I have a hard time telling people what the “should get� because it’s all case dependent and different people are happy with different looks. I am extremely happy with how mine turned out.



Oh I agree and if only there were a way to try on parts to see how you like them before you buy them!! Like going to the retail store and shopping for a pair of pants. Any ways I really do like the way yours sits and perhaps I will go with the setup you have and try it. I know each XJ is different so mine may not sit like yours but at least I can use it as a guide to what I would like it to look like. I also love th color on yours much more than my reddish color.



I actually plan to have some camping gear and the spare mounted on the back at some point. For now it can stay on the roof rack which is more center then placed on the rear. I feel at times I could have close to 50lbs of gear if not little more added so having the beafer back end suspension just might be a better option overall.



Also to be noted is the springs will sit high when you first install them and will take some time to break in. Some people accelerate this process by carrying around very heavy objects in the rear for a while like sand bags or bags of concrete or something. So even if it is a little higher than you would like at first it will probably settle in.



Defiantly good to know. If I can get things installed before winter is up I may drive it anyhow and run a few bags in the bag but that is certainly a good idea once everything is in place. I should be placing the order on leafs, shackles and no relocation brackets in a couple weeks.

After that I will finish collecting the stainless steel brake lines extended, lower adjustable control arms, track bar with bracket and shocks.

Lastly tires and then I should be ready to execute when everything comes in. I will keep the SYE on ready to be ordered as well but maybe I can get away with not putting one on at first. If I get any vibrations though I will be sure to order it and I plan to anyhow over time.



That last few more expensive items might have to wait until tax return such as tires and SYE. It has 32x11.5x15 on it now but previous owner did say it will need new tires. If I don't get to driving it the tires are no big deal because it will just sit in driveway until done. Still have family and full time job to attend to so the jeep will take time and my DD is my F350 so I don't need this on the road anytime soon.
