sorry for the late reply but that is how wide the rim is. It depends on what size tire you want to run. 31x10.50 or 33x10.50 are good on 7's 11.50's and wider you'll want 8's



3" and 31's is the most economical. Tire rack had em for 140ish a month or so ago. Check to see if you can get in store pick up, free shipping that way.

Get some armor, rockers most of all. Lca mini skids, cut n fold, diff armor, etc



Don't forget treadwright.com. You can get 31s for 98 a tire if you go with the wardens which are identical to BFG all terrains. Just make sure your steering and ball joints and such are good or you'll wear them out...but I guess that goes with any lifted vehicle



Well I tried to tap the hole to a 1/4-20. Got to the center pin and dulled my tap. That pin must be hardened steel?

I guess I will just drill it out to a 1/4" and put a new roll/spring pin in unless I can just use a bolt and nut with some lock tite?



Hey guys. I just bought my first XJ a few weeks ago. I got a 99 cherokee classic with about a 2" lift (I think with a taller soil spring and an AAL, but I'm not completely sure). Other than a towing bar and a trailer hitch, everything else looks stock to me. For now, I want to lift the front a little more and put bigger tires under it. I am also looking for some other necessary or recommended modifications to do. Here are my build plan so far and the questions I have.

1" coil spacer for front - Can I just install these with no problems or will I need to extended brake lines/sway bar links/etc?
Skid plates - Which ones do I need? Transfer case? Gas tank? Any others? What's the cheapest ones I can get for now? I will upgrade these once I start upgrading the drivetrain/suspension.
Bigger tires - I bought some 15" wheels with 3.75" backspacing. Now I just need the tires. I was thinking 31x10.5's... will these rub? Could I go up to 32's? What needs to be trimmed to ensure no rubbing? What about bump-stops and steering stops?
Sway bar removal/QD's - Because this will be my DD, I am confused about the best way to do this. I should keep the front sway bar for highway use, right? Does anybody make a QD kit for such a small lift? What about the rear sway bar? Can I just completely remove that?

Are there any easy upgrades that I am missing?



First off, WELCOME!!

You'll need longer shocks.
You can simply straighten out the hard line for the front brakes, don't forget to re-secure the mount though.
You can toss the rear sway bar.
Yes there are Quick disconnects available for your lift height.
http://www.seriousoffroadproducts.co...em-XJ-MJ-TJ-ZJ
The 3.75" backspacing is fine and you'll definitely need to trim to run a 32" tire.
Don't forget that your performance/fuel economy will be affected by jumping up to a taller tire. Start saving up for new gears, you'll be glad you did.



Thank you very much for the quick response. I didn't even think about shocks. How can I figure out what size shocks I can run? I have read that if I lengthen the bumpstops, I can run an even longer shock. Which would give me more droop? Would this require me to get even longer brake lines or control arms?

As for gears, I figured I would wait until I could afford new axles and lockers... do it all at once. I have read that the stock Dana 30/35 aren't strong enough. Is this true? Or could I just throw new gears and lockers in my stock axles?



The d35 is well known for being weak and not worth investing in.Look for a Chrysler 8.25" axle from a 97+ XJ. Snag the rear driveshaft from the donor rig as well.

The D30 is fine for the vast majority of XJ drivers.
The best way to determine the shocks you need is to remove all 4 from your rig and flex the suspension fully then measure between the mounting points for both exrended and collapsed lengths. Once those are known you can order the correct shock for your rig.

Bumpstops do one thing only, they limit up-travel. this keeps your tires from contacting anything in the wheel well or the fenders themselves. This also kwwps the tires from getting cut or otherwise damaged. The only thing you want touching your tires is the ground. Make sense?

Longer control arms won't do anything for you at your ride height except push the axle farther forward. You don't need longer, but adjustable arms are always a good choice. They will allow you to properly locate your front axle after installing a lift. Once again though, at your height.....you don't really need them.



I must have my information wrong about what axles I have. Mine is a 99... what axles are in mine?



Could be a D35, could be an 8.25".

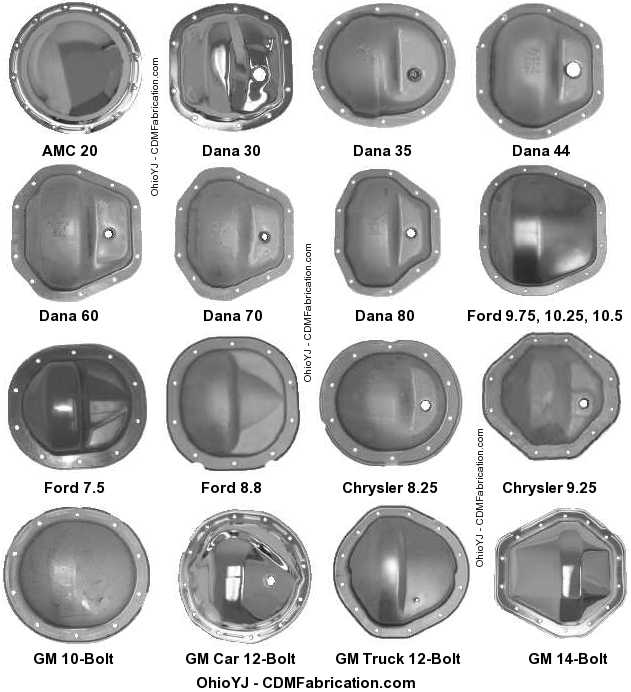

Compare your rear end to this helpful chart

Congrats on the xj purchase also!



Mine doesn't look like any of those, mine has a crack in it



Haha that's no good!



when will my speedometer not become accurate when i lift? Bigger tires or just in the lift alone?



As soon as you install any larger than stock tire.

Serious Speedo Gears <---<<< Clicky
